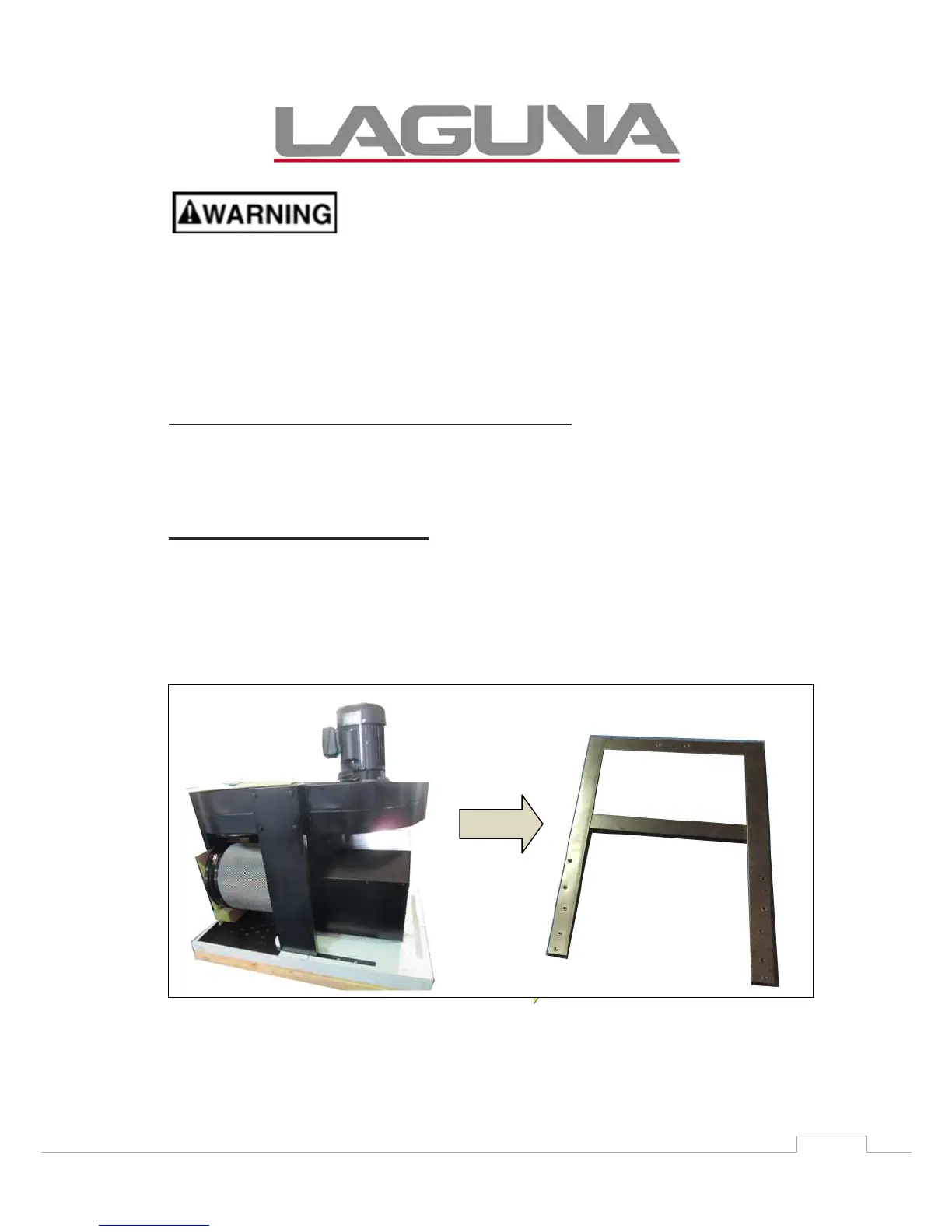

GENERAL TOOL ASSEMBLY
This step requires two adults. This 3HP Mobile Dust
Cyclone is heavy, be careful when lifting and handling it! Failure to comply
may cause serious injury and/or damage to the machine and/or property!
Tools Required
10mm wrench / 12mm wrench / 14mm wrench
Phillips screwdriver
4mm hex wrench / 5mm hex wrench
To assemble your dust cyclone, follow these steps:
For your own safety, do not connect the machine to the power source until
the machine is completely assembled. Please also make sure that you read
and understand the entire instruction manual.
ASSEMBLY TIME ESTIMATE 5 hour to 6 hour
Step One: Turn the unit upside down. Make sure you use a cushion under the
canister top side to even out the unit to the same height as the motor. Do
not have the unit lopsided. Remove the base (G) which has been fastened to
the (3) top upright supports (E).
To Next Page
