Step Two: Secure the (4) 3” wheels to the underside of the base (G) using (16)
5/16”*3/4” hex bolts and (16) 5/16”*od18*2T flat washers.

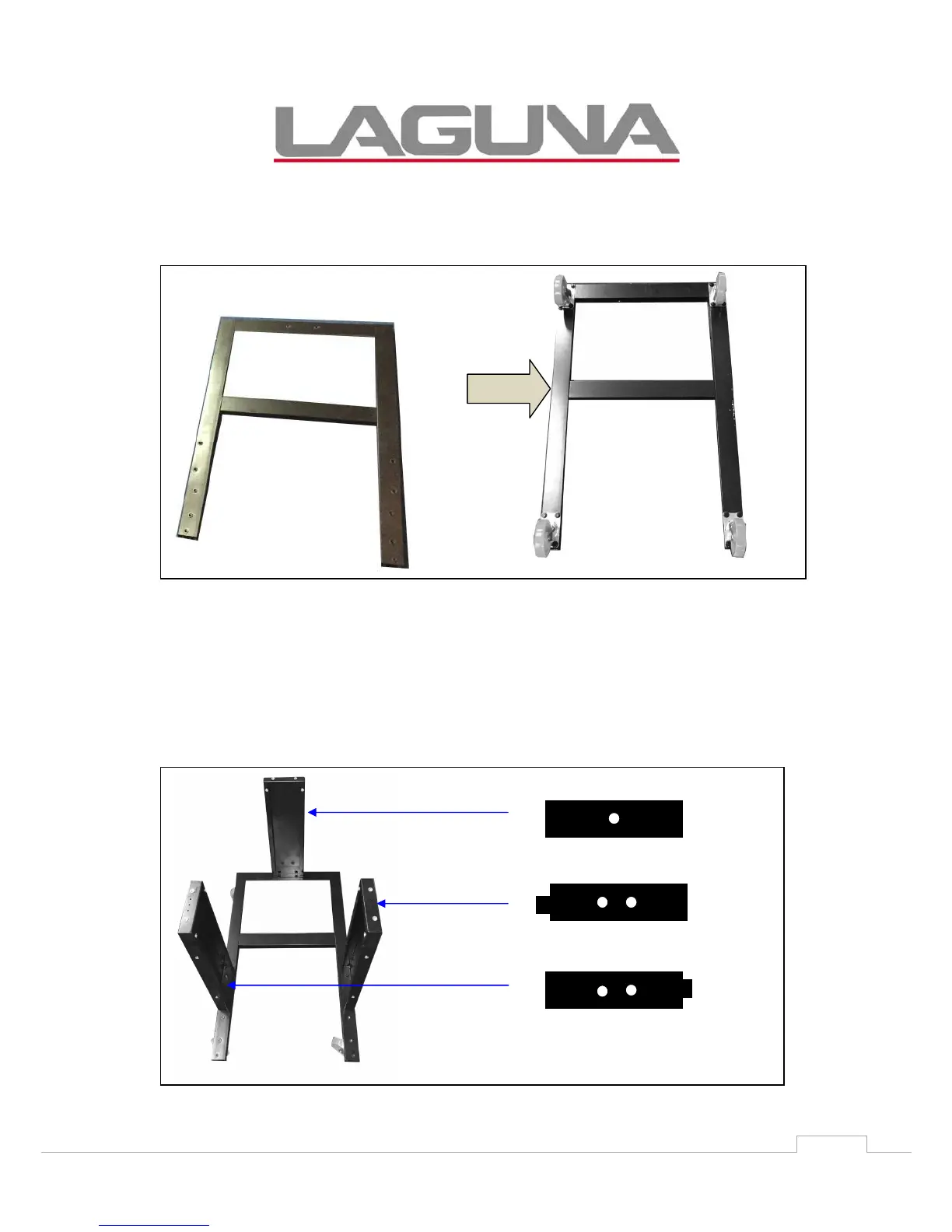

Step Three: Turn the base (G) around with it standing on the (4) 3” red
wheels and secure the three lower upright support panels (R). using (6)
3/8”*3/4” hex bolts and (6) 3/8”*OD23*2t flat washers.
Each lower upright support panels (R) numbered for its specific location.
A – shown with one dot is located on the canister side.
B – shown with two dots with extension on left is located on the front side
C – shown with two dots with extension on right is located on opposite end.
