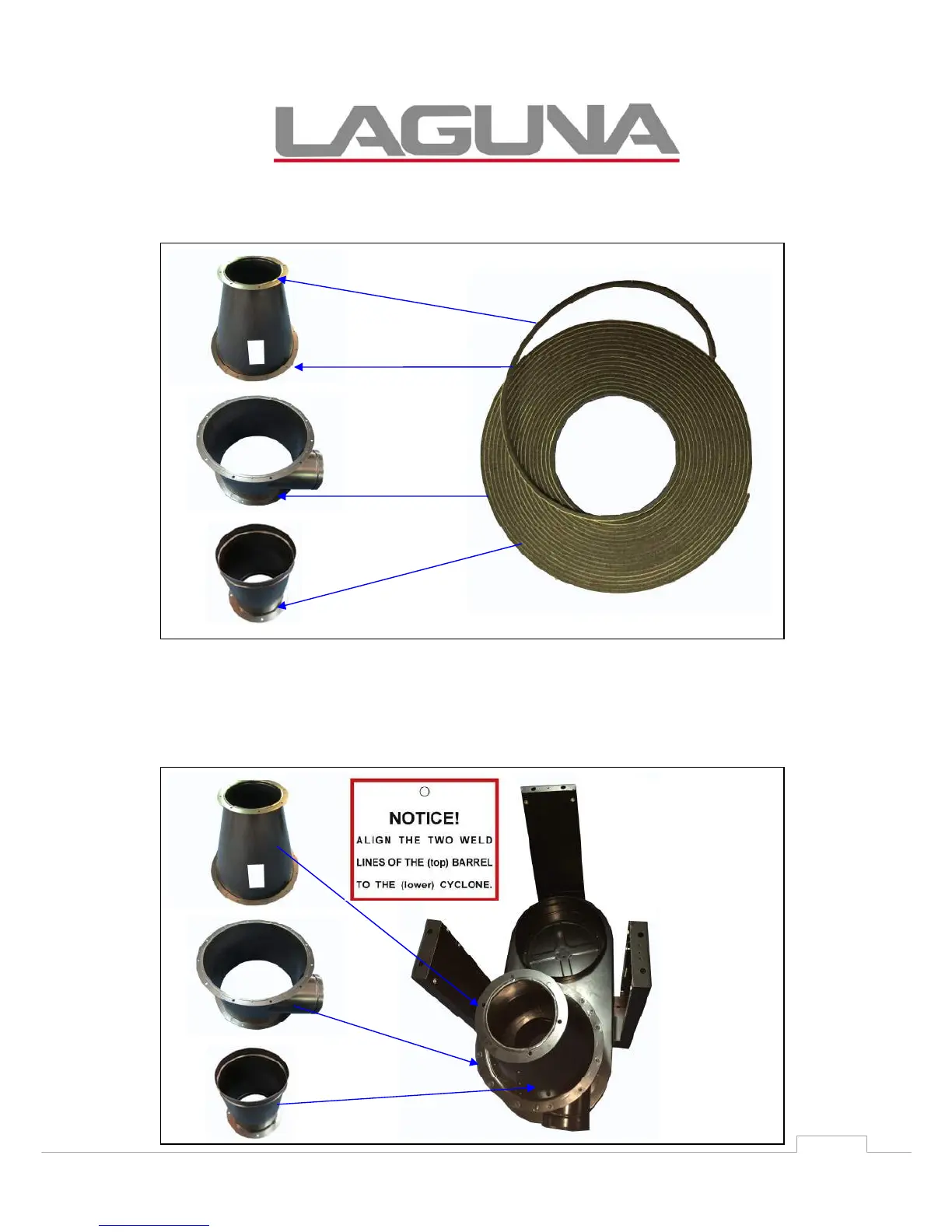

Step Four: Install the foam tape to the upper and lower rims of the three
components listed, Cyclone funnel, Cyclone barrel, and Intake cylinder.
Step Five: Attach the intake cylinder to the dust chute using (4) 5/16”*5/8” hex
spring bolts. Then, attach the cyclone barrel onto the dust chute using (12)
5/16”*3/4” hex bolts and (12) 5/16”*OD18*2t flat washers followed by attaching
the cyclone funnel to the barrel using (12) 5/16”*3/4” hex bolts, (24)
5/16”*OD18*2t flat washers and (12) 5/16” hex nuts.
