3HP Mobile Dust Cyclone Manual
17

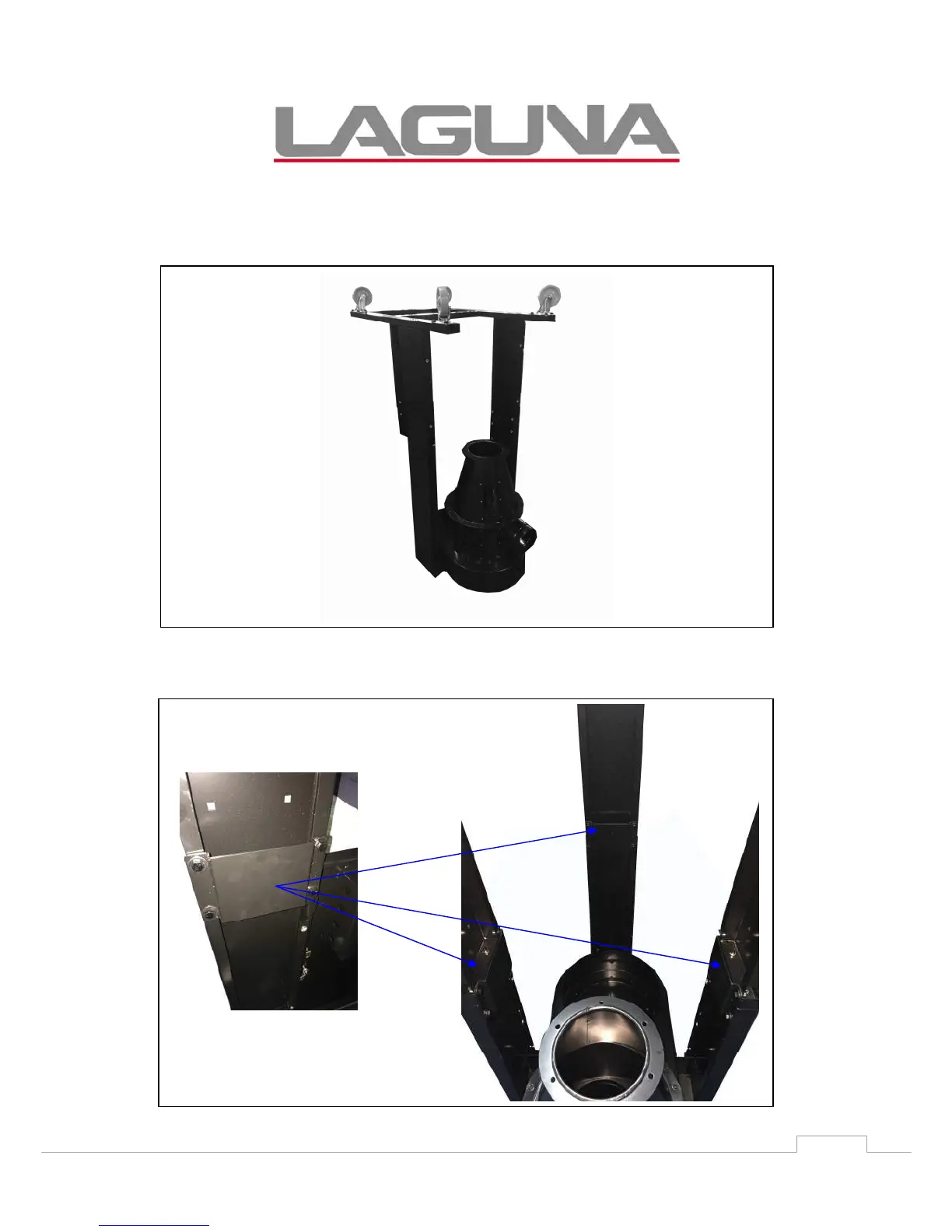

Step Six: Secure the base with (3) lower upright support panels to the unit
using (6) 5/16”*3/4” hex bolts and (6) 5/16”*OD18*2t flat washers.
Step Seven: Secure the (3) upright support reinforcement plates (T) using (12)
5/16”*3/4” hex bolts and (12) 5/16”*OD18*2t flat washers.
