3HP Mobile Dust Cyclone Manual
18

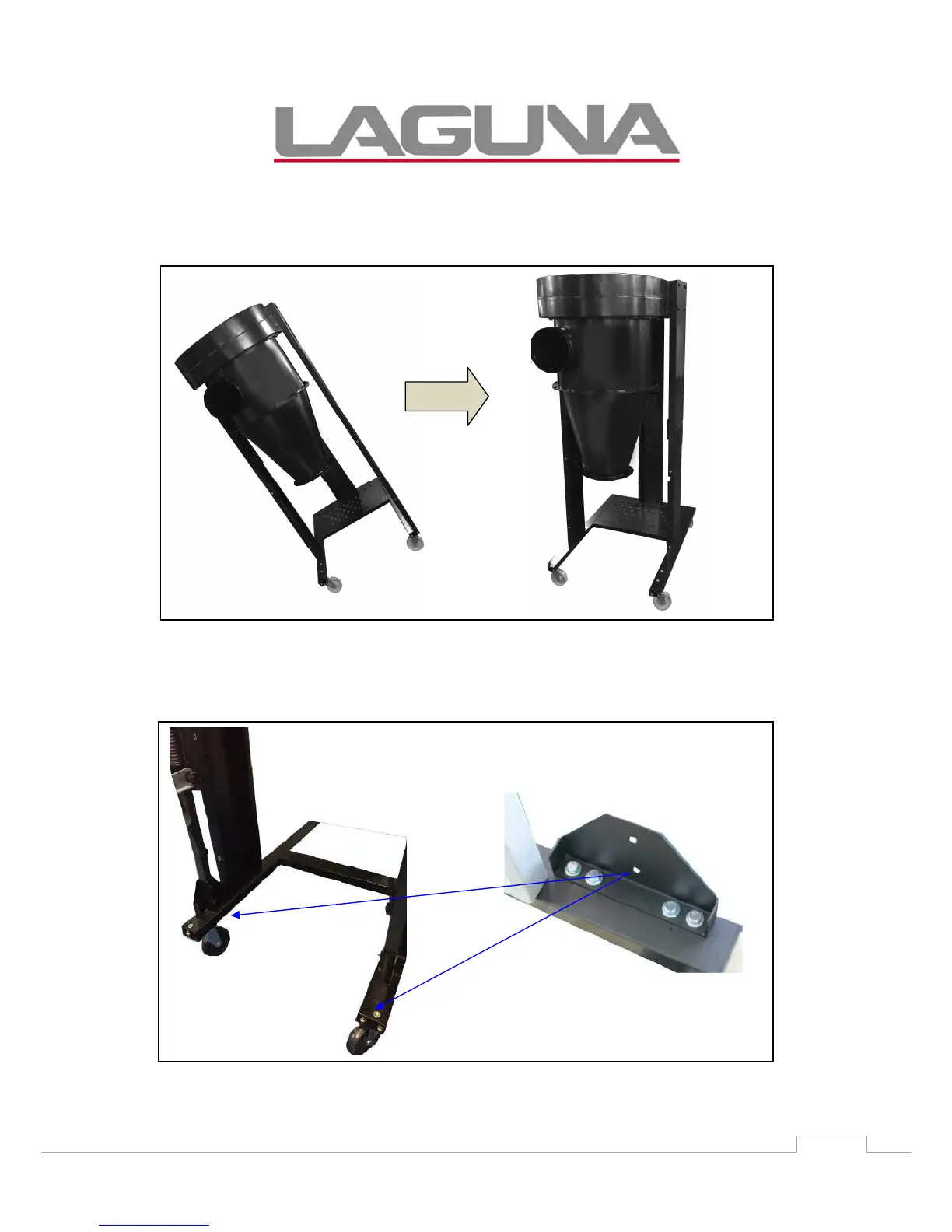

Step Eight: With the help of another person, lift the unit up carefully to the
right side up with the motor on top and the wheels at the bottom.
Step Nine: Secure the lower triangular support plate to the base using (4)
5/16”*3/4” hex bolts and (4) 5/16”*OD18*2t flat washers.
. .
. Follow the same steps
for the opposite side.
