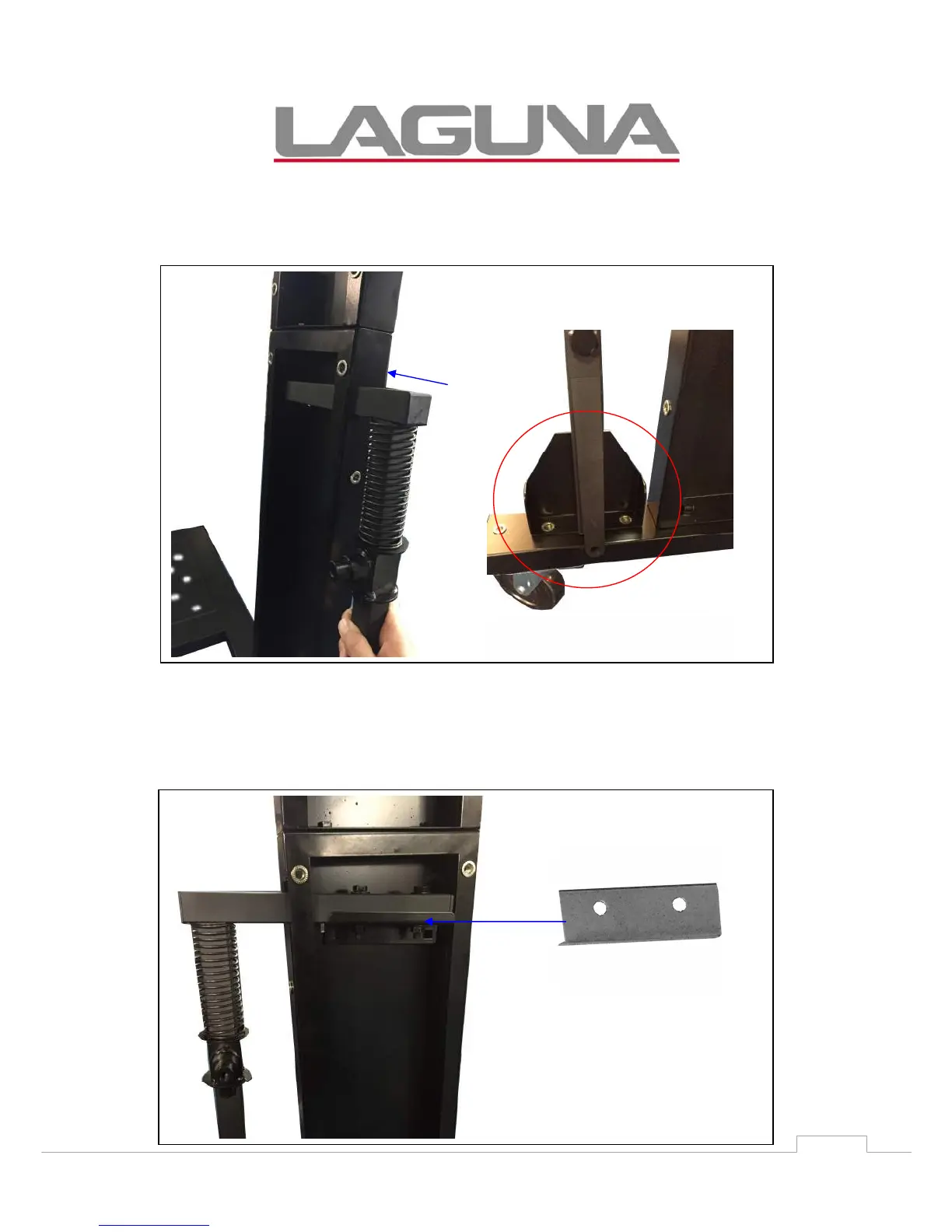

Step Ten: Slide the Foot pedal bar into the opening on the lower upright support
panel (R). Make sure the end of the bar is on the inside of the triangular support
plate.
Follow the same steps for the opposite side.
Step Eleven: Secure the foot pedal support to the lower upright support panel
using (4) 5/16”*1/2” carriage bolts, (4) 5/16”*OD18*2t flat washers and (4) 5/16”
hex nuts. Then secure the foot pedal bar to this support using (4) 5/16”*1-3/4”
hex bolts, (8)5/16”*OD18*2t flat washers and (4) 5/16” hex nuts. Follow the
same steps for the opposite side.
