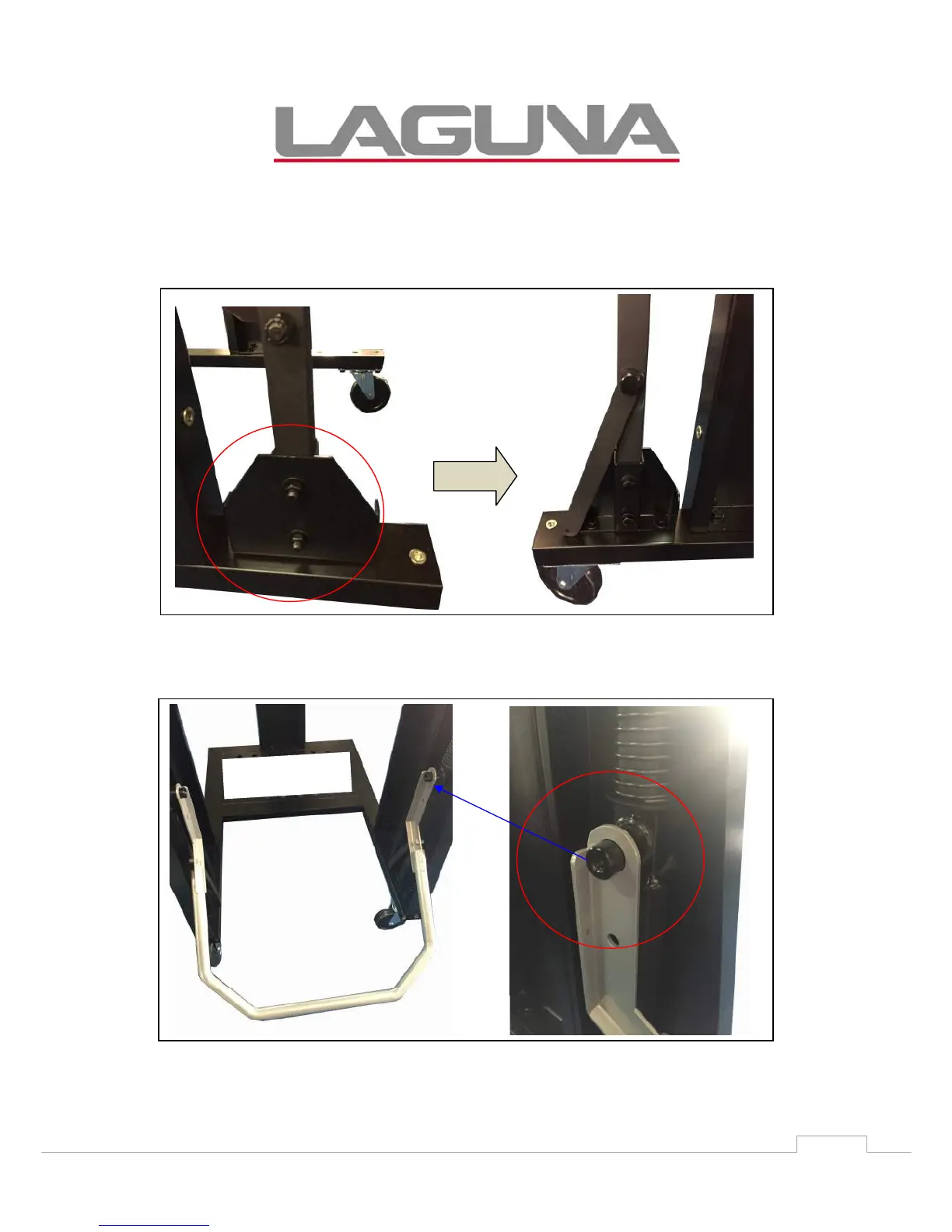

Step Twelve: Secure the base of the foot pedal bar to the triangular support
plate by holding the lower support plate vertically up against the foot pedal bar
using (4)5/16”*1-3/4” hex bolts, (8) 5/16”*OD18*2t flat washers and (4) 5/16” hex
nuts from the inside out.
Follow the same steps for the opposite side.
Step Thirteen: Attach the two ends of the Octagon foot pedal to the nut on the
foot pedal bar
