Operator's Manual – Stacker Giant – SKILL
© LAI GAMES
Page 40

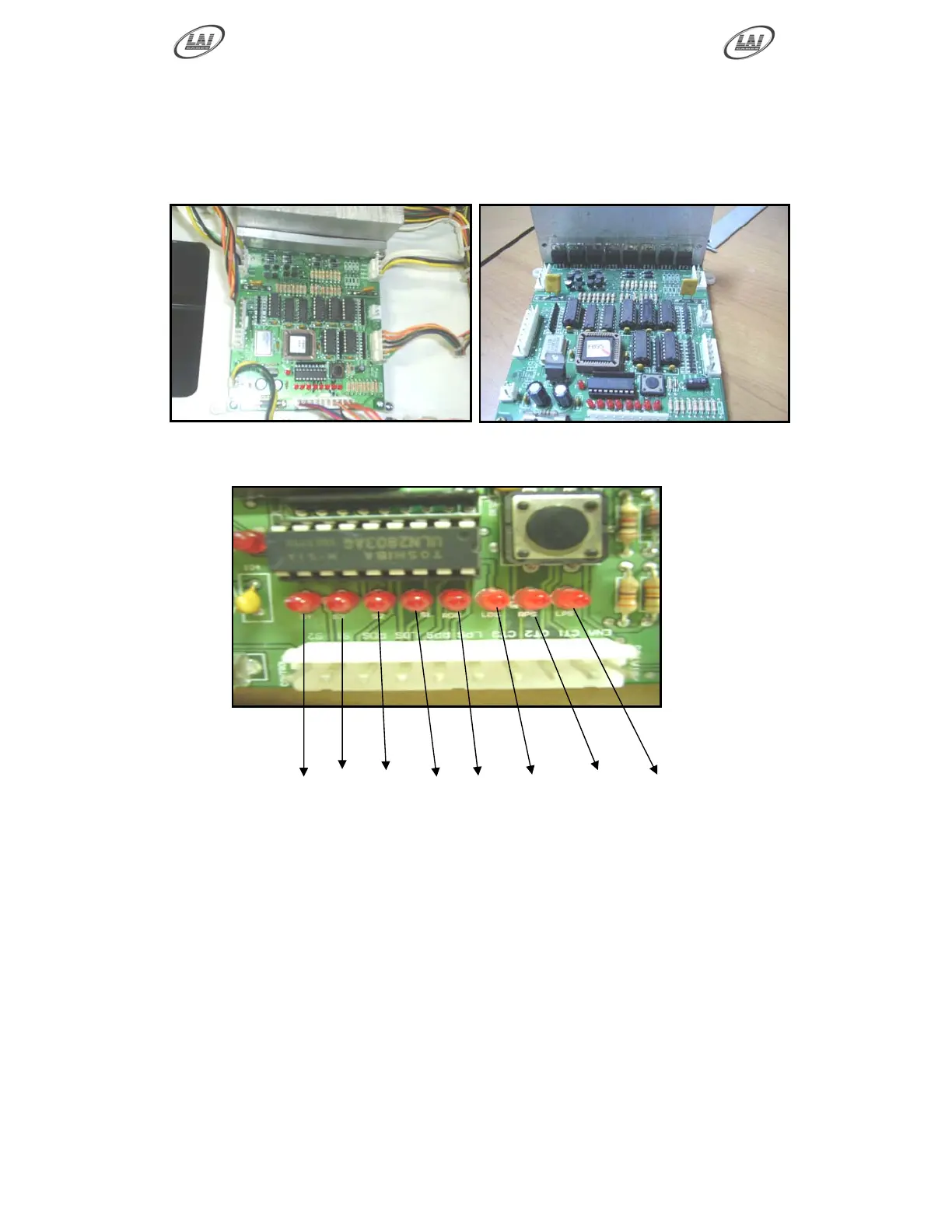

READING LED’S INDICATOR ON BAFB95
BAFB95 PLD MOTOR CONTROL PCB is located inside the machine and is
accessed from the back of the machine. On this PCB, there are eight (8) LED
Indicators that are used to indicate troubles related to prize box gate, sensors,
safety switch, and limit switch.
This is the order of the LED:
S4 = Right Prize Sensor
S3 = Left Prize Sensor
S2 = Prize Sensor Status
S1 = Prize box status
RDS = Right door safety switch status
LDS = Left door safety switch status
RPS = Right door open/close status
LPS = Left door open/close status.
S4 S3 S2 S1 RDS LDS RPS RPS
