LAI Games Stacker Giant User Manual

Operator's Manual – Stacker Giant – SKILL
© LAI GAMES
Page 41

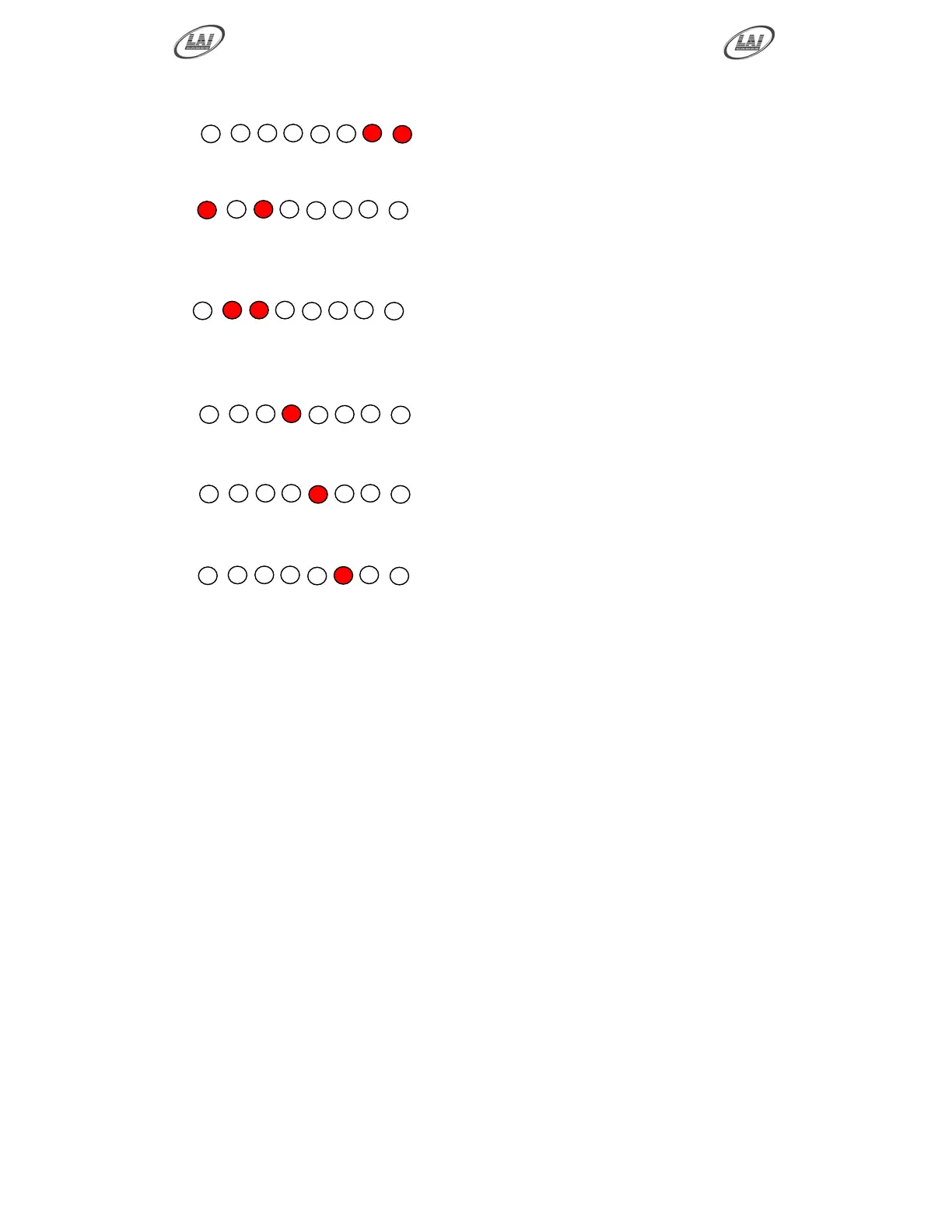

How to read the Indicator:
1.
S4 S3 S2 S1 RDS LDS RPS LPS
Indicates: Normal condition (No troubles occurred)
2.
S4 S3 S2 S1 RDS LDS RPS LPS
Indicates: The left prize box gate sensor is active and there is something
blocking the sensor.
3.
S4 S3 S2 S1 RDS LDS RPS LPS
Indicates: The right prize box gate sensor is active and there is something
blocking the sensor.
4.
S4 S3 S2 S1 RDS LDS RPS LPS
Indicates: No switches in the left and right prize box gate are active.
5.
S4 S3 S2 S1 RDS LDS RPS LPS
Indicates: The safety switch of the left prize box gate is active.
6.
S4 S3 S2 S1 RDS LDS RPS LPS
Indicates : The safety switch of the right prize box gate is active.
The LED Indicators on BAFB95 PCB are useful to indicate any problems
concerning prize box gate and to identify the exact problem.
