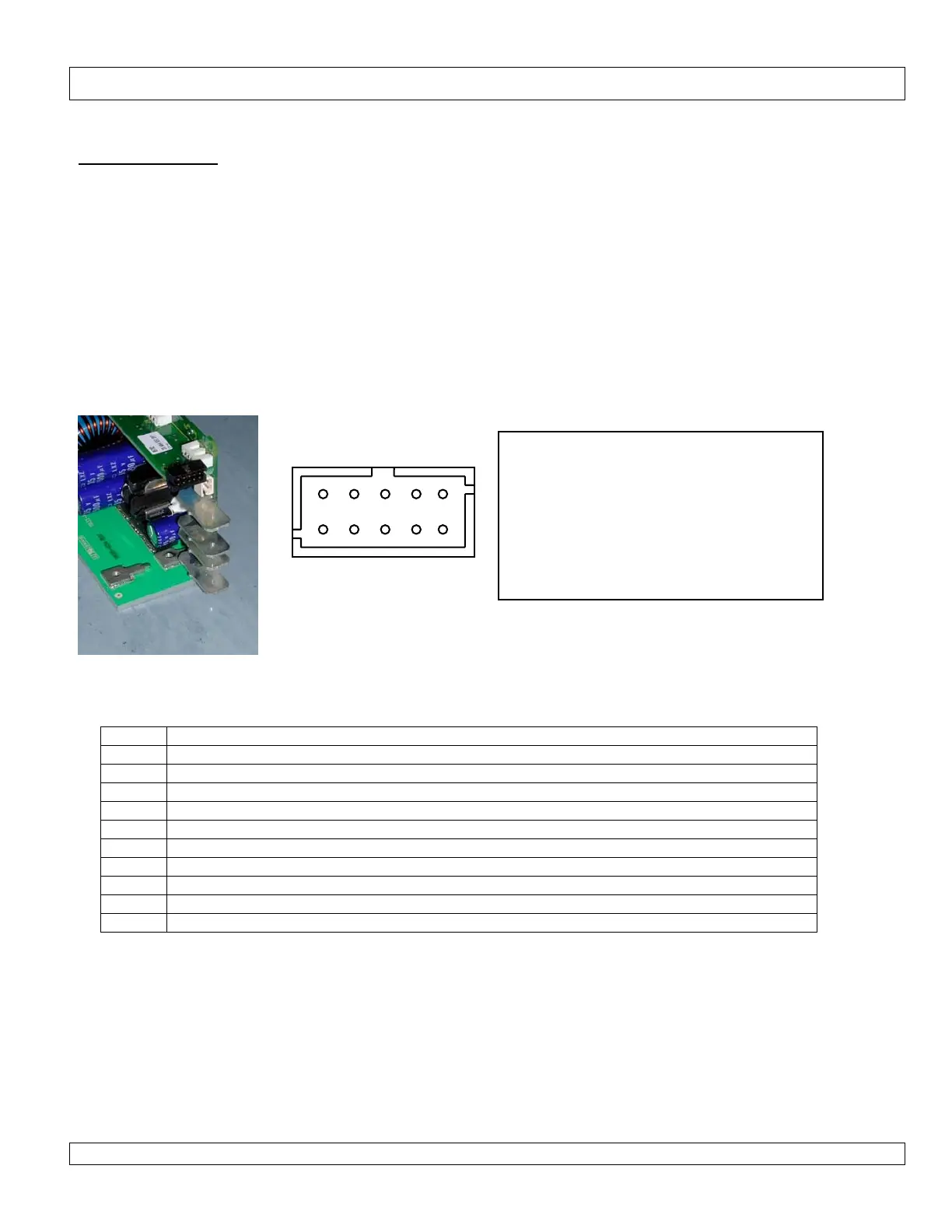

Vega Customer Applications Manual Section 3 - Analogue Secondary options
Rev. A3: October 2003 Page 11 of 48
Section 3 - Analogue Secondary options
Secondary Option N.
The N option is a factory fitted assembly that can be specified for output modules. The option has the following function:
Module Good, output signal that indicates when the module is within 10% of the set voltage level.
Module Inhibit, this enables the individual module to be shut down by application of an inhibit signal.
Starpoint Paralleling, can be used in N+1 redundant applications to force paralleled modules to share the load current or can be
used to parallel 2 or more modules to increase the available output current.
N option for SINGLE, One and a Half and Dual slot modules.
Pin No Function
1 Unused.
2 Module Good E
3 +Ve Sense. *1
4 Module Good C
5 Starpoint Parallel.
6 Unused.
7 Starpoint Parallel.
8 Module Inhibit -Ve
9 -Ve Sense. *1
10 Module Inhibit +Ve
Note *1: Option board +ve sense and module +ve sense (2pin molex) are internally connected.
Mating connector information:
Note: housing and pins supplied with each
power supply.
Housing: Molex 51110-1060
Crimp pin: Molex 50394-8051
Hand Crimp Tool: 69008-0959 (Europe or
Japan) Or 11-01-0204(USA)
Viewed from rear of PSU
9 7 5 3 1
10 8 6 4 2
