23

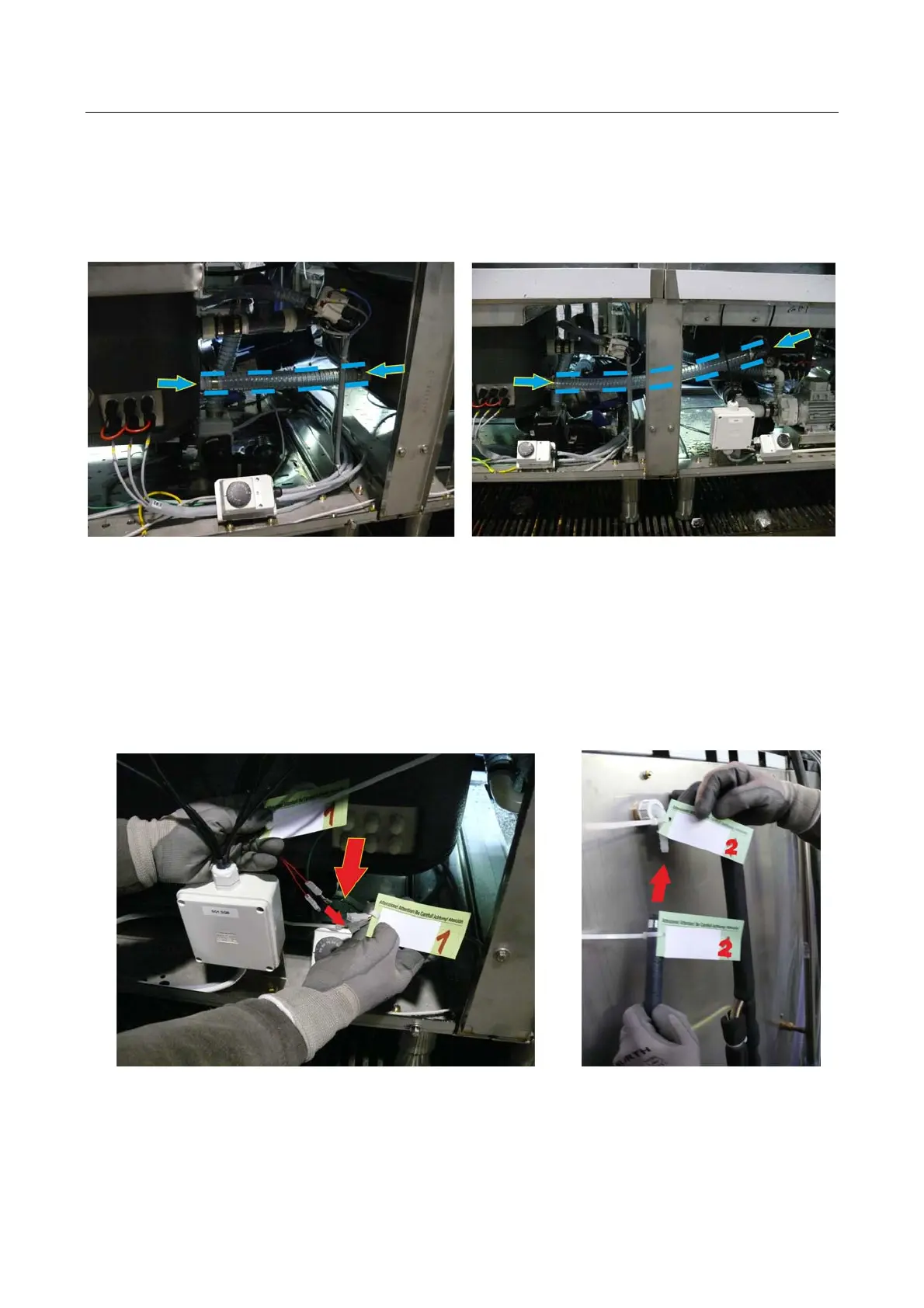

4.3 Hydraulic and electric connections during the module assembly phase
Warning! Below are some examples of hydraulic and electric connections to be
completed during assembly of the machine.
Always refer to the photographs attached to the file of machine assembly.
a) Connect the tanks of the various modules, wherever necessary, between them and the
existing tube.
b) Connect the electric cables of the thermometer probes wherever present.
c) Connect the tank charge tubes wherever present;
Warning! Each connection is identified by a numbered card.
(The number illustrated in the photograph is an example and may change according to
the machine type)
b) c)
