The appliance may be connected to the mains supply only by a suitably qualified person.
The mains lead must not be clamped, bent, trapped, or come into contact with hot parts of the appliance.
If the mains lead is damaged, it must be replaced by a qualifi ed person (mains cable must not be
longer than 2m for safety reasons). It should be routed away from the appliance and not trapped between
the appliance and the wall.
Technical data
Outer Dimensions
Width 580mm
Depth 510mm
Height 55mm
Cutout Dimensions
Width 560mm (+2)
Depth
490mm (+2)
Cook Zones
Rear Left
Front Left
Front Right
Rear Right
Ø180-1800/3000W
Ø180-1800/3000W
Ø180-1800/3000W
Ø180-1800/3000W
Total Input Power
Fuse
32A / 16A x 2
7200W
Supply Voltage 1N ~220-240 V/2N ~380-415 V; 50 Hz
Cable Type
22
LAMONA Appliances
HO5V2V2 1.5mm ², 5 core (Max 2m) or eqv.

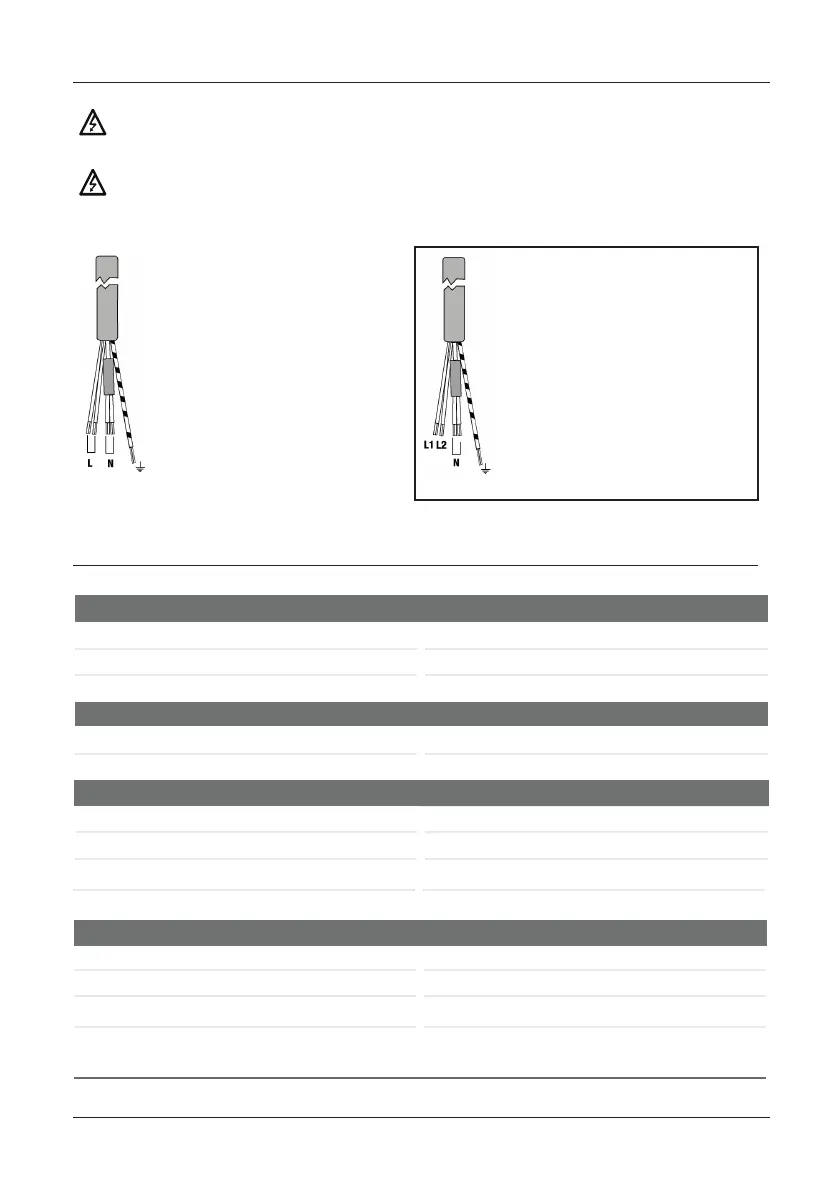

For single-phase 220v - 240v UK
connect the wires as
identified below:
• Brown/Black cable = L (Live)
• Blue/Grey cable = N (Neutral)
• Green/yellow cable = (E) (Earth)
For double-phase European Supply
connect the wires as
identified below:
• Brown cable = L1 (Phase 1)
• Black cable = L2 (Phase 2)
• Blue/Grey cable = N (Neutral)
• Green/yellow cable = (E) (Ground)
or
• Black cable = L1 (Phase 1)
• Grey cable = L2 (Phase 2)
• Blue/Brown cable = N (Neutral)
• Green/yellow cable = (E) (Ground)
Cook Zones
Voltage/Frequency
