Lamona LAM8607 - Before First Use; Check Water Hardness

6
www.howdens.com
min
500mm
min
300mm
max
1000mm
*
max.
100mm
*
min
500mm
min
300mm
max
1000mm
min
15mm
818mm
(+100)
550mm
598mm
820-920mm
min
570mm
*
600mm (+1)

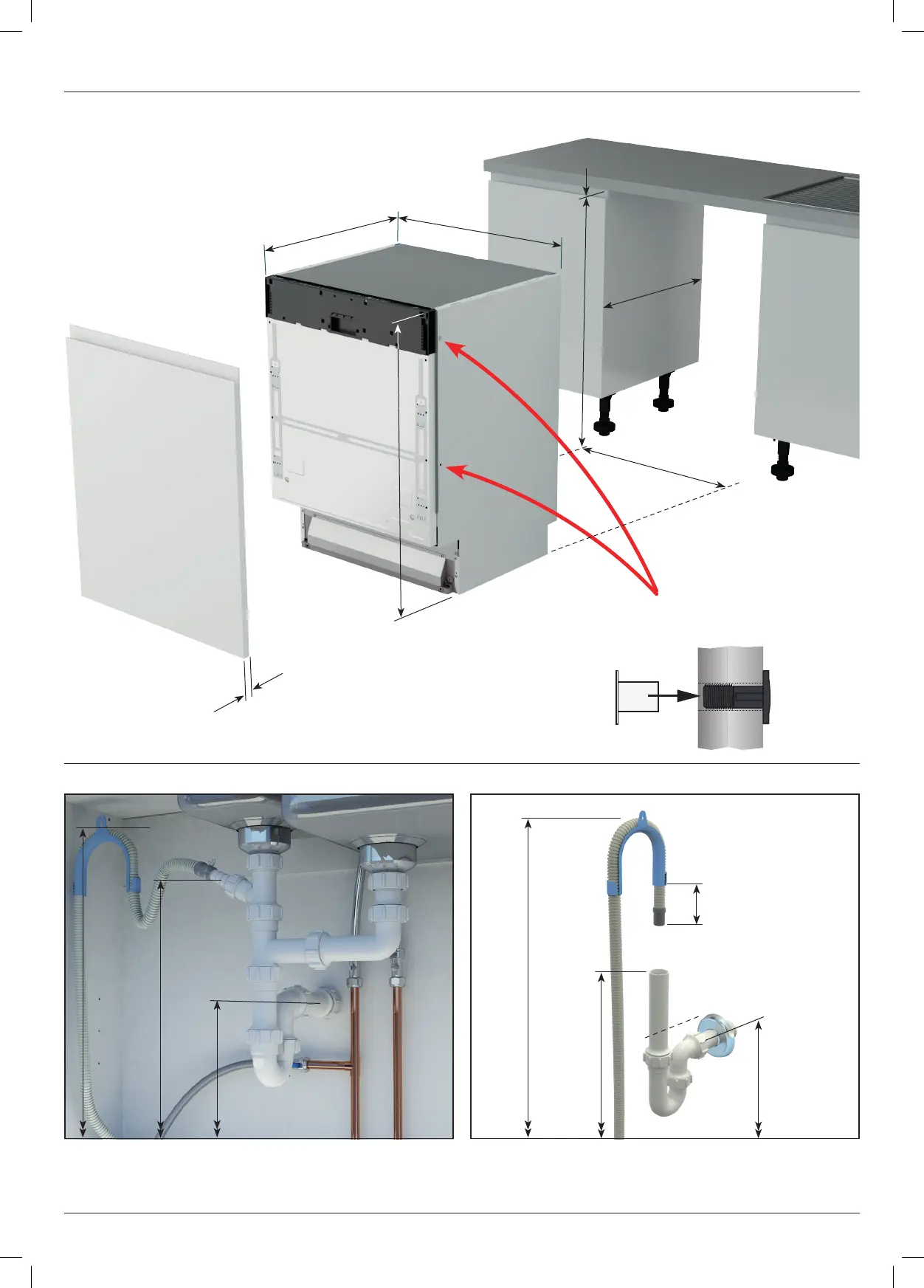

1 - Dimensions
2 - Dishwasher connections
Position the dishwasher
relative to service connections.
For Profile Kitchens,
see section 4.
All dimensions are to the floor. *DO NOT insert the hose too deep into the waste pipe,
(Maximum hose length, 3.2 metres).
Fit and adjust the spacers to the niche width.
(both sides - see page 9)
Cabinet
Dishwasher
Adjust the spacer to fill
the gap between the
dishwasher and the cabinet
Dishwasher
