205
7
Operating Control and Displays
Select Language

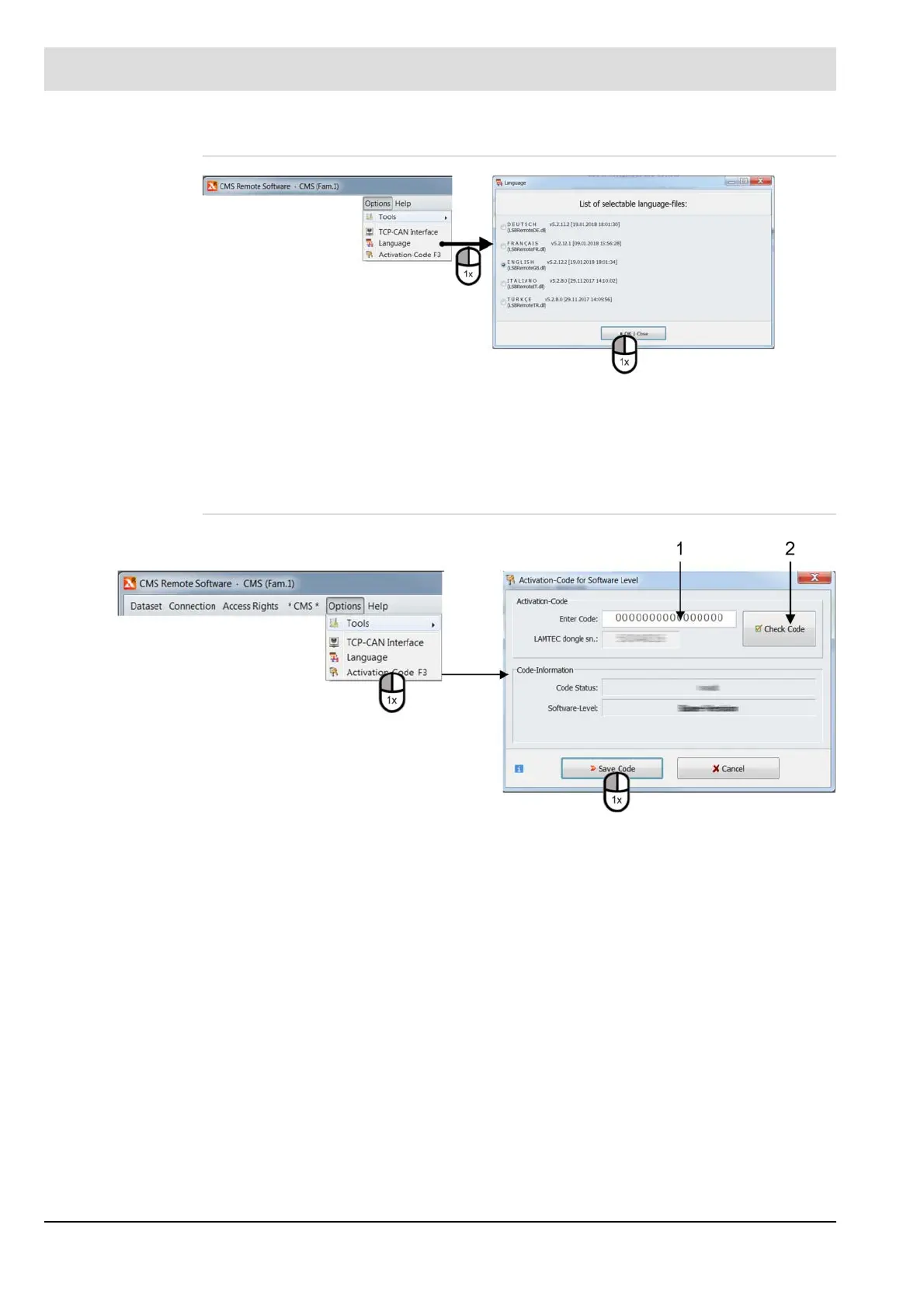

Fig. 7-87 Language selection menu
Selecting a language
1.
In the menu, click "Language selection".
2.
Select the language for the CMS remote software and confirm with "OK".
Access Code
Fig. 7-88 CMS access code menu
1.
Enter the access code.
2.
Click "T
est code" to check the validity of the access code.
Then save the code.
205
207
