232
8 CO/O
2
Control

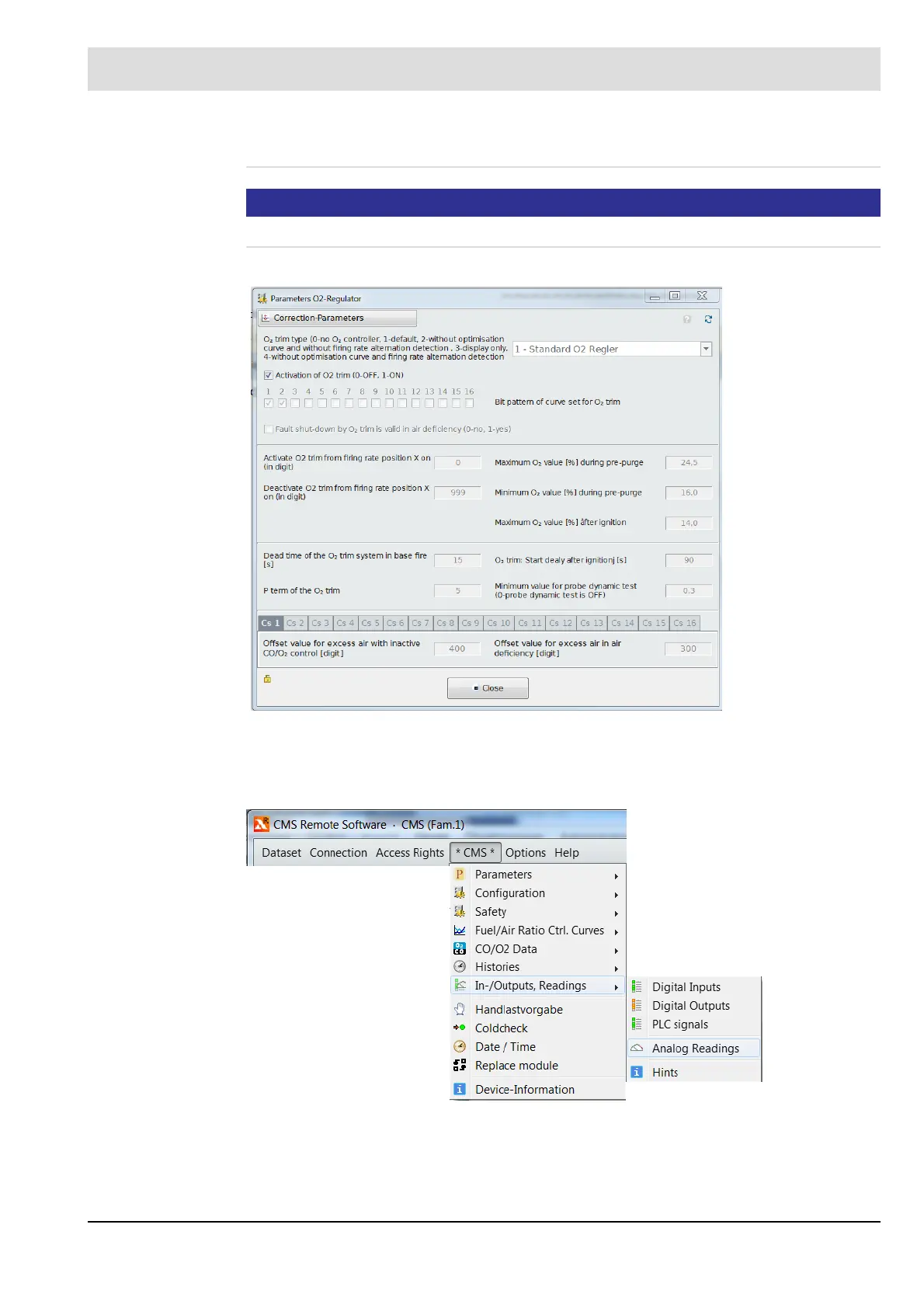

Setting the 'Proportional Factor' and 'Dead Time' Control Parameters
NOTICE
To adjust control parameters access level 1 is required.
Set parameter P 109 so that the next setpoint/actual value comparison (control pulse) does
not take place until the O
2
actual value has visibly changed – best seen in the window ’Ana-
logue measured values"’ (see Fig. 8-23 Analogue measured values menu and Fig. 8-24 Ana-
logue measurement values window).
Fig. 8-23 Analogue measured values menu
P 109
P 110
P 120
P 100
P 121
