7. ILLUSTRATIONS, PARTS LISTINGS, AND WIRING DIAGRAMS

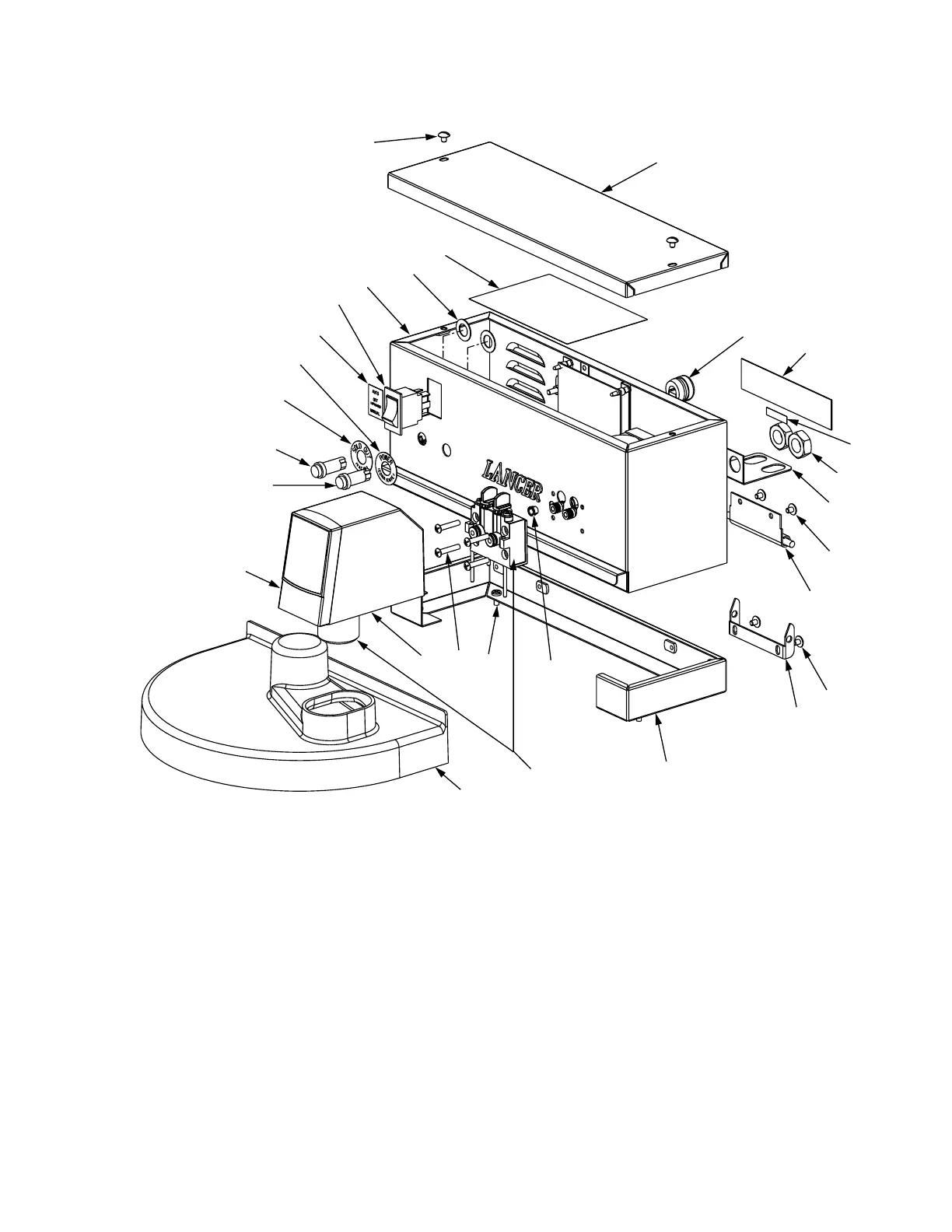

7.1 CONTROL BOX ASSEMBLY, FRONT VIEW
Item Part No. Description
1 51-1421 Control Box Assy, DQ, LFS
2 30-3125 Cover, Control Box, LFS
3 04-0148 Screw, 10 - 32 x 0.250, THD, SL,
MS, SS
4 06-2486/01 Decal, Wiring Diagram, LFS
5 04-1292 Washer, SS, 0.500 ID X 0.870 OD X
0.0300 THK
6 12-0446 Switch, Rocker, Double Pole,
Double Throw
7 06-2483 Label, Switch, LFS
8 06-2484 Label, Power LED, LFS
9 06-2485 Label, Sold Out LED, LFS
10 12-0447 LED, Red, Snap Mount, 5 VDC
11 12-0448 LED, Green, Snap Mount, 5 VDC
12 05-0287/02 Panel, ID. LEV
®, Basic, Lift-Off
13 19-0181/01 LEV®, 4.5, W/O C, L, S, WH
(includes back block)
Item Part No. Description
14 54-0029/01 Cover, Subassy, LEV®, Lift-Off
15 04-1089 Screw, 10 - 32, RH, PFH/SL, 1.000
16 04-0558 Screw, 10 - 32 x 0.375, LG, PHP,
ROLOC
17 05-2014 Lid, Hopper
18 13-0005 Bushing, Strain Relief, 0.312 OD
19 30-3193 Base, DQ, LFS
20 30-3134 Hinge, Bottom, LFS
21 07-0575 Hinge, SS, Concealed, Removable
22 30-3135 Support, Syrup and Water
23 04-0684 Nut, Hex, Jam, 5/8 - 18, SS, Plain
24 06-0112 Label, Water
25 06-0075-01 Nameplate, Vinyl, PN/SN/ELEC
ONLY
26 13-0028 Relief, Strain, 7/8 DIA
8
