lancer LEV FILL STATION - Plumbing; Wiring Harness Diagram

9
1
2
3
4
5
6
7

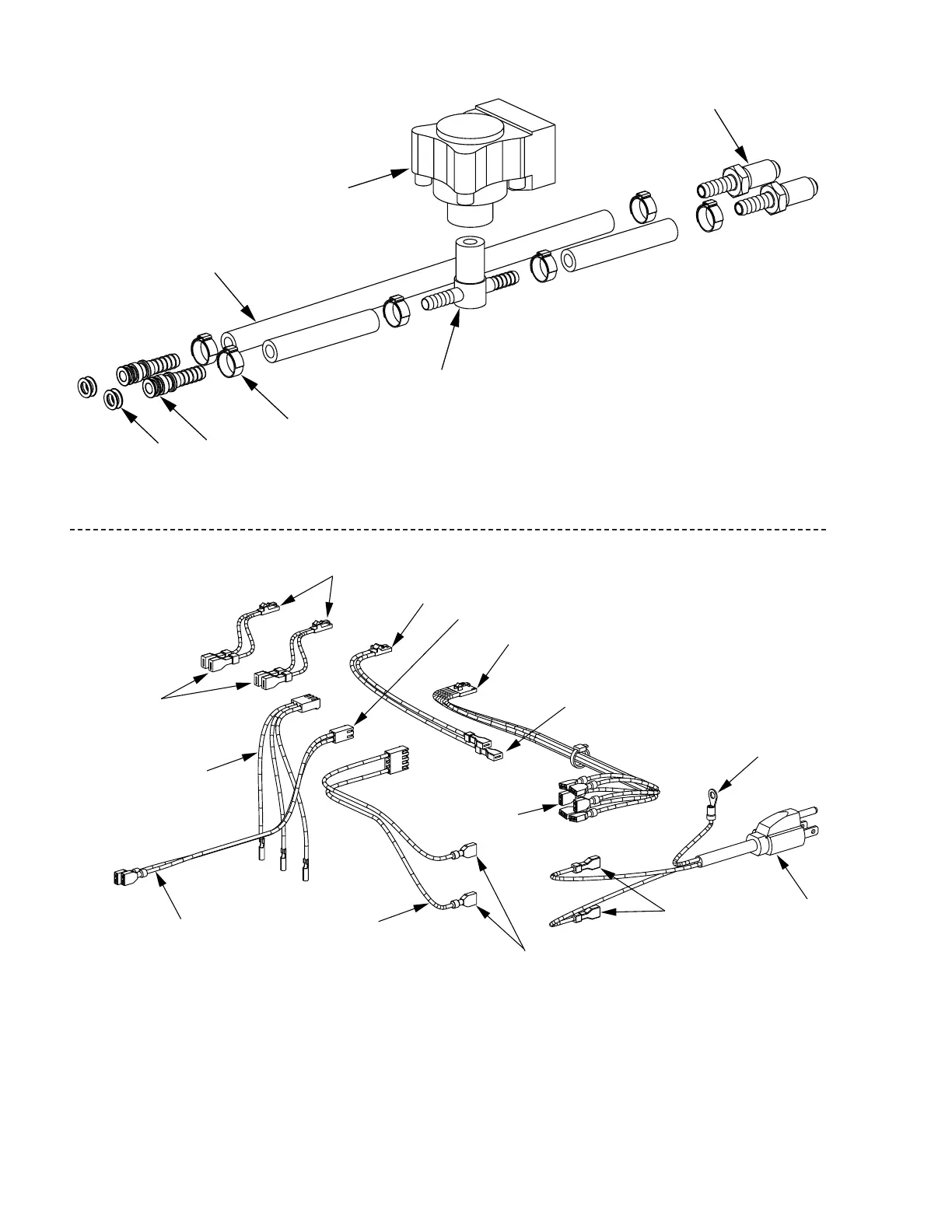

7.2 PLUMBING
Item Part No. Description
1 12-0115 Switch, Pressure, Assy, Syrup Out
2 01-2241 Bulkhead, SS, 1/4 Barb X 3/8 FLR
3 01-2207 Tee, SS, 1/4 Barb x 1/4 Barb x
1/4 NPT
4 07-0433 Clamp, Hose, STPLS, 13.3 mm
(1/2”)
5 01-0012 Adaptor, 1/4 Barb x Dole
6 02-0005 O-Ring, 2-010
7 08-0461 Tubing, Redline, 0.265 x 0.457
TO
VALVE
TO
PRESSURE
SWITCH
TO
SWITCH
TO
GROUND
STUD
TO
PROBES
TO
PRIMARY
3
TO
SECONDARY
4
6
5
7
8
2
1
TO
LED
Item Part No. Description
1 52-2511 Harness, Valve to PCB, LFS
2 52-2510 Harness, Transformer to PCB, LFS
3 52-2509 Cord Assy, Power, 115V, LFS
4 52-2496 Harness, Switch, LFS
5 11-0180 Connector, Housing, Wire to Board
6 52-2497 Harness, Sold Out Valve, LFS
7 52-2498/01 Harness, LED, LFS
8 52-2500 Harness, Probe, LFS
7.3 WIRING HARNESS DIAGRAM
