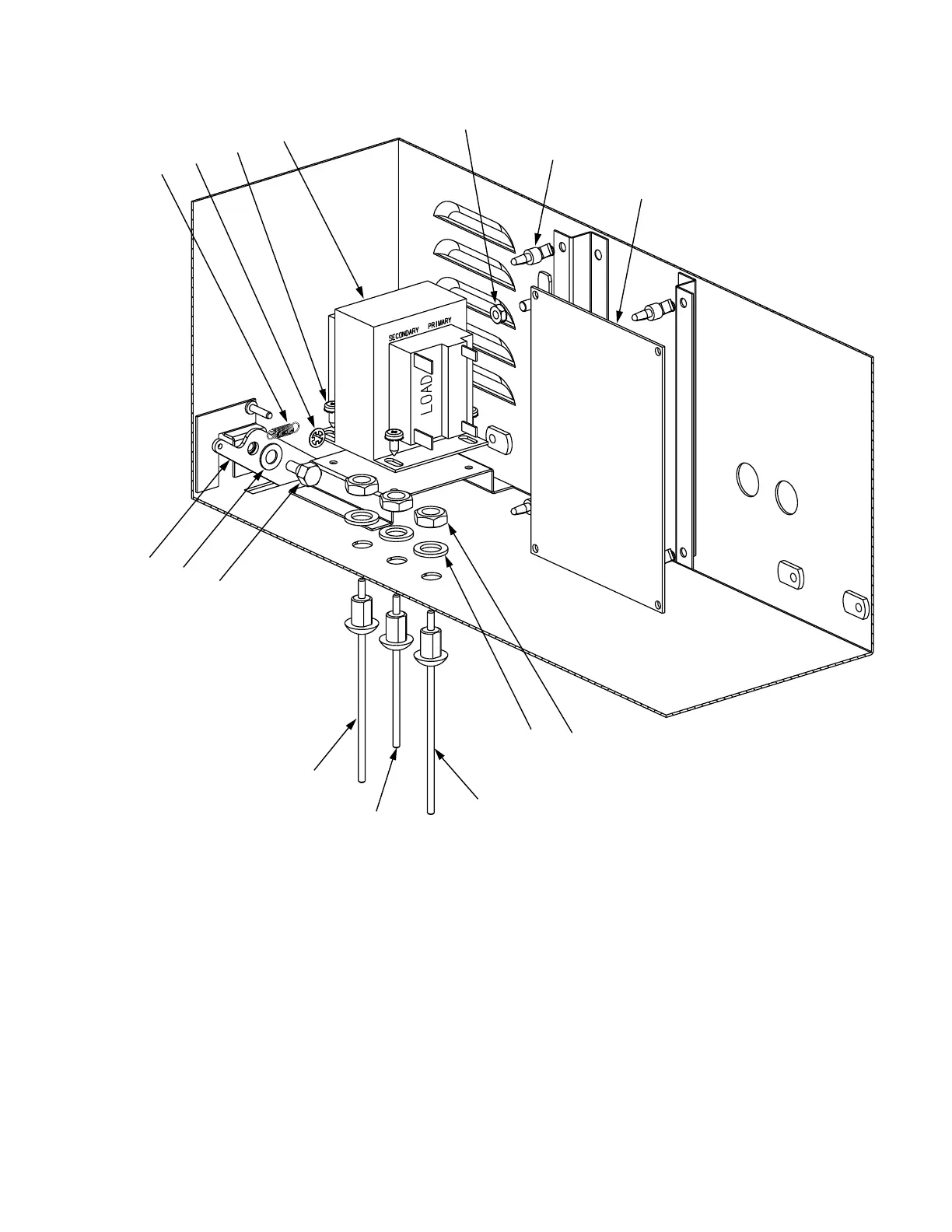

7.4 INTERNAL COMPONENTS
10
Item Part No. Description
1 52-2502 PCB Assy, LFS
2 05-1535 Support, PCB, 0.156 x 0.187 x
0.250 H
3 04-0286 Nut, Hex, 10 - 24 x 5/16, SS
KEPS Washer
4 25-0039 Transformer, 120V/50-60Hz,
24V, 50VA
5 04-0504 Screw, 8 - 18 x 0.375, PHD,
W/ELW, PH, AB
6 03-0095 Spring, Outside, Yoke
7 03-0342 Ring, Retaining, 1/8 Shaft,
External, Self Locking
Item Part No. Description
8 04-1053 Screw, Shoulder, 10 - 24, Draft
9 04-1308 Washer, Flat, 0.032 x 0.265 ID x
0.500 OD, SS
10 30-8617 Kick Stand, DQ, LFS
11 04-1315 Washer, Flat, 3/8 x 5/8 x 1/16 Thick
12 04-1285 Nut, SS, 3/8 - 16
13 52-2492 Probe, LO Level, LFS
14 52-2493 Probe, HI Level, LFS
