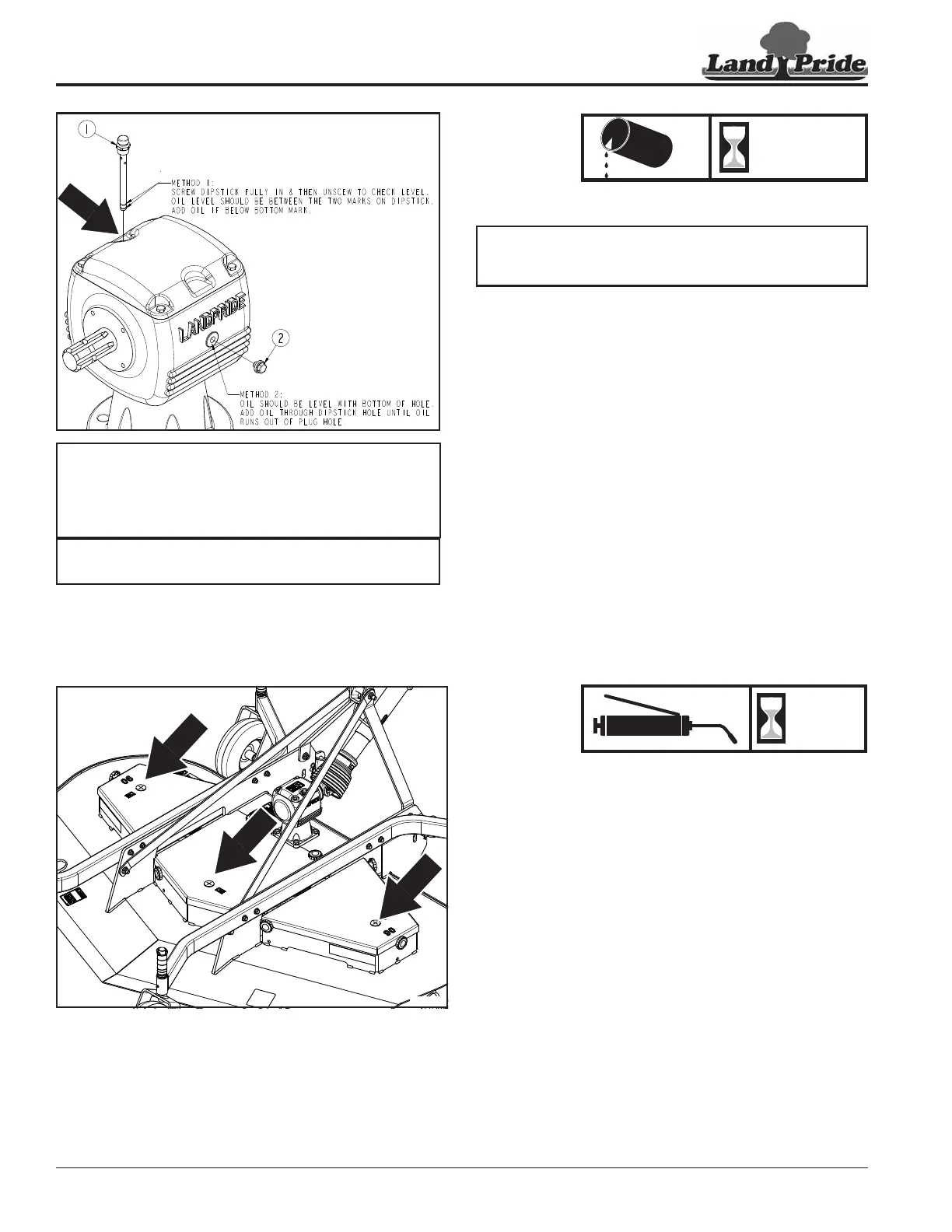

Gearbox
Method 1: Unscrew top vented dipstick (#1). Wipe oil
from dipstick and screw dipstick in without tightening.
Unscrew dipstick and check oil on dipstick. If below
bottom level mark, add recommended gear lube through
dipstick hole until oil reaches top mark on dipstick.
Reinstall vented dipstick and tighten.
Method 2: Remove side oil plug (#2). If oil is below
bottom of plug hole, add recommended gear lube
through top dipstick hole until oil flows out of side plug
hole. Reinstall and tighten side oil plug (#2) and vented
dipstick (#1).
Type of Lubrication: 80-90W EP Gear Lube
Quantity = Fill until oil reaches top mark on dipstick or
begins to flow out side plug hole in gearbox.
IMPORTANT: Do not overfill gearbox with oil. Oil will
expand when hot. Make sure implement is level and oil
is cool before checking oil level.
As
Required
30215
DO NOT
OVERFILL!
IMPORTANT: This implement is shipped with a
vented dipstick packaged in the Operator’s Manual
bag and should have been installed in the gearbox by
your dealer. Please consult your dealer if vented
dipstick was not included.
NOTE: Use a suction or siphon pump to drain
gearbox of oil when there is not an oil drain plug.
33502
Bearing in Blade Spindle Hubs
Type of Lubrication: Multi-purpose Grease
25
Hours
