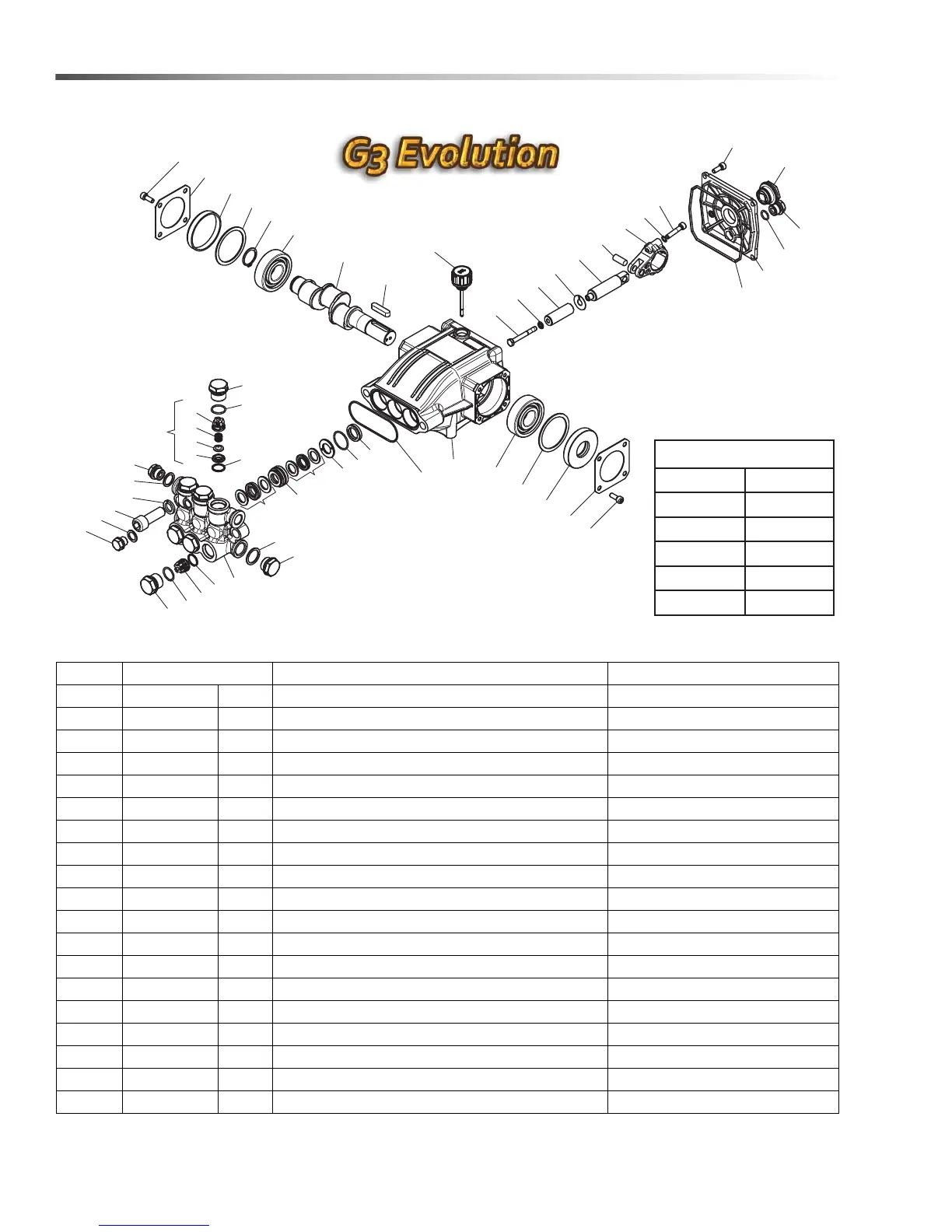

LB Series Pump
REF PART NO. QTY DESCRIPTION NOTES
1 8.754-841.0 1 CRANKCASE
2 8.754-846.0 1 O-RING Ø1.78 X 72.75
3 - 3 PLUNGER OIL SEAL SEE TABLE KITS
4 - 3 O-RING Ø1.78 X 26.7 SEE TABLE KITS
5 - 3 WASHER, PRESSURE RING 16 MM SEE TABLE KITS
6 - 3 U-SEAL, 16 MM SEE TABLE KITS
7 - 3 PRESSURE RING, 16 MM SEE TABLE KITS
8 9.803-199.0 3 U-SEAL, 16 MM SEE TABLE KITS
9 9.803-199.0 1 WASHER, COPPER G1/2
10 9.802-926.0 1 PLUG, BRASS G1/2
11 8.754-852.0 1 MANIFOLD
12 8.717-233.0 6 O-RING Ø1.78 X 15.6 SEE TABLE KITS
13 - 6 VALVE ASSEMBLY SEE TABLE KITS
14 9.803-948.0 6 O-RING Ø1.78 X 18.77 SEE TABLE KITS
15 9.803-949.0 6 VALVE PLUG
16 8.754-851.0 1 PLUG, BRASS G1/4
17 8.718-973.0 1 WASHER, COPPER G1/4
18 8.754-854.0 2 BOLT, MANIFOLD M14 X 40
19 8.754-850.0 2 WASHER, LOCK
Landa VHP 2-1500 / 3-2000 Operator’s Manual 8.913-949.0 - T
13
6
8
1
2
3
9
10
11
12
13
14
15
21
20
18
17
16
12
14
15
22
23
24
25
26
27
28
29
30
31
32
33
34
31
29
35
27
26
36
37
38
39
40
42
41
43
44
45
46
26
47
22
19
5
7
4
48
TORQUE SPECS
ITEM # FT. LBS.
15 65
18 66
26 8
36 10
44 10
