8.913-939.0 • LANDA VNG • Rev. 5/11
OPERATOR’S MANUAL
PRESSURE WASHER
56
VB8 Valve, 9.802-362.0 (5-3027)

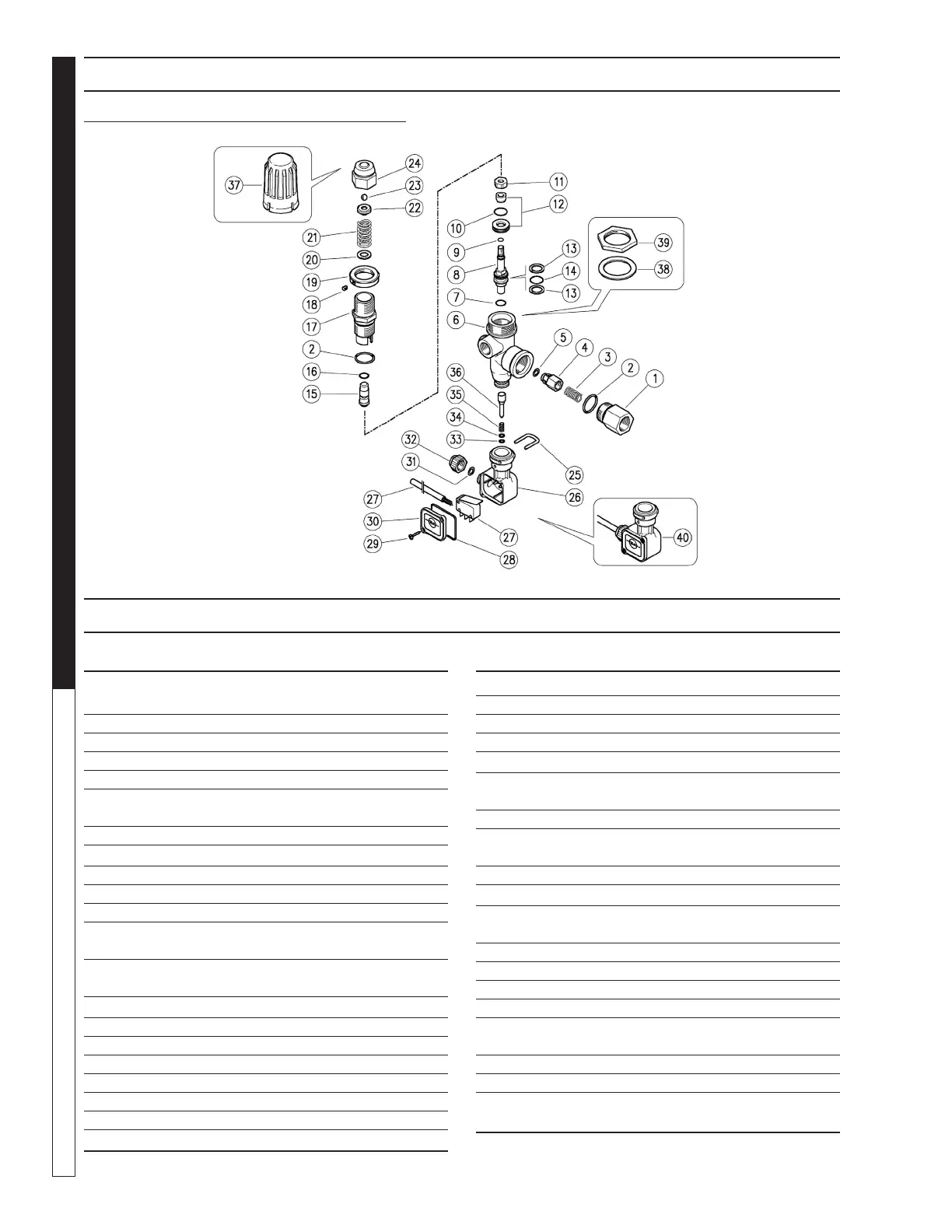

VB8 VALVE EXPLODED VIEW
ITEM# PART # DESCRIPTION QTY
1 60.0058.31 Delivery coupl.,
3/8F Bsp brass 1
2 10.3070.02
O-Ring 1.78 x 18.77 mm Ni 85
2
3 60.0053.51 Spring, 0.7 x 9 x 20 mm Sst. 1
4 60.0052.31 Shutter pin, brass 1
5 10.3070.02 O-Ring, 3 x 6 mm 1
6 60.1201.35 Housing-BB8, 3/8 M Bsp
c/sunk, brass 1
7 10.3170.08 O-Ring, 2.62 x 7.6 mm Ni 85 1
8 60.1206.31 Piston, M6 brass 1
9 10.3001.01 O-Ring, 1 x 4 mm Ni 85 1
10 10.3066.01
O-Ring, 1.78 x 15.6 mm Ni 85
1
11 60.1205.31 Special Nut, M6 brass 1
12 60.2221.20 Seat,10 mm + O-Ring,
1.78 mm NBR 85+shutt. 1
13 10.4021.00 Back-up Ring, opn. 11.5 x
15.9 x 1.2 mm 2
14 10.3175.00 O-Ring 2.65 x 10.77 mm 1
15 60.1204.31 Spring rest pin, brass 1
16 10.3167.01
O-Ring, 2.62 x 5.23 mm Ni 85
1
17 60.1203.31 Piston holder, brass 1
18
16.2100.00 Set screw, DIN914M 4 x 4 mm
1
19 60.1704.31 Ring nut, M22 x 1 brass 1
20 14.3719.00
Washer, 9 x 15 x 1, 5 mm Sst. 1
21 60.1208.61
Spring, 3.2 x15.4 x 33 mm z.pl
. 1
ITEM# PART # DESCRIPTION QTY
22 60.1210.31 Spring guiding ring 1
23 14.7421.50 Ball, 1/4" Sst. 1
24 60.1209.31 Valve regulating Insert, brass 1
25 29.0087.51 U-bolt, Sst. 1
26 29.0089.84 Housing, PR5 PA black 2
27 12.5006.00 Cable, 3 x 0.75L.1000 mm
+ Microswitch 1
28 10.3206.01 O-Ring, 2.62 x 28.25 mm 1
29 16.3020.00 S/tapp. screw, DIN7981
2.5 x 12mm nick.pl. 2
30 29.0088.84 Lid, PR5 PA black 1
31 10.3169.00 O-Ring, 2.62 x 6.02 mm 1
32 29.0082.84 Locknut for cable gland,
PA black 1
33 10.3038.00 O-Ring, 1.78 x 3.68 mm 1
34 14.3519.53 Washer, 4 x 8 x 0.8 mm Sst. 1
35 60.2303.51 Spring, 1.1 x 8 x 20 mm Sst. 1
36 60.1281.31 Micro-switch piston, brass 1
37 60.1202.84 Valve regulating knob,
PA black (1) 1
38 14.3582.00 Washer, 30.5 x 42 x 2 mm 1
39 60.2254.31 Ring nut , M30 brass (1) 1
40 29.0096.24 Casing kit - PR5, complete
40 bar 1
Kit: K1 60.1212.24 Repair kit-VB8. 9 x 1 pcs.
(1) 60.1290.00 1
VB8 VALVE EXPLODED VIEW PARTS LIST
