Landa VNG4-2000 - Installation Guide

8.913-939.0 • LANDA VNG • Rev. 5/11
9
PRESSURE WASHER
OPERATOR’S MANUAL

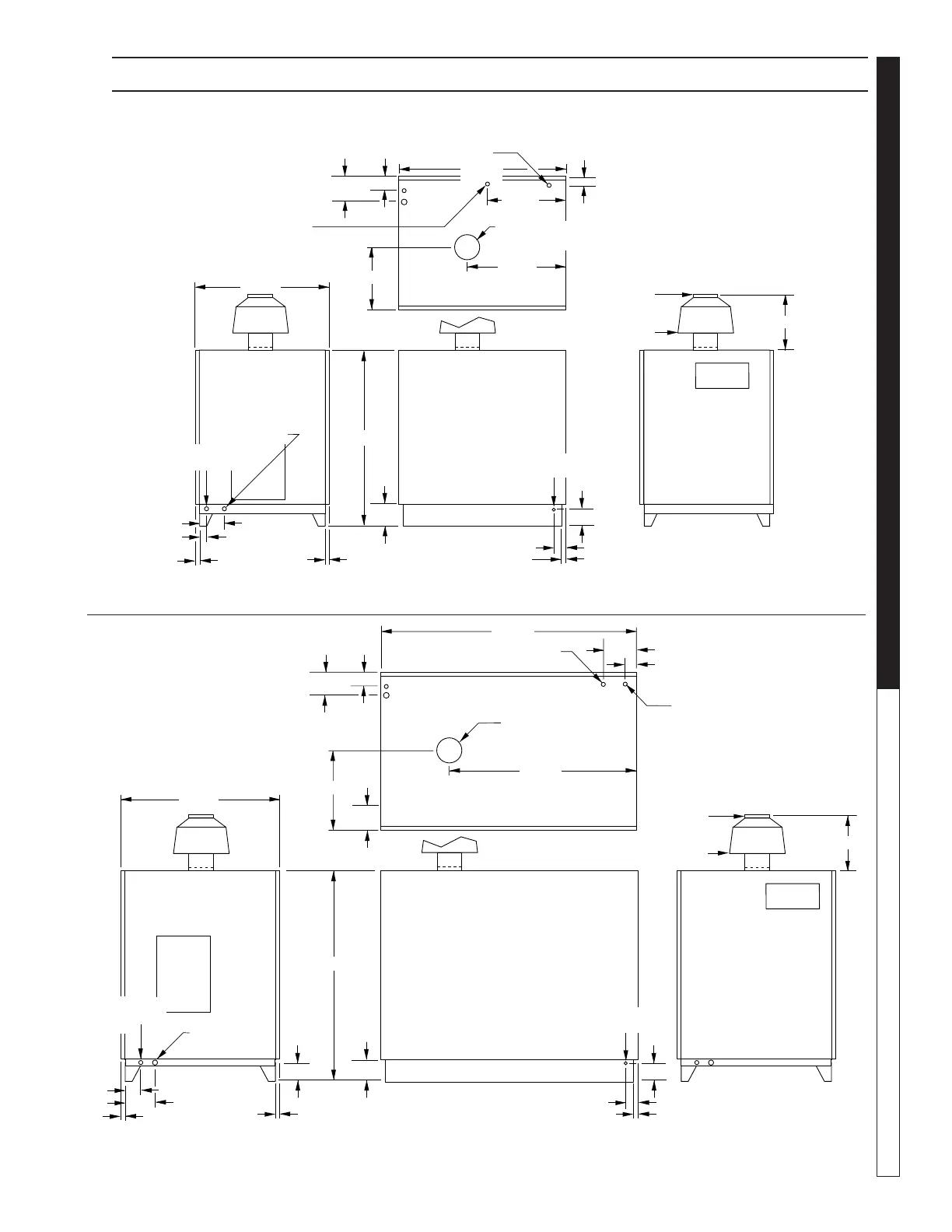

12.00"
2.00"
High Pressure
Out 3/8"
HP Nipple
12.00" Dia.
25.00" Dia.
24.00"
Control
Panel
Detergent In
5.00"
1.00"
2.00"
1.50"
1.50"
8.75"
5.75"
5.00"
6.00”
57.00"
Gas In
1” NPT-M
Elect. In
3/4 NPT
42.63"
5.75"
21.21"
8.75"
5.00"
Water In 3/4" GHF
69.13"
Electric
Gas
Exhaust Gases
12" Dia.
44.13"
VNG6-3000, 8-3000, 10-2000
18.25"
3.25"
10.00” Dia.
19.50” Dia.
21.00"
Control
Panel
Detergent In
5.00"
1.00"
2.00"
1.50"
1.50"
2.00"
5.25"
6.00"
47.50"
Gas In
1" NPT-M
Elect. In
3/4 NPT
36.00"
High Pressure Out
3/8" HP Nipple
5.25"
3.50"
Water In 3/4” GHF
Electric
Gas
32.25"
45.00"
Exhaust Gases
10” Dia.
14.50"
VNG4-2000, 4-3000, 4-4000
INSTALLATION
