LANDMANN
Delivery specications
Pos. * Qty. Designation Pos. * Qty. Designation
1 1 Grill cart (pre-assembled) 14 1 Warming rack
2 1 Side table 15 1 Grease collection tray
4 1 Side burner table 16 1 Rotisserie
6 1 Side burner support 1 Bag of small parts with
7 1 Flame regulator knob for side burner 1 Self-tapping screws
11 3 Flame guard 1 Battery type AA
13 3 Cooking grill
* Position numbers in the descriptions of the assembly steps

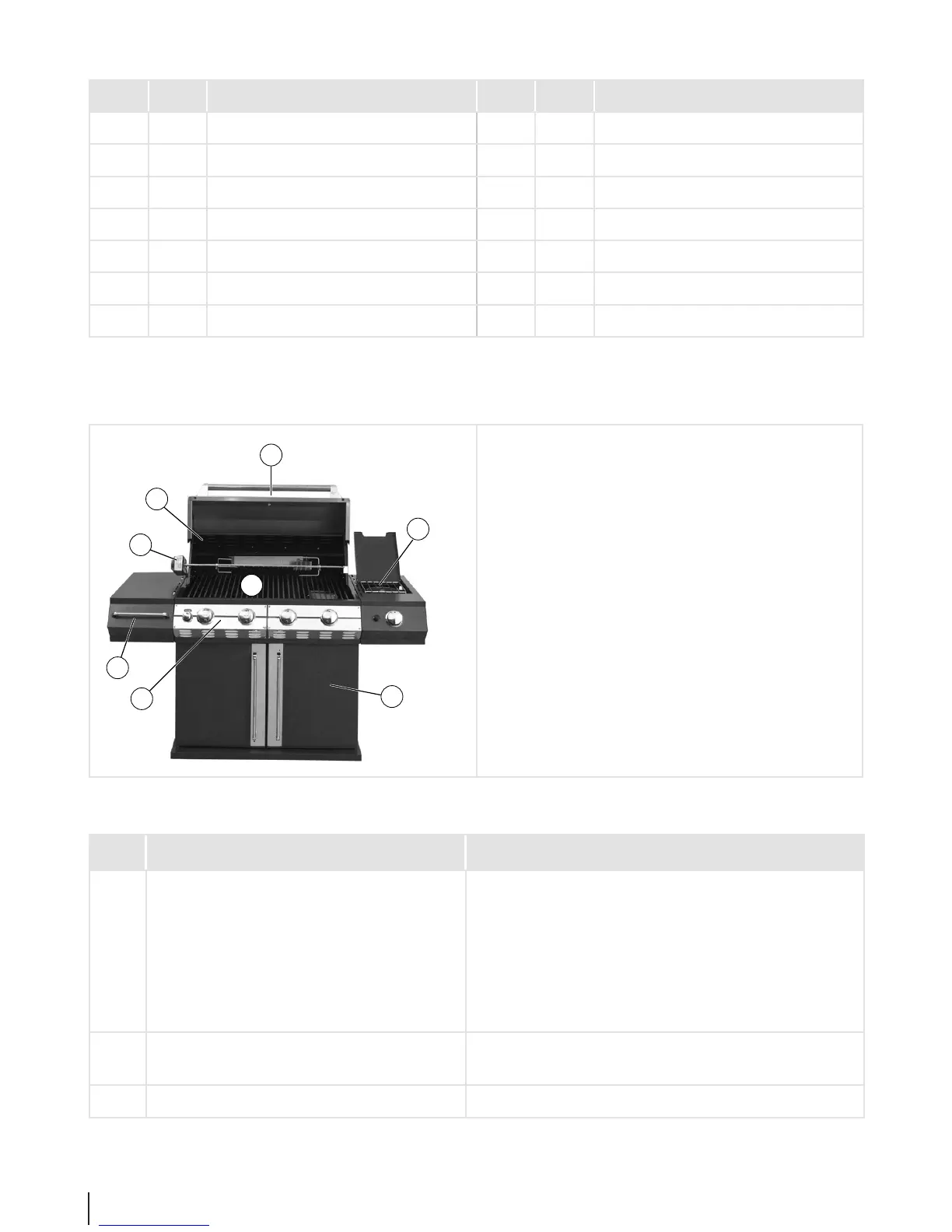

Overview
b
a
c
d
e
h
f
g
a Grill hood, tiltable
b Side burner
c Cart
d Front panel with controls
e Side table
f Cooking grill
g Rotisserie
h Warming rack
Controls
Pos. Designation Function
A1
A2
A3
A4
Flame regulator for:
Main burner 1, 2, 3
Main burner 4 (infrared)
Side burner (infrared)
Rotisserie burner (infrared)
Gas supply to the respective burner…
• Open (ame on)
• regulate (ame size = heat supply)
• close (ame o)
B Ignition (electric) When the ame regulator is open, the gas ignites on the
burner (for all burners)
C Electric motor Drive unit for rotisserie with on/o button and power cord
