Landmann 12794 - Function

5
LANDMANN

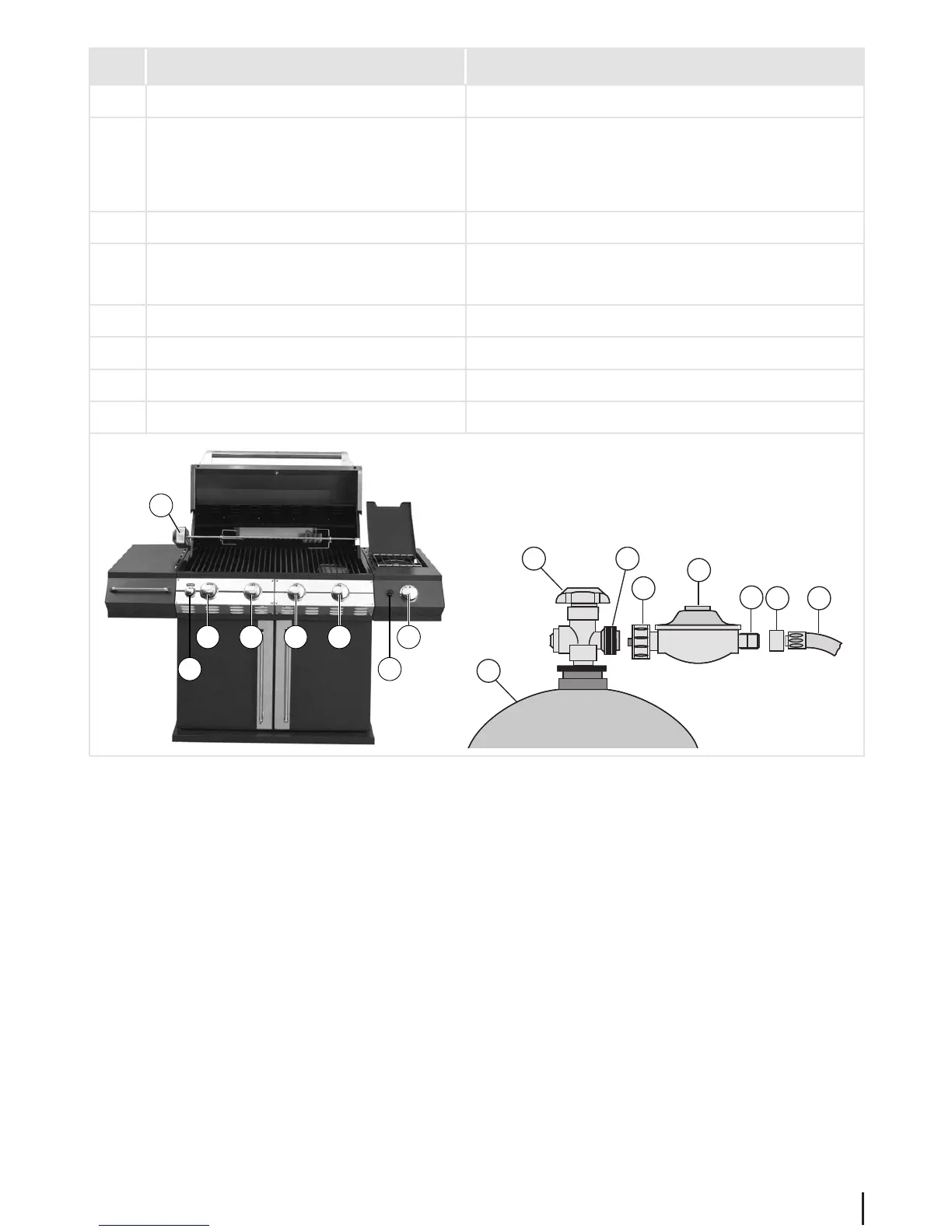

Pos. Designation Function
G0 Gas cylinder Fuel container
G1 Cylinder valve Separating protective device
• To open the gas cylinder: turn anti-clockwise (left)
• To close the gas cylinder: turn clockwise (right)
G2 Cylinder valve thread Gas cylinder - pressure regulator connection
G3 Coupling nut pressure regulator • Connecting the gas cylinder: turn anti-clockwise
• Disconnecting the gas cylinder: turn clockwise
G4 Pressure regulator Reduce gas pressure
G5 Connecting thread pressure regulator Pressure regulator - gas hose connection
G6 Coupling nut Pressure regulator - gas hose connection
G7 Gas hose Feeds gas to the burners
A1 A1 A1 A2 A3
A4 B
C
G1 G2
G3
G4
G5
G6 G7
G0
Function
When the cylinder valve (G1) and ame regulator (A) are open gas ows through the gas hose (G7) and into the correspond-
ing burner. A battery-operated igniter generates sparks on the burners which ignite the gas. The heat can then be controlled
by using the ame regulators (A). If the gas supply is closed via a ame regulator (A), the ame is extinguished.
