Landmann 31342 - Assembling the Barbecue Lid

9
LANDMANN
s3
s3
9
10
w2
w2

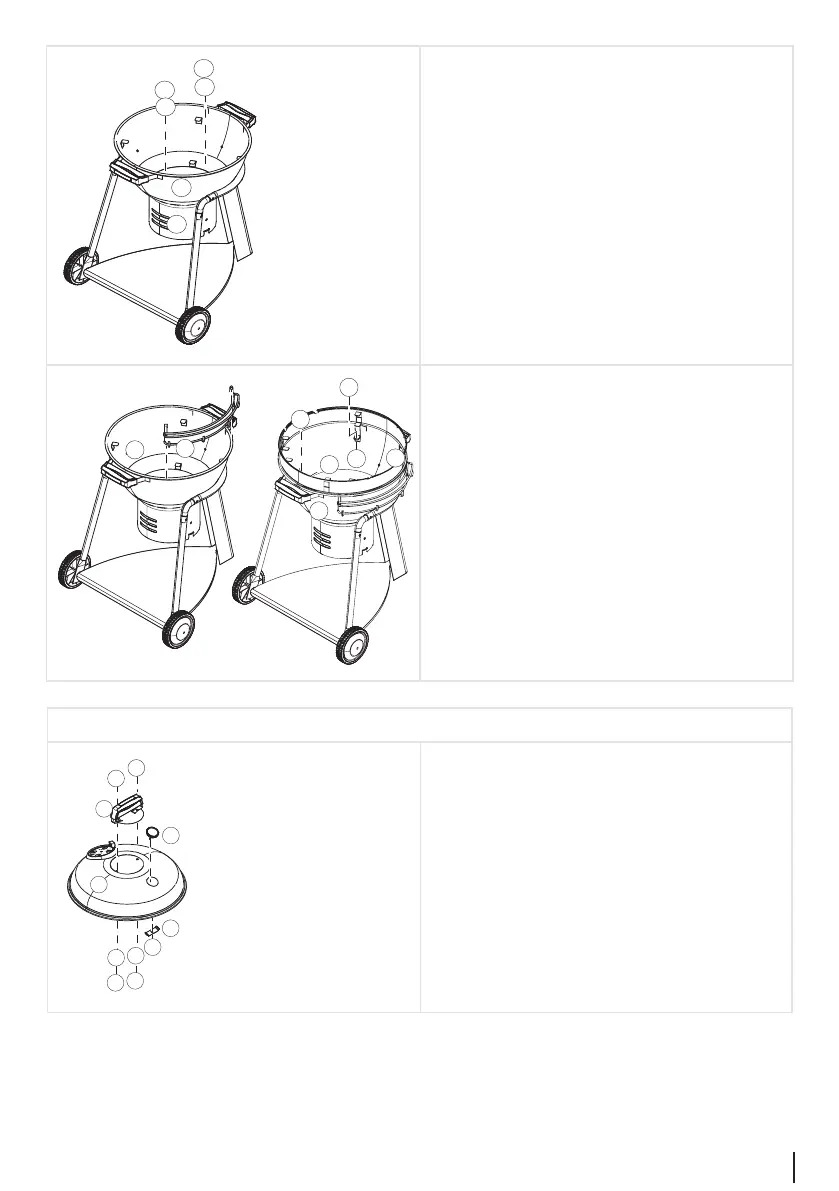

10. Position the ue (10) below the re bowl (9) and
screw the two parts from above.
When doing this use two M6x15 mm bolts (s3) and Ø
6.5/20 mm washers (w2).
n3
s2
s2
n3
11
9
9
12
11. Hook the cutlery holder (11) on the edge of the re
bowl (9).
12. Place the OptiHeat cooking grill support (12) onto the
edge of the re bowl (9) so that its indentations are
facing to the side. The handles of the OptiHeat cooking
grill will be inserted into these indentations later).
Secure the OptiHeat cooking grill support (12) to the
re bowl by using two M5 x 10 mm bolts (s2) and two
M5 nuts (n3).
Assembling the lid
15
13
14
M
w2
w2
n2
n2
15
s3
s3
13. Screw the lid handle with integrated heat protection
(13) to the lid (14) by using two M5 x 10 mm bolts (s2)
and two M5 nuts (n3).
14. Screw the thermometer set (15), consisting of ther-
mometer, mount and nut (n3), to the lid (14).
