Landmann 42170 - Step 11: Final Cart Frame Securing; Step 12: Grill Body Preparation; Step 13: Attach Grill Body

10
Assembly Instructions

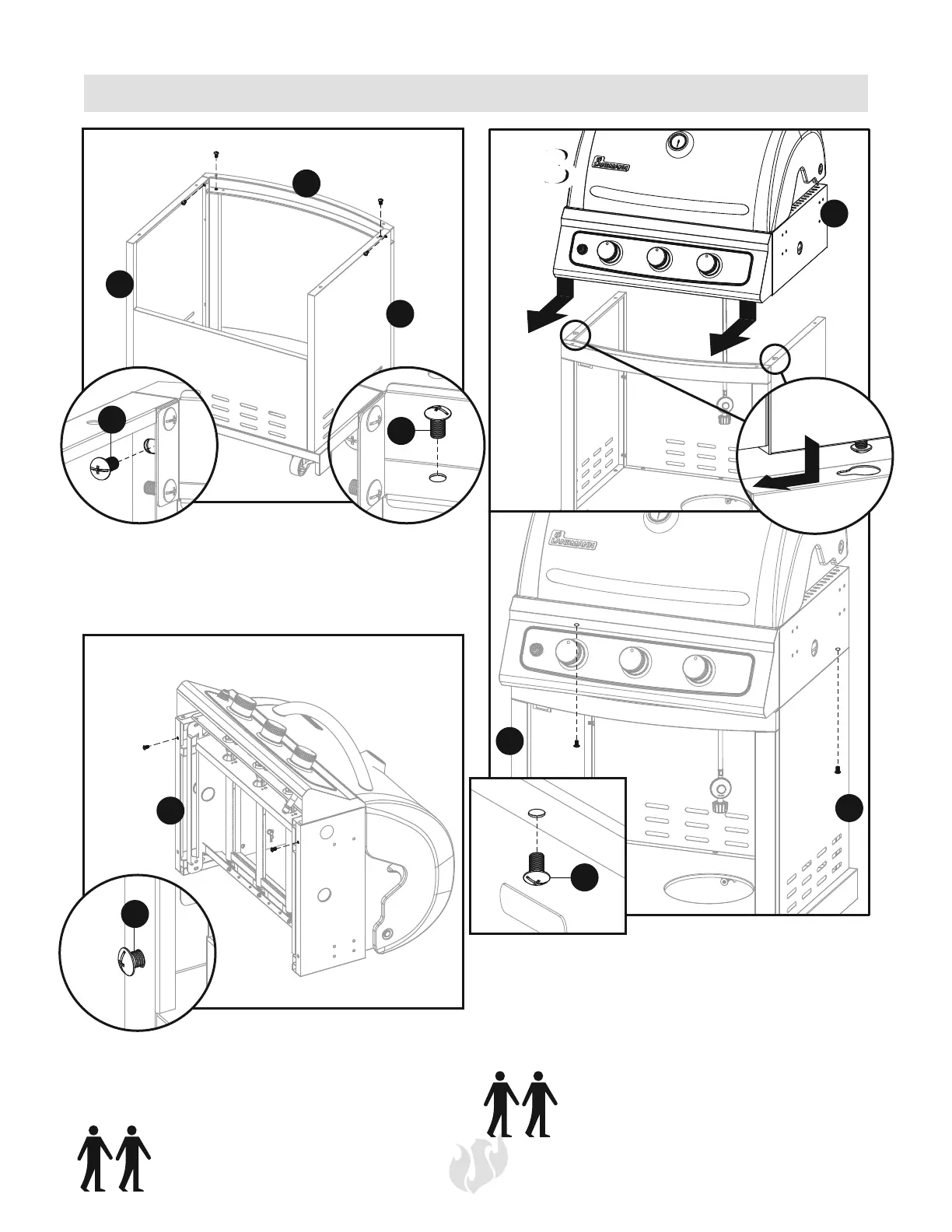

Lower grill body (J) onto left and right side panels
(E, F) and align bolts from step 12 with keyholes on
top of side panels. Slide grill body forward. Insert
bolts (AA) into back bolt location. Securely tighten all
four bolts underneath grill body.
IMPORTANT NOTE:
This step requires two people to properly
and safely position and attach the grill
body.
J
E
F
AA
1313
11
E
H
F
AA
AA
12
J
AA
Finish securing cart frame (H) to side panels (E,F) with
additional bolts (AA) as shown.
Carefully place the grill body (J) on its back. Insert
bolts (AA) into the two bolt locations closest to the
front of grill body. Insert these bolts ONLY half way.
IMPORTANT NOTE:
This step requires two people to properly
and safely position the grill body.
