L&W LW 225 E - Replace Inlet and Outlet Valve 2 nd Stage

Page A - 61
A
LW 225 E / LW 245 B
Version: 19.11.2015
Replace in- & outlet valve 1st stage

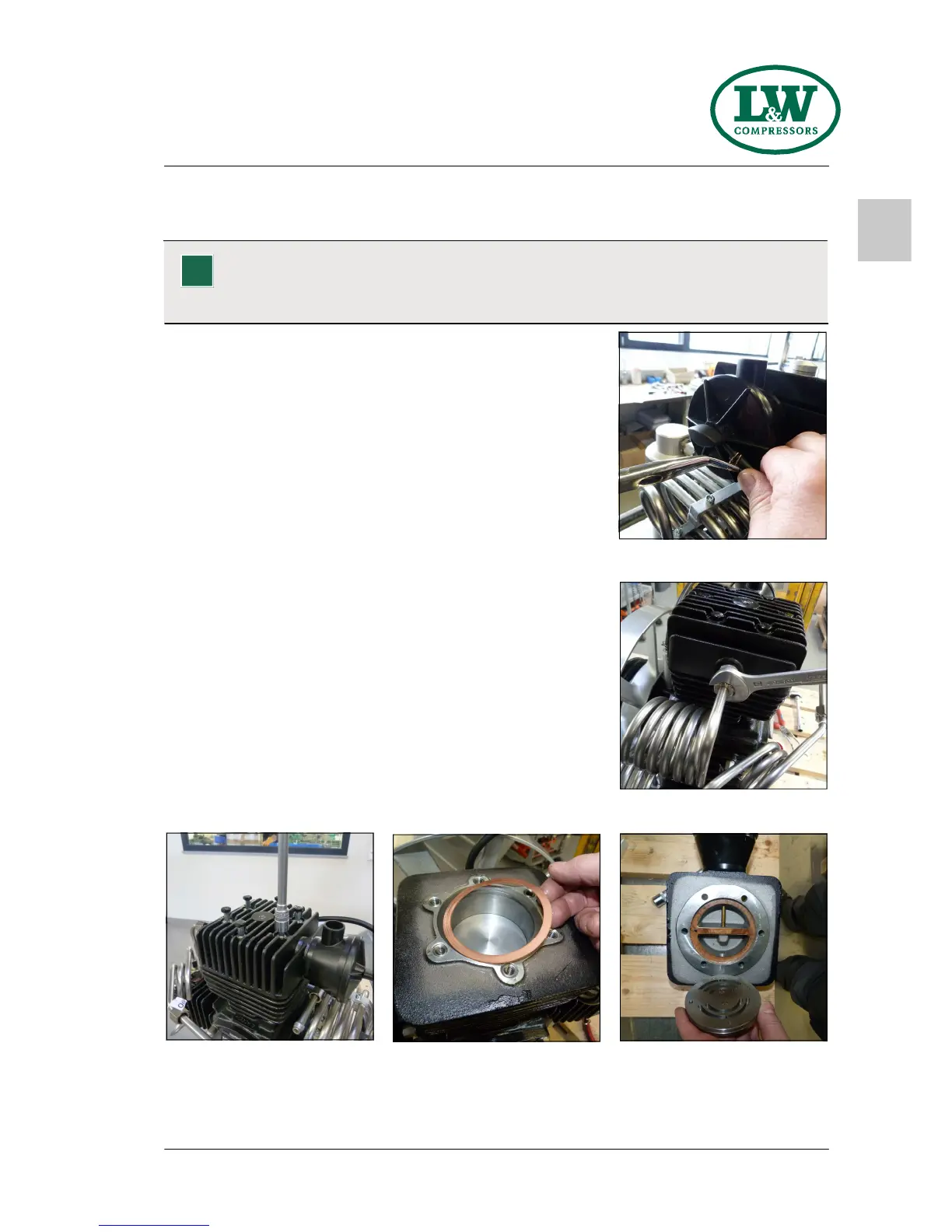

Replace the inlet and outlet valve 1st stage as follows:
• Disconnect spring wire clamp at the ventilation hose (Fig. 1).
• Loosen pipe connections (Fig. 2).
• Remove valve head screws (Fig.3).
• Check valve head if defective (check centre pin)
• Remove lower valve gasket (Fig. 4).
• Remove in– and outlet valve (Fig.5.).
• Remove upper valve gasket.
Install inlet / outlet valve - see following page .
Note
The figures can differ from the delivered parts.
i
Fig. 5 - Remove in– and outlet valve
Fig. 2 - Pipe connection
Fig. 4 - Lower valve gasket
Fig. 3– Valve head screws
Fig. 1 - Spring wire clamp
