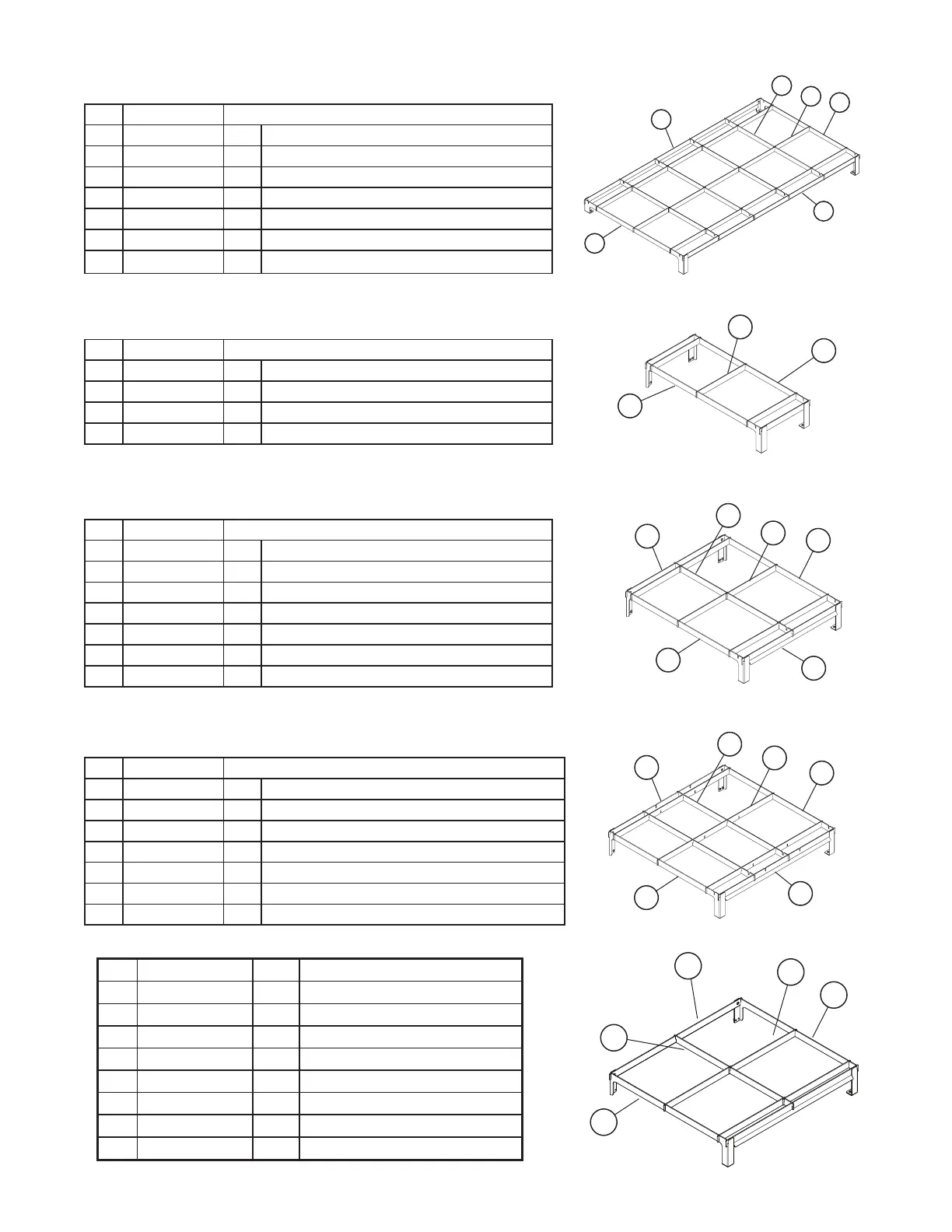

Part No. Qty Description
50302-300-1 SEARAIL ASSY 5’ {500} SK
A 50302-305 1 SEARAIL LH SIDE {ADD,RF & 500}
B 50302-306 1 SEARAIL RH SIDE {ADD,RF & 500}
C 50302-317 15 SEARAIL SIDE TO SIDE 12”
D 50302-315 4 SEARAIL FR TO BK {ADD,RF,500}
E 50302-309 2 SEARAIL FR & RR 5’
20109-04 10 SCREW THD MS SS 10-32X 3/8
20301-34 2 NUT HEX ACORN 10-32 S/S
A
C
B
D
E
E
Part No. Qty Description
50302-304-1 SEARAIL ASSY 1’ RT30 SK
A 50302-307 1 SEARAIL LH SIDE RT30
B 50302-308 1 SEARAIL RH SIDE RT30
C 50302-317 5 SEARAIL SIDE TO SIDE 12”
20109-04 6 SCREW THD MS SS 10-32X 3/8
A
C
B
Part No. Qty Description
50302-302-1 SEARAIL ASSY 2’ RT30/32 SK
A 50302-307 1 SEARAIL LH SIDE RT30
B 50302-308 1 SEARAIL RH SIDE RT30
C 50302-317 6 SEARAIL SIDE TO SIDE 12”
D 50302-316 1 SEARAIL FR TO BK RT30
E 50302-311 2 SEARAIL FR & RR 2’
20109-04 6 SCREW THD MS SS 10-32X 3/8
20301-34 2 NUT HEX ACORN 10-32 S/S
A
C
B
D
E
E
Part No. Qty Description
50302-295-1 SEARAIL ASSY RT30 DBL W/GRD SK
A 50302-307 1 SEARAIL LH SIDE RT30
B 50302-308 1 SEARAIL RH SIDE RT30
C 50302-314 3 SEARAIL SUPPORT RT30 W/GRIDDLE
D 50302-316 2 SEARAIL FR TO BK RT30
E 50302-313 2 SEARAIL FR&RR RT30 W/GRIDDLE
20109-04 8 SCREW THD MS SS 10-32X 3/8
20301-34 2 NUT HEX ACORN 10-32 S/S
E
A
C
B
D
E
Lang Manufacturing Searail Assembly continued
Part No. Qty Description
P9-50302-302-2 1 SEARAIL ASSEMBLY - RTI30
A P9-50302-307-1 1 SEARAIL-LH SIDE-RTI30
B P9-50302-308-1 1 SEARAIL-RH SIDE-RTI30
E P9-50302-316-1 1 SEARAIL-FRT TO BCK-RI30
D P9-50302-311-1 2 SEARAIL-FRONT-RTI30
C P9-50302-317-2 4 SEARAIL-CROSS BRKT-RTI30
2C-20109-04 8 SCRW THD MS SS 10-32X3/8
2C-20301-34 2 NUT HEX ACORN 10-32 S/S
C
D
A
B
E
