Lang RT36A - Searail Assembly Information

18
2M-W1091, Commerical & Marine Electric Range Top 2M-W1091, Commerical & Marine Electric Range Top
2M-W1091, Commerical & Marine Electric Range Top 2M-W1091, Commerical & Marine Electric Range Top

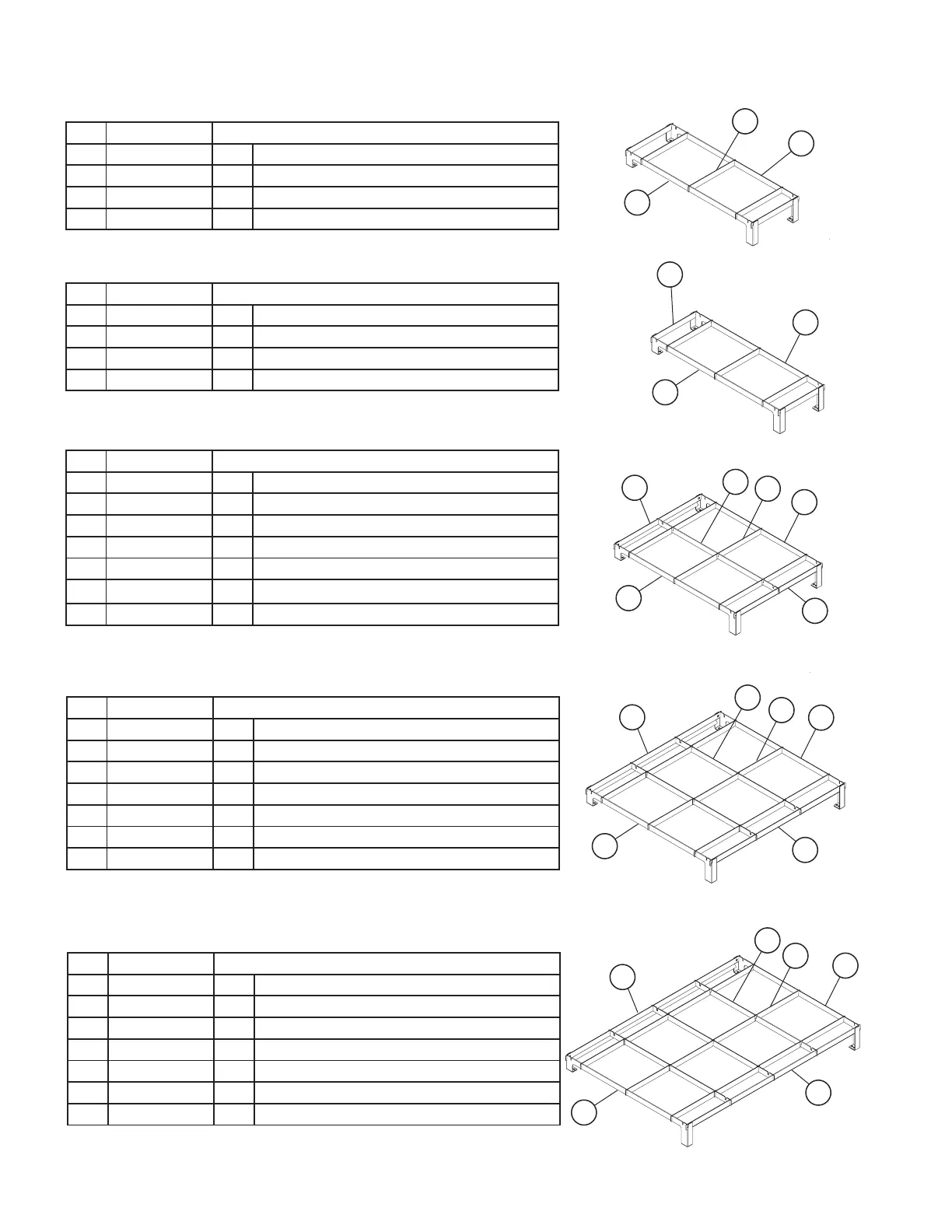

Part No. Qty Description
50302-297-1 SEARAIL ASSY 1’ {RF&500} SK
A 50302-305 1 SEARAIL LH SIDE {ADD,RF & 500}
B 50302-306 1 SEARAIL RH SIDE {ADD,RF & 500}
C 50302-317 5 SEARAIL SIDE TO SIDE 12”
20109-04 8 SCREW THD MS SS 10-32X 3/8
A
C
B
Part No. Qty Description
50302-298-1 SEARAIL ASSY 2’ {RF&500} SK
A 50302-305 1 SEARAIL LH SIDE {ADD,RF & 500}
B 50302-306 1 SEARAIL RH SIDE {ADD,RF & 500}
C 50302-317 6 SEARAIL SIDE TO SIDE 12”
D 50302-315 1 SEARAIL FR TO BK {ADD,RF,500}
E 50302-311 2 SEARAIL FR & RR 2’
20109-04 10 SCREW THD MS SS 10-32X 3/8
20301-34 2 NUT HEX ACORN 10-32 S/S
A
C
B
D
E
E
Part No. Qty Description
50302-301-1 SEARAIL ASSY 3’ (RF&500) SK
A 50302-305 1 SEARAIL LH SIDE {ADD,RF & 500}
B 50302-306 1 SEARAIL RH SIDE {ADD,RF & 500}
C 50302-317 9 SEARAIL SIDE TO SIDE 12”
D 50302-315 2 SEARAIL FR TO BK {ADD,RF,500}
E 50302-310 2 SEARAIL FR & RR 3’
20109-04 10 SCREW THD MS SS 10-32X 3/8
20301-34 2 NUT HEX ACORN 10-32 S/S
E
A
C
B
D
E
Part No. Qty Description
50302-299-1 SEARAIL ASSY 4’ {500} SK
A 50302-305 1 SEARAIL LH SIDE {ADD,RF & 500}
B 50302-306 1 SEARAIL RH SIDE {ADD,RF & 500}
C 50302-317 12 SEARAIL SIDE TO SIDE 12”
D 50302-315 3 SEARAIL FR TO BK {ADD,RF,500}
E 50302-312 2 SEARAIL FR & RR 4’
20109-04 10 SCREW THD MS SS 10-32X 3/8
20301-34 2 NUT HEX ACORN 10-32 S/S
A
C
B
D
E
E
Part No. Qty Description
50302-303-1 SEARAIL ASSY 1’ {ADD} SK
A 50302-305 1 SEARAIL LH SIDE {ADD,RF & 500}
B 50302-306 1 SEARAIL RH SIDE {ADD,RF & 500}
C 50302-318 5 SEARAIL SIDE TO SIDE ADD
20109-04 8 SCREW THD MS SS 10-32X 3/8
A
C
B
Lang Manufacturing Searail Assembly
