INSTALLATION continued
Electrical Connection

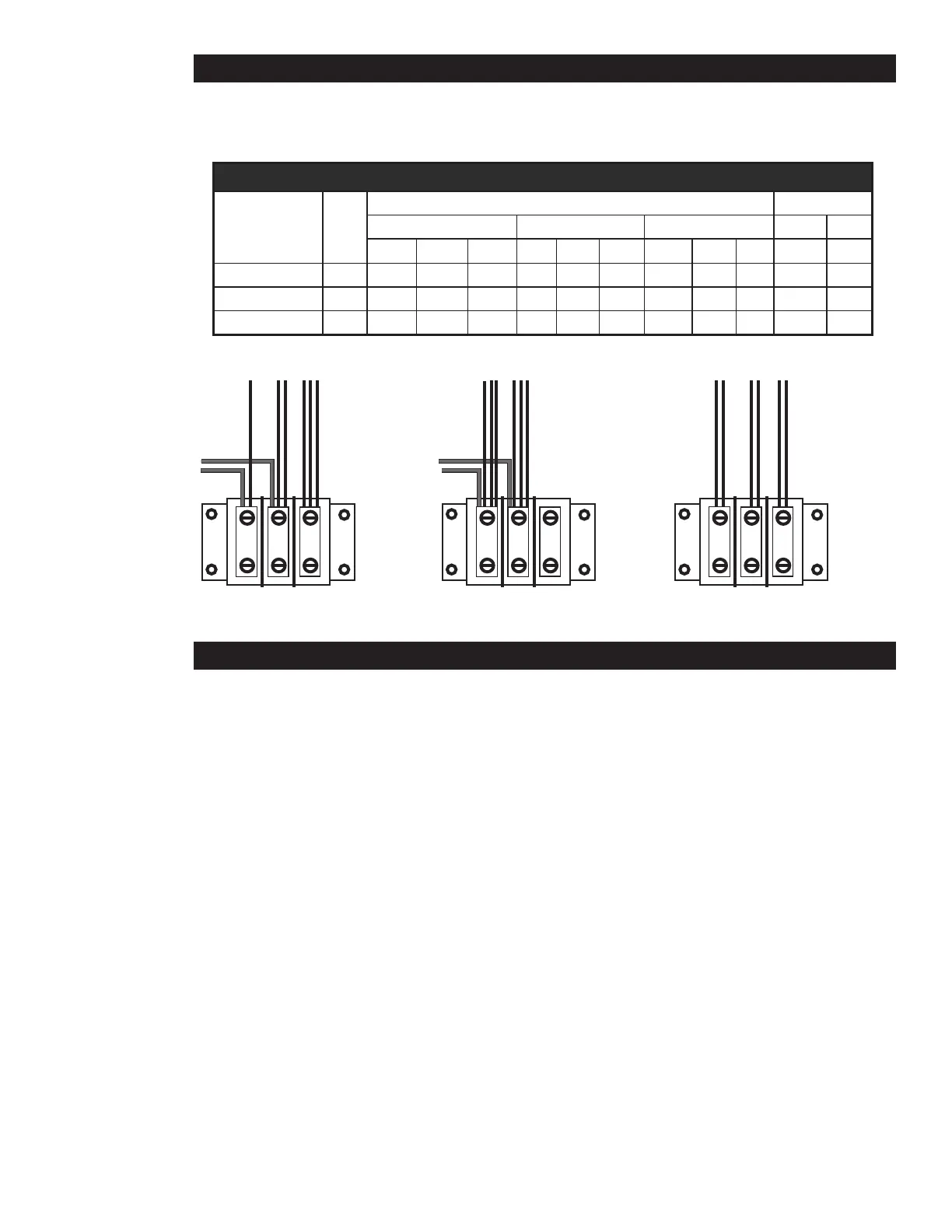

The following table and illustrations provide the voltage and kilowatts necessary to operate the range
and oven
INITIAL START-UP
Hot Plates
To “dry out” the hot plate, set the thermostat dial at 250°F and turn on the power switch. Allow unit
to cycle at least 15 minutes at this heat level. Reset the thermostat to 350°F allowing the same time.
Then reset the thermostat to 450°F allowing the same time. Continue doing this until you reach
850°F then allow the unit to maintain this temperature for a minimum of 4 hours. More time may be
required if the unit has to operate in a moist environment.
If the unit is out of use for three or more days, a one-hour preheat schedule should be used,
especially when exposed to high humidity and/or cool temperatures.
French Plates
To “dry out” the Frenchplate, set the six-heat switch to the rst setting and turn on the power switch.
Allow unit to cycle at least 15 minutes at this heat level. Reset the six-heat switch to position 2 and
allow the same time. Reset the six-heat switch to position 3 and allow the same time. Continue
doing this until you reach position 6 then allow the unit to maintain the temperature for a minimum of
4 hours. More time may be required if the unit has to operate in a moist environment.
If the unit is out of use for three or more days, a one-hour preheat schedule should be used,
especially when exposed to high humidity and/or cool temperatures.
ElectricalSpecications
Range style
Total
k.W.
Three Phase Single Phase
208 Volt 240 Volt 480 Volt 208 V 240 V
L1 L2 L3 L1 L2 L3 L1 L2 L3 L1 L2
Range Top Only 15
41.7 41.7 41.7 36.1 36.1 36.1 18.1 18.1 18.1 72.1 62.5
W / Conv. Oven 21.6 48.3 69.2 62.5 41.9 59.9 54.1 20.5 29.5 27.1 103.8 90
W / Bake Oven 21 45.8 66.7 62.5 39.7 57.8 54.1 19.9 28.9 27.1 101 87.5
3 1,5 2,4,6
TO RANGE
TOP
TO
OVEN
Three Phase with Oven
L1 L2 L3
4,51,3 6,2
TERMINAL BLOCK
RANGE TOP ONLY
Three Phase w/o Oven
L1 L2 L3
2,4,61,3,5
TO RANGE
TOP
TO
OVEN
Single Phase with Oven
L1 L2 L3
IL1412a
