Lanner FW-7525 - Motherboard Layout

Motherboard Layout

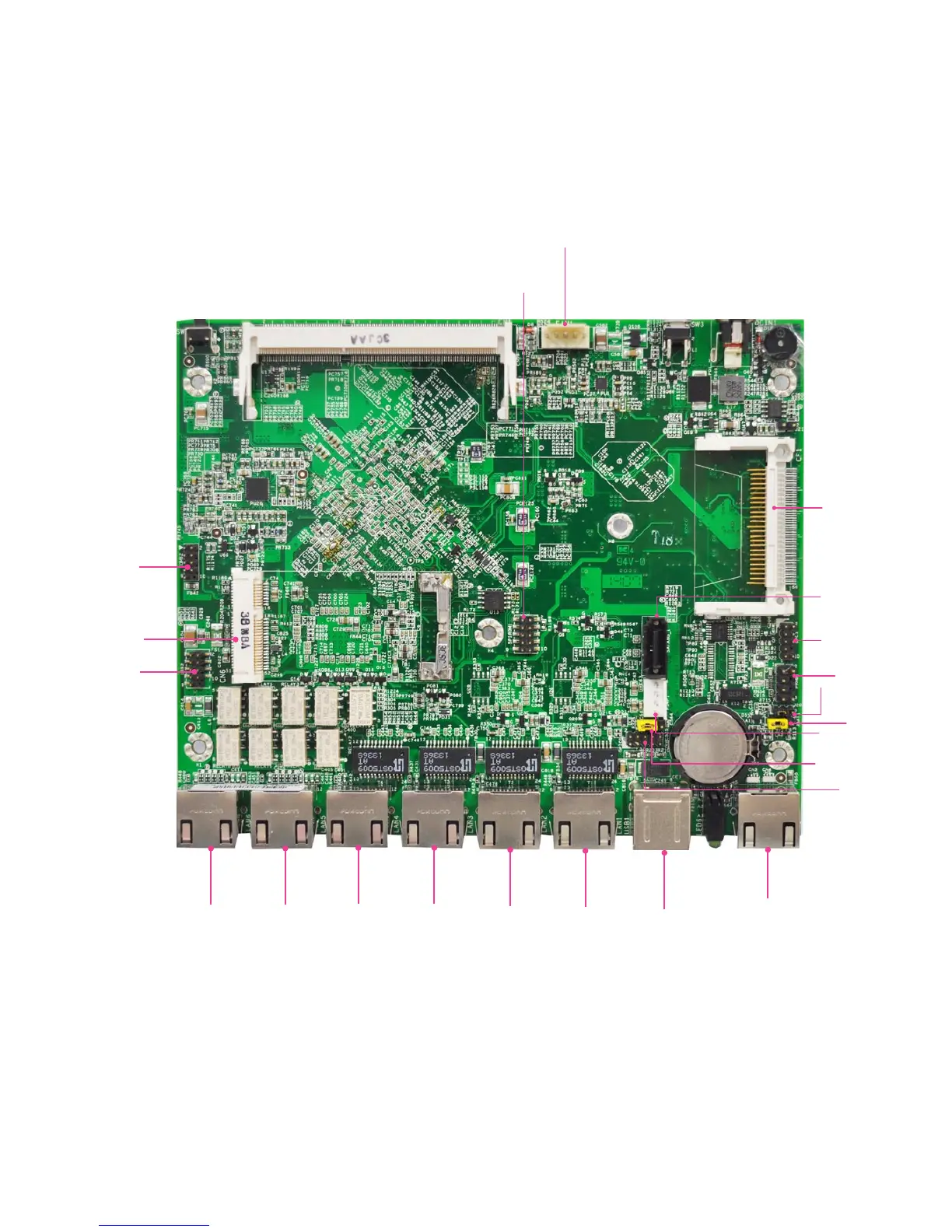

The motherboard layout shows the connectors and
jumpers on the board. Refer to the following picture
as a reference of the pin assignments and the internal
connectors.
FAN1
LAN6
JBAT1
LAN5
LAN4
LAN3
LAN2
LAN1
USB1
COM1
J20
PKMB1
LPC1
MPCIE1
PS4P1
SATA6G_1
GPIO1
SPIROM1
J4
USB2
CF1
COMB2
