Appendix C:
Programming Generation 2 LAN Bypass
Lanner Generation 2 Bypass

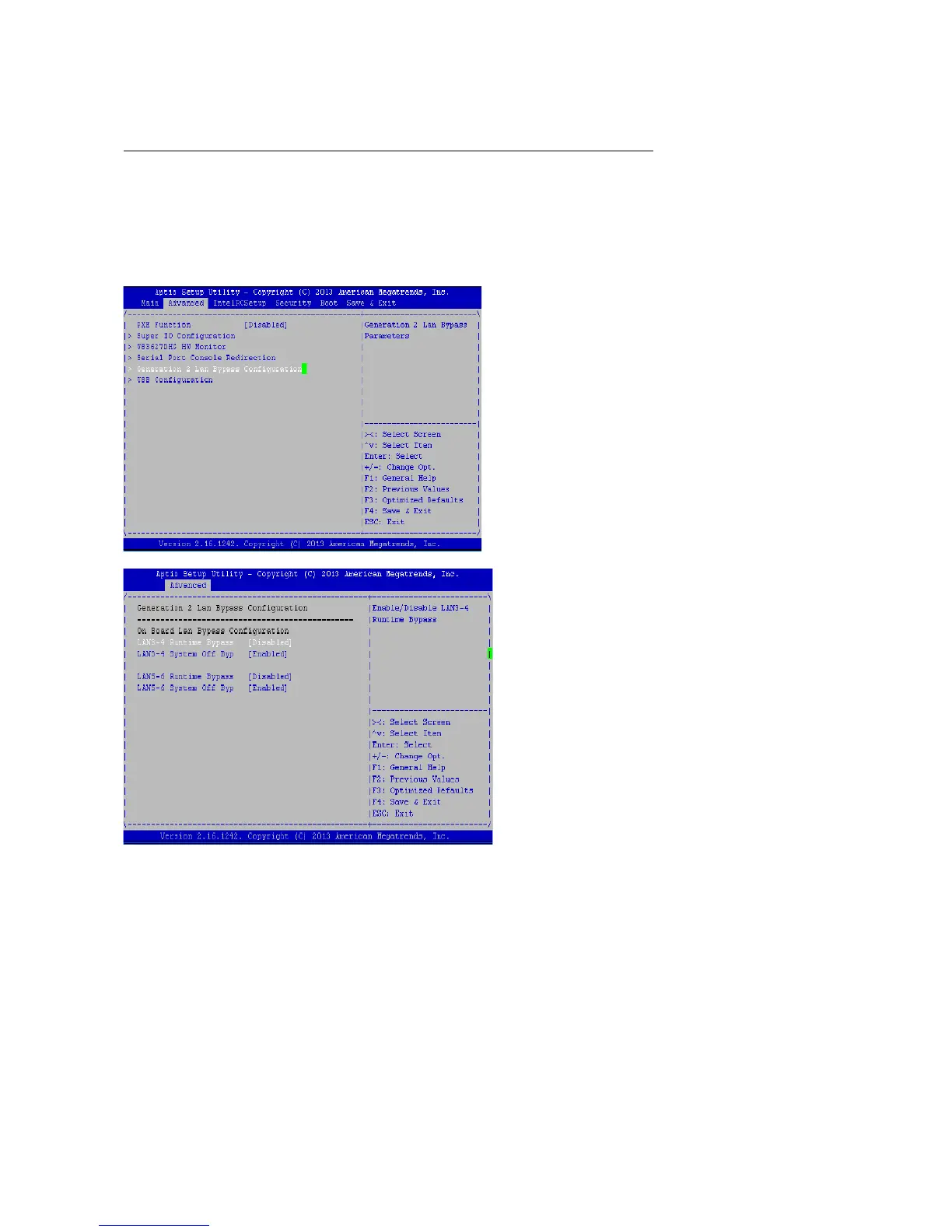

Lanner Generation 2 bypass is configured through the BIOS menu as shown below:
There are two ways to enable the bypass on the system:
The LAN bypass can be turned on or off in two system states, i.e., power on 1.
(Runtime Bypass) and power off (System Off Bypass). The following are the
illustration of the possibilities of LAN bypass configuration with respect to both
power-on and power-off states.
