NCA-1516 User Manual
27

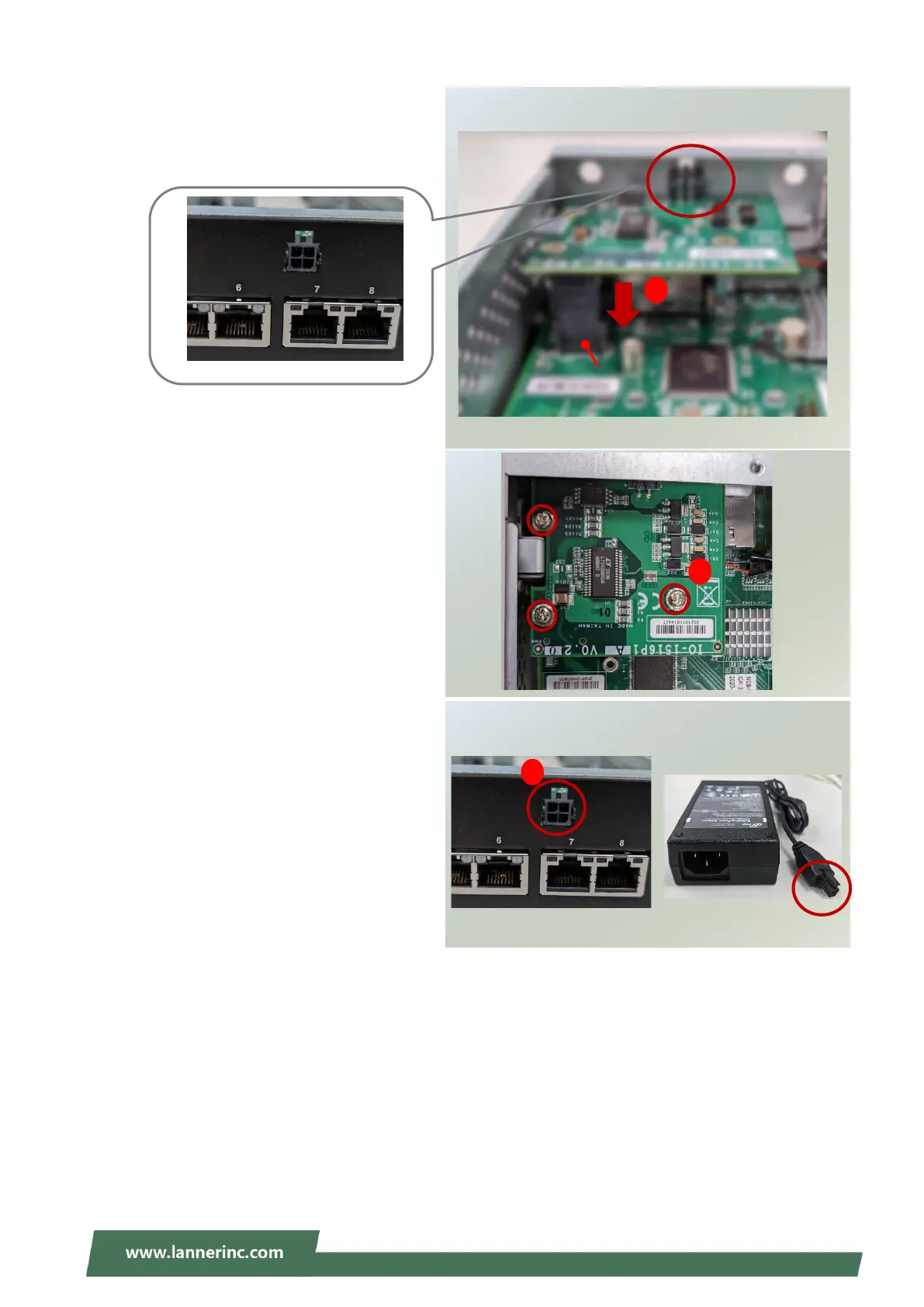

6. Align the top power source pin to the
chassis rear opening spot, and insert the
bottom pins into JPOE connector pins.
7. Screw in the original three (3) screws to
secure the PoE module board.
8. Connect the power source pin to the
power adapter.
Power Source Pin
JPOE Connector Pins
Rear Panel View
6
7
8
