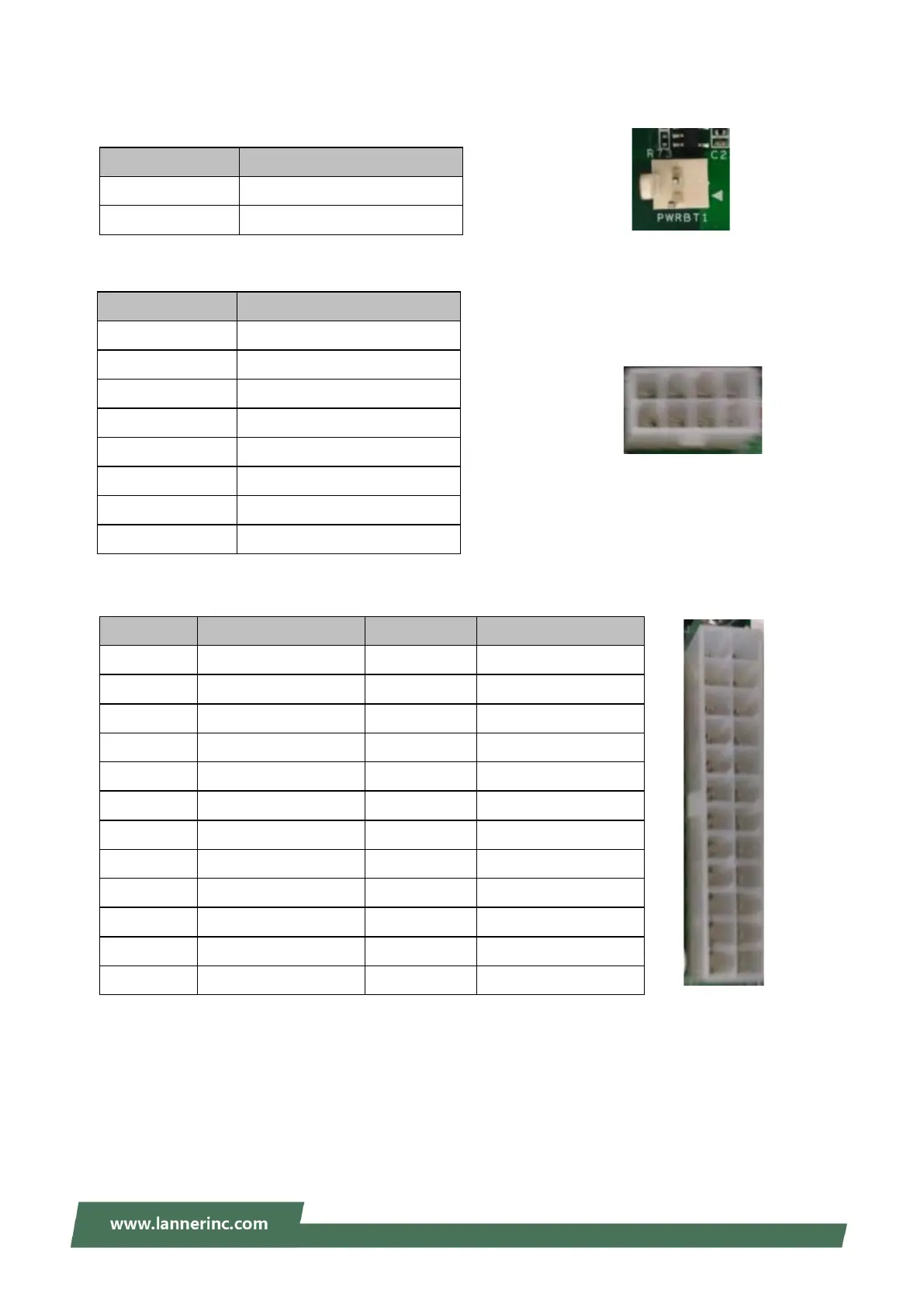

Connector Pin Assignments
PWBT1: ATX Power ON switch
Pin
Description
1
GND
2
SWIN_IN
ATX1: 8-pin Power Connector
ATX2: 24-Pin ATX Power Connector
Pin
Description
Pin
Description
1
+3.3V
2
+3.3V
3
+3.3V
4
-12V
5
Ground
6
Ground
7
+5V
8
PSON-
9
Ground
10
Ground
11
+5V
12
Ground
13
Ground
14
Ground
15
Power Good
16
NC
17
Stand-By 5V
18
+5V
19
+12V
20
+5V
21
+12V
22
+5V
23
3.3V
24
GND
Pin
Description
1
GND
2
+12V
3
GND
4
+12V
5
GND
6
+12V
7
GND
8
+12V
