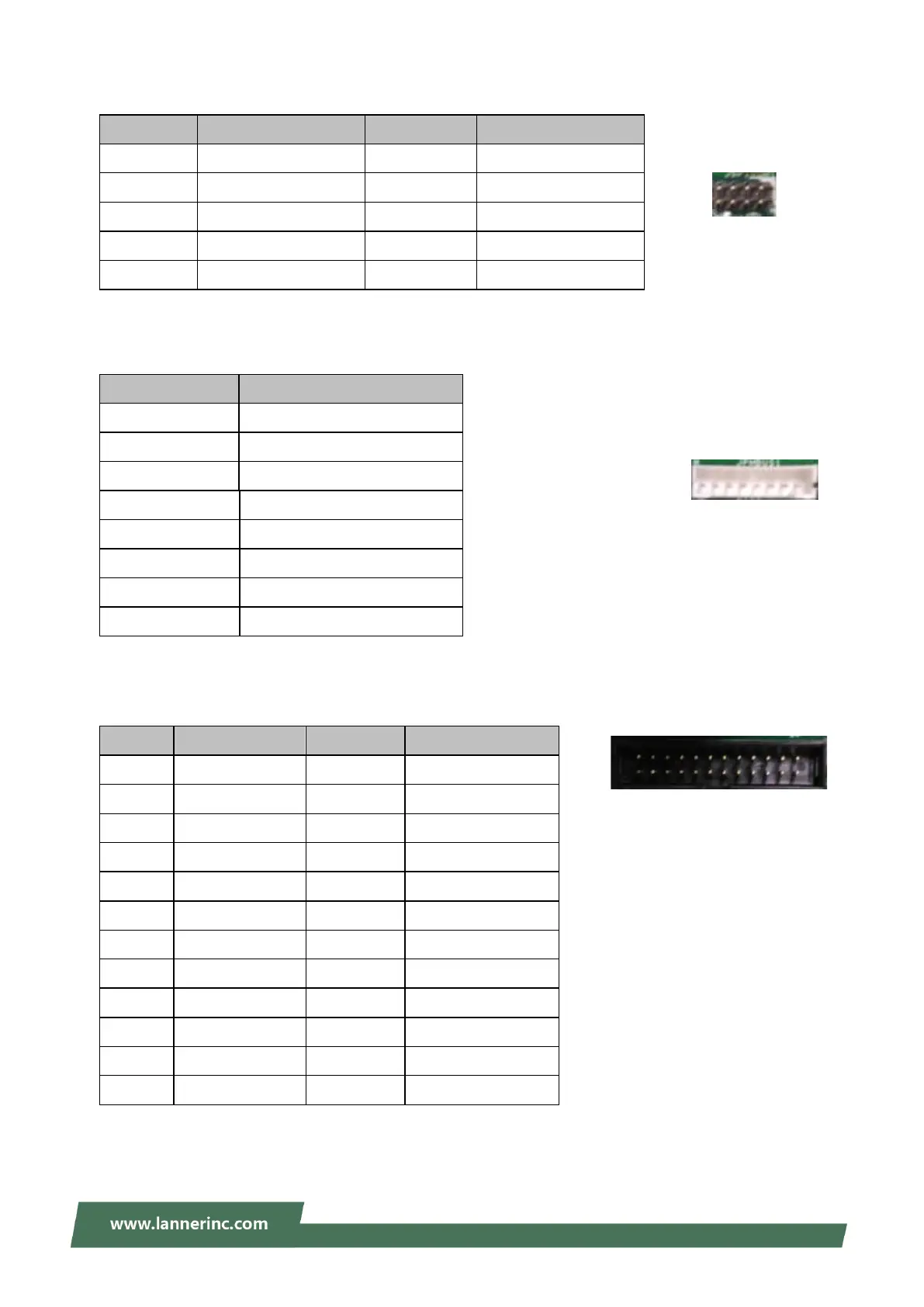

Lanner NCA-5210 - JSPIROM1: SPIROM BIOS Programming pin header; JPMBUS1: Redundant PSU PMBUS Connector; JLCM1: 24-Pin LCM w;key Connector

23
JSPIROM1: SPIROM BIOS Programming pin header
Pin
Description
Pin
Description
1
NC
2
NC
3
SPI_CS0-
4
+3.3V
5
SPI_MISO
6
HOLD-
7
Key
8
SPI_CLK
9
Ground
10
SPI_MOSI
JPMBUS1: Redundant PSU PMBUS Connector
Pin
Description
1
RDPW_TTL1
2
RDPW_TTL2
3
NC
4
GND
5
NC
6
PMBUS_CLK
7
PMBUS_DATA
8
+5V
JLCM1: 24-Pin LCM w/key Connector
Pin
Description
Pin
Description
1
+5V
2
Ground
3
SLIN_N
4
+VEE
5
AFD_N
6
INT_N
7
FL_PD1_R
8
FL_PD0_R
9
FL_PD3_R
10
FL_PD2_R
11
FL_PD5_R
12
FL_PD4_R
13
FL_PD7_R
14
FL_PD6_R
15
LCM_LCD_N
16
+5V
17
KEY_UP
18
KEY_RIGHT
19
KEY_LEFT
20
KEY_DOWN
21
LCM_RST_N
22
CRT_GRN_R
23
CRT_YLW_R
24
HD_LED_N
