Lanner NCA-5210 - Installing mSATA Module

39

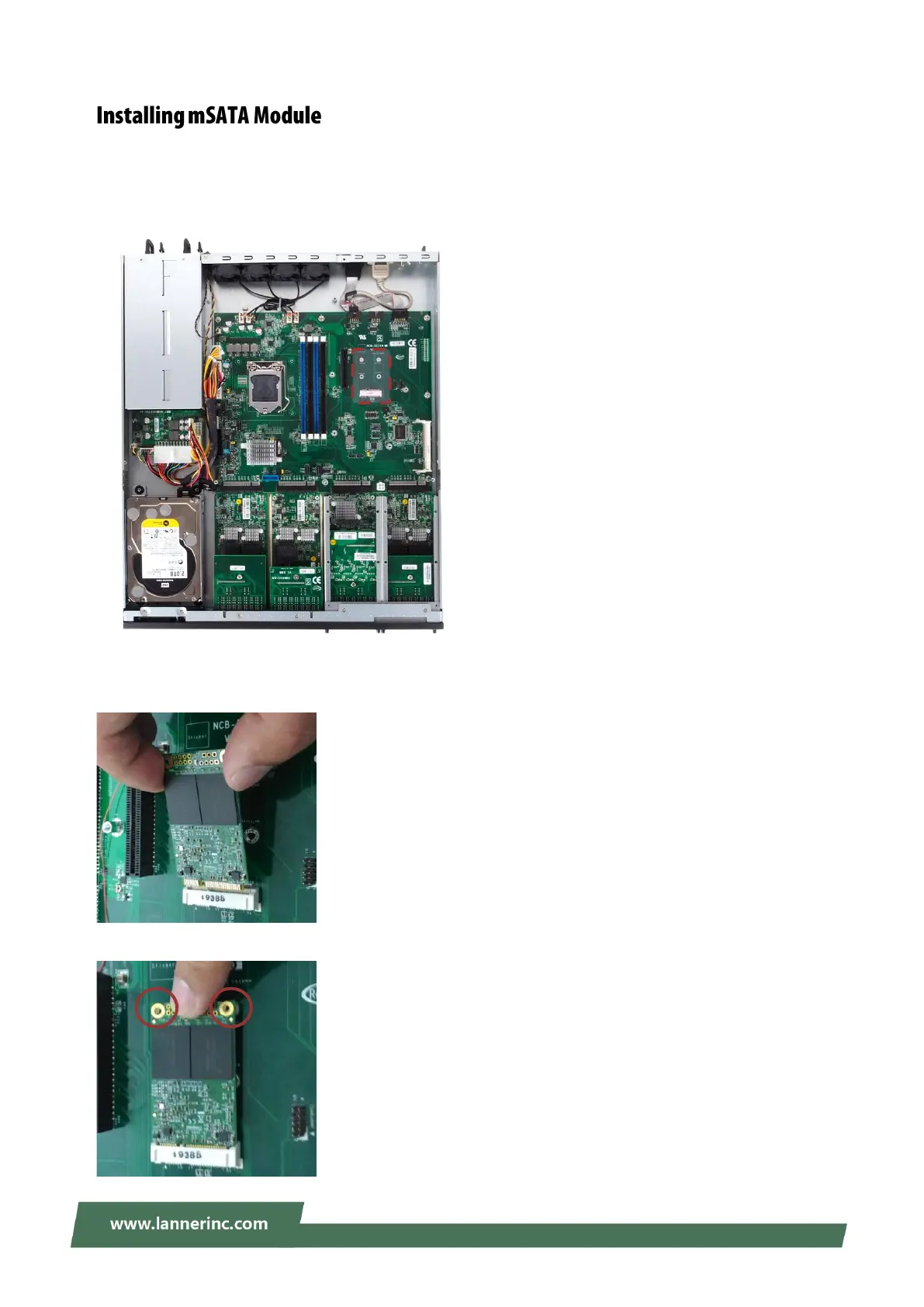

The motherboard provides one mSATA slot. Follow the procedures below for installing a mSATA card.
1. Locate the mSATA socket.
2. Insert a mSATA module as shown in the image below card. Remember to align the module keys between
the module and the socket.
3. Press the module down and apply two screws to secure it.
