Product overview
3.1
Product components
1 2
8
3
4
5
6
7

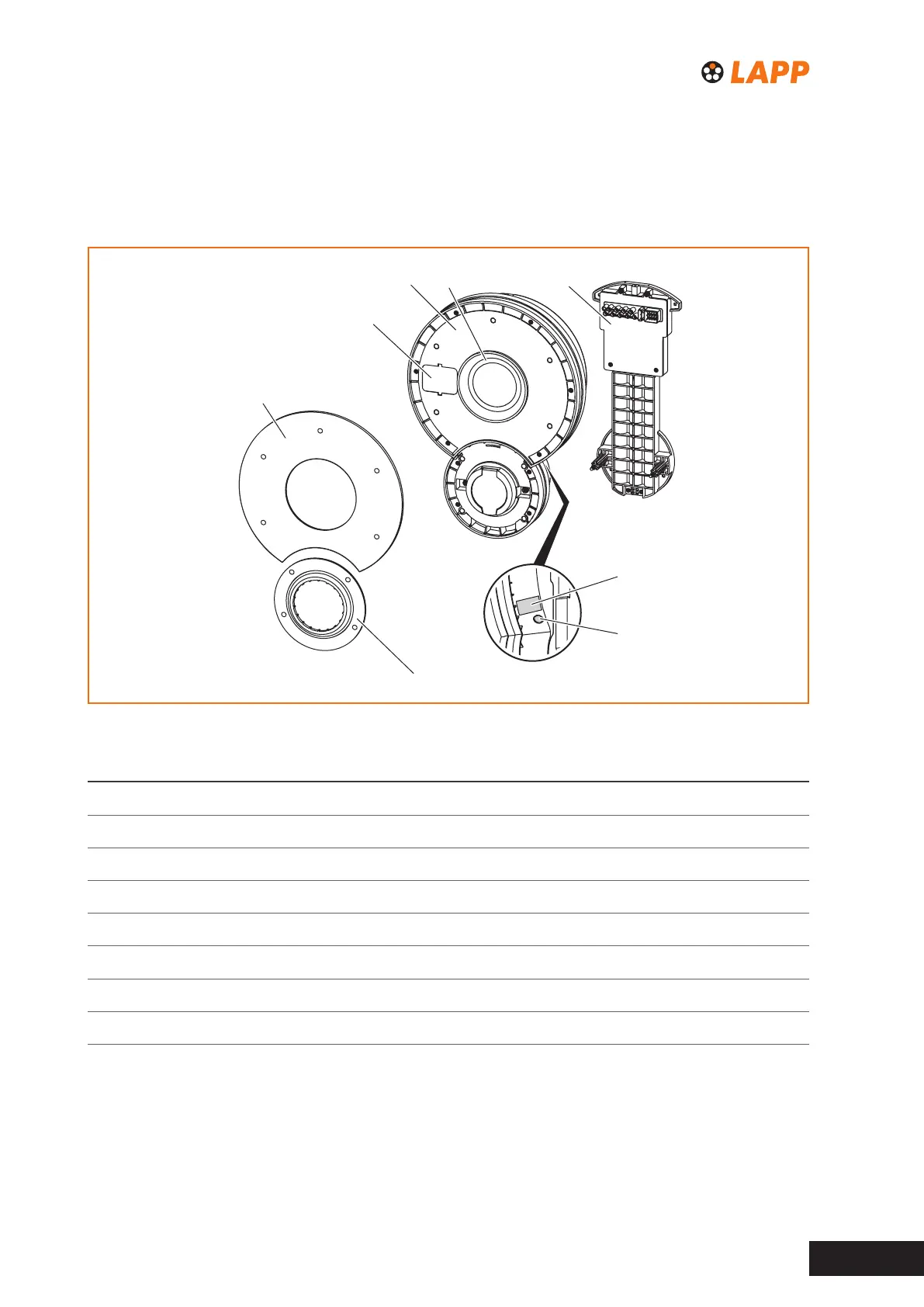

Fig. 1 Overview of the product components
Pos. Name Description
1 Housing
2 LED display for displaying the operating status
3 Mounting plate for mounting the product on a wall
4 Nameplate with serial number and connection data of the product
5 On/off button for switching the product on and off
6
Cover, small
7
Cover, big
8 Maintenance lid for testing the optional residual current circuit breaker
