CLEANING AT THE END OF THE WORK

• Reduce pressure to the minimum (turn counterclockwise (L1)

the pressure control knob).

• Open the safety valve to release the pressure in the circuit.

• Lift the suction pipe and replace the product tank with that

of the solvent (ensure it is compatibie with the product being

used).

• Unscrew the gun nozzle (do not forget to clean it with solvent

or water if you used hydrosoluble paints).

• Make sure the solvent recycles from the return tube.

• Close the safety valve.

• Point the gun at the product tank and, keeping the trigger

pressed, release the remaining product till a clean solvent

comes out. Now, release the trigger.

• Lift again the suction pipe and remove the solvent tank.

• Now point the gun at the solvent tank and press the trigger

SQ as to recover the residual soivent.

• In case of long storage, we recommend you to suck and

to leave light mineral oil inside the pumping group and the

flexible hose.

Follow the washing procedure before using

again the equipment.

ROUTINE MAINTENANCE

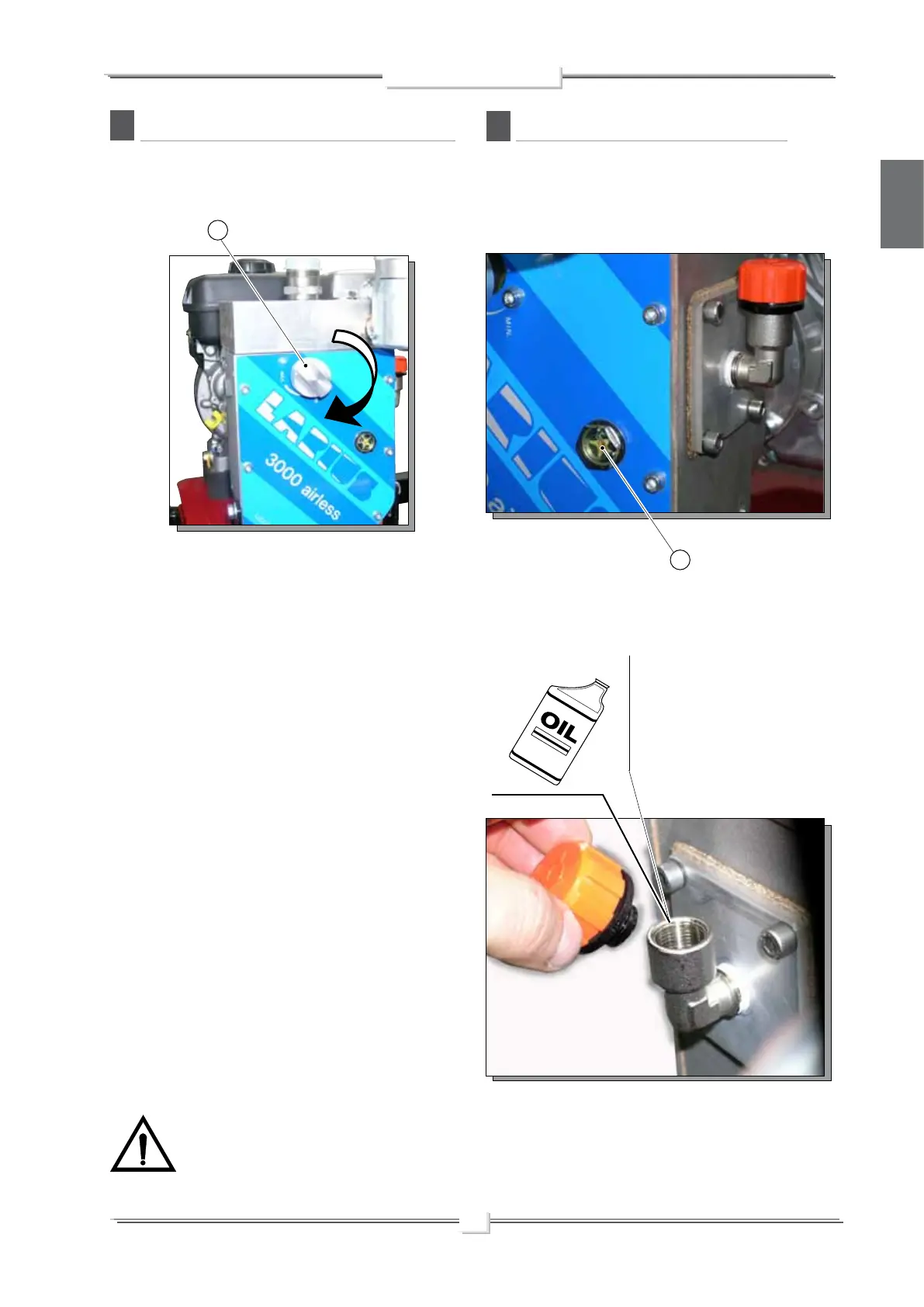

HYDRAULIC GROUP OIL CHECK (AFTER 300 HOURS)

Check the oil level in the oil hydraulic unit each time, by checking

the relevant monitoring LED (M1).

The first oil change should be made after 200-300 hours of use.

ESSO NUTO H32 oil is supplied with the unit.

 NOTES:

For questions relating to the internal combustion engine, see

the Instruction Manual for the engine.
