4
3000
English
D

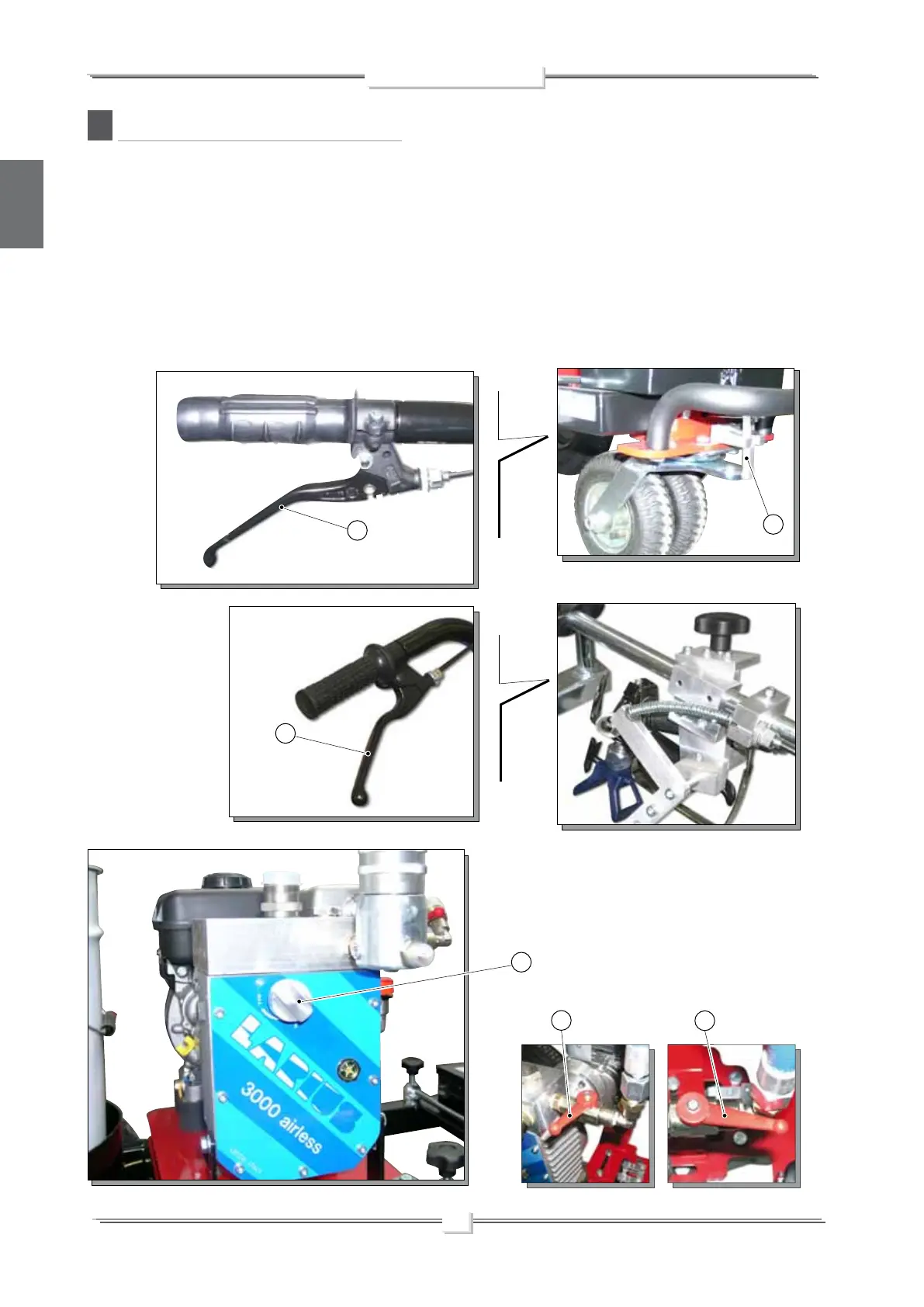

CONTROLS DESCRIPTION
D1) Steerage lever.
Pulling the lever the straight only "mode" will be unlocked (a)
allowing the machine to run.
D2) Gun operating lever.
Pulling the lever the gun will spray.
NOTE: To obtein a broken line push and release the
lever.
D3) Pressure control knob.
- Turn anticlockwise to adjust at the minimum;
- Turn clockwise to increase the pressure;
D4) Recirculating valve.
-Turn anticlockwise to close;
-Turn clockwise to open;
Closed valve Open valve
Pressure
control knob
Internal gun
operating lever
Steerage lever
D1
D2
D3
D4
D4
a
