LMH Series Rotary Lasers • 31
(4) Up Arrow and (5) Down Arrow–Grade Adjustment Y-Axis – Only
in manual mode.
(6) CCW and (7) CW – positions the laser in Spot and Sweep modes.
(8) Scan/Sweep Mode – places instrument in Scan/Sweep Mode and
adjusts to preset angles.
(9) Manual – Places the instrument in manual grade if ADS is not
selected. In laydown position, allows manual adjustment
(10) Sleep – places the instrument into a “Sleep” mode by shutting
down all functions except front panel LEDs. Pressing any other
remote button will put the instrument back into it’s last mode of
operation. The instrument will shut off after 2 hours if no other
remote button is pressed.
LEFT
RIGHT
SWEEPROTATE
Remote is designed for use with rotary laser models–
all control buttons may not be used for some lasers.
Refer to chart above (n/a– no function).
Function Buttons
Sweep/Scanning– Preset Angles
Variable Speed Rotation
Clock-wise Head Positioning
Counter-clock-wise Head Positioning
Line Positioning (Vertical)– Left, Right
n/a
CCW CW

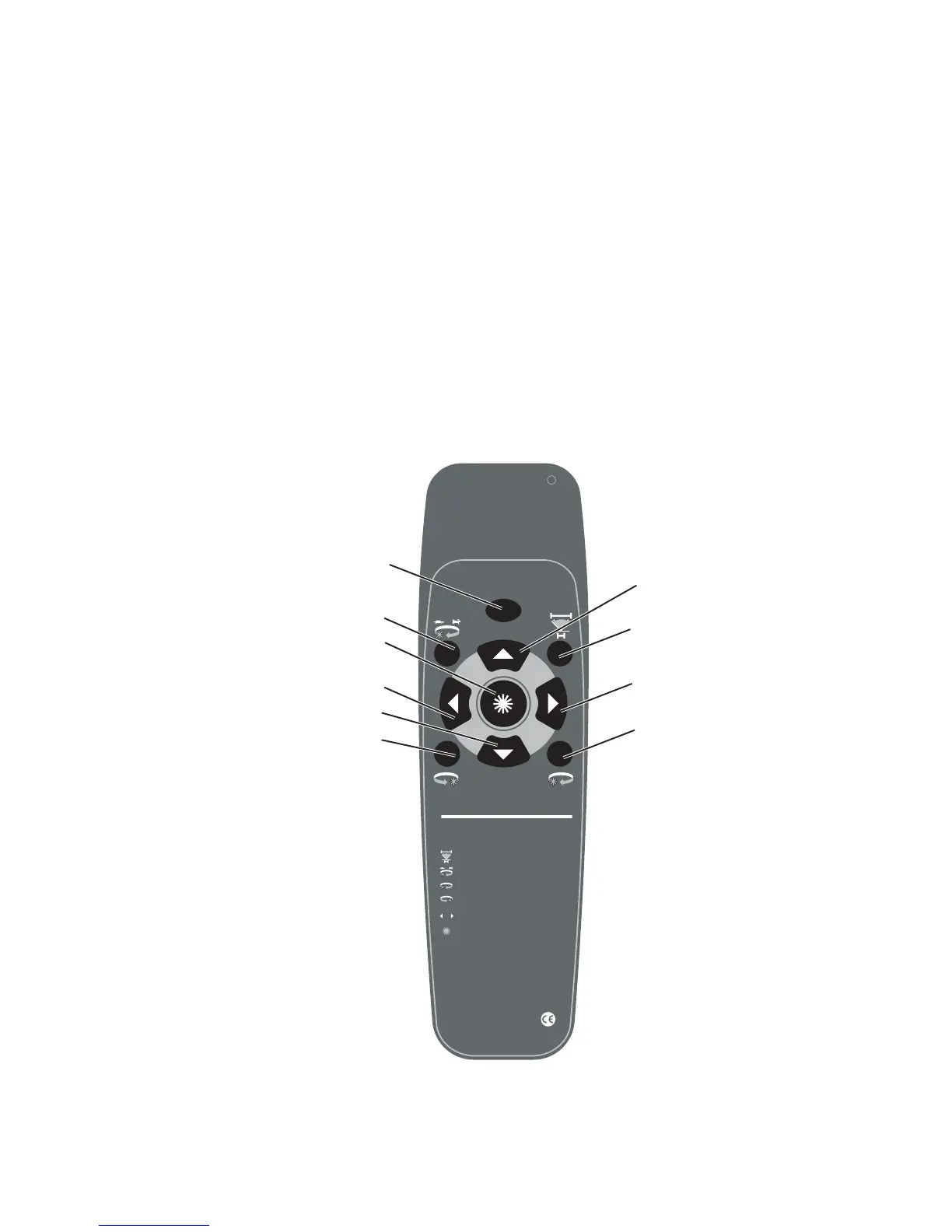

RC700
Remote Control
Rotary Laser Levels
9
6
5
2
1
10
7
3
8
4
