6 • LMH Series Rotary Lasers
1. LMH600 FEATURES

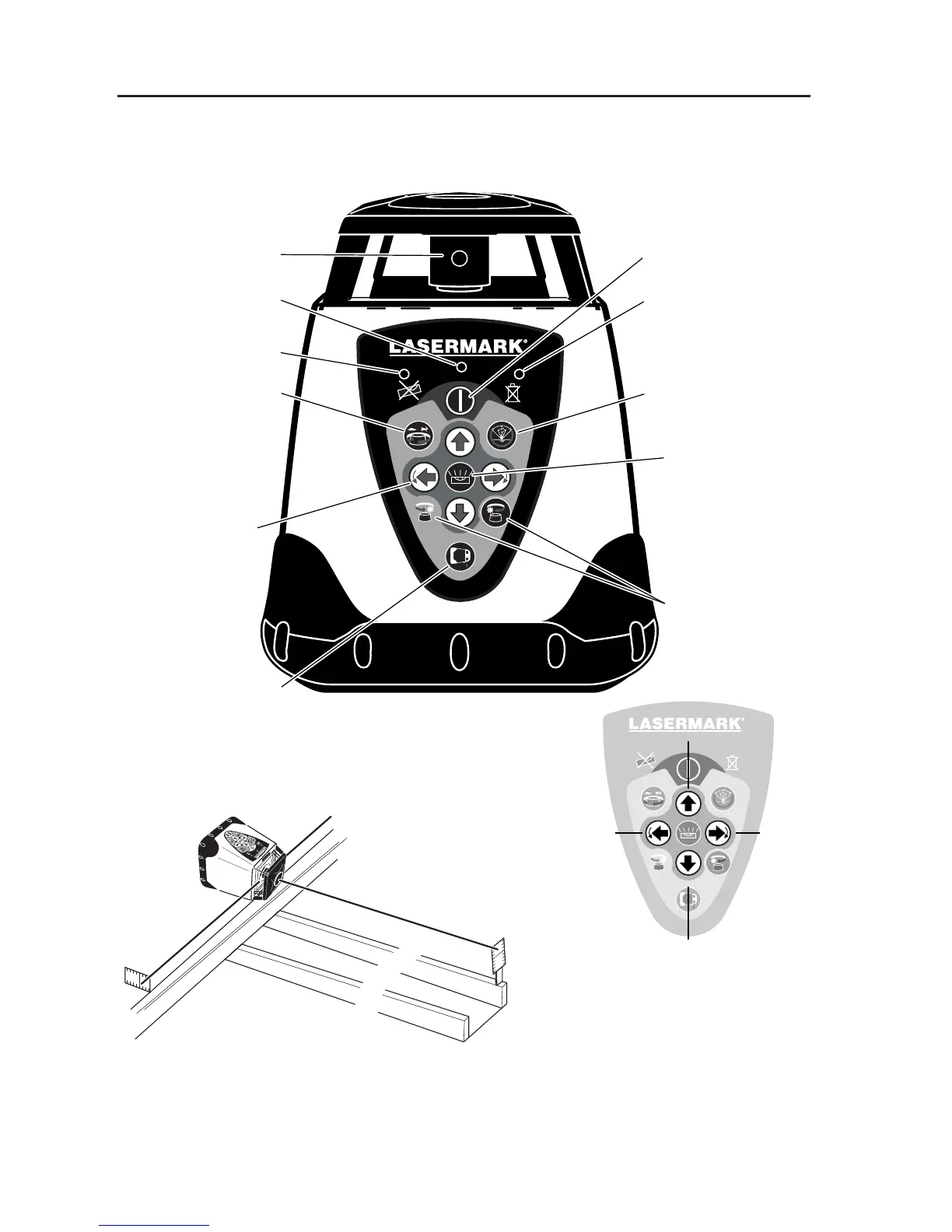

LMH600 Self-Leveling Rotary Laser
Battery Compartment Access/
5
⁄
8
" x 11 Tripod Mounting Thread
Self-Leveling
Rotating Laser Head
Battery Low LED
Power On LED
Variable Speed
Rotation Button
Four Speed Selection.
Speed Decreases
Each Time Button is Pressed
Power On/Off
Button
Out-of-Level Indicator LED
Scan Mode Button
Scanning to Preset
Angles of 10º, 15º,
45º, 90º and 180º to
Increase Visibility
Manual Grade Button
Turns unit to manual
mode to allow
manual grade setting
Head Positioning Button
for Fast and Easy
Alignment in Vertical/
Horizontal Applications,
Clock-Wise and Counter-
Clock-Wise Rotation.
Pressing and Holding
Button Moves the
Rotating Beam more Quickl
Auto Beam Positioning
Button. Positions the
Laser Dot in Plumb
Down Position
(Vertical Mode), for
Vertical Laydown Set-ups
Button also used in normal
operation to activate ADS
Manual Grade/Slope
Setting Buttons
LOCATION OF
CALIBRATION BUTTONS
LMH600 Self-Leveling Rotary Laser
X
Y
LMH600 Shown
To Next Page
