LaserPoint s.r.l.- Plus2 Power & Energy Meter Instruction Manual - All Rights Reserved 4

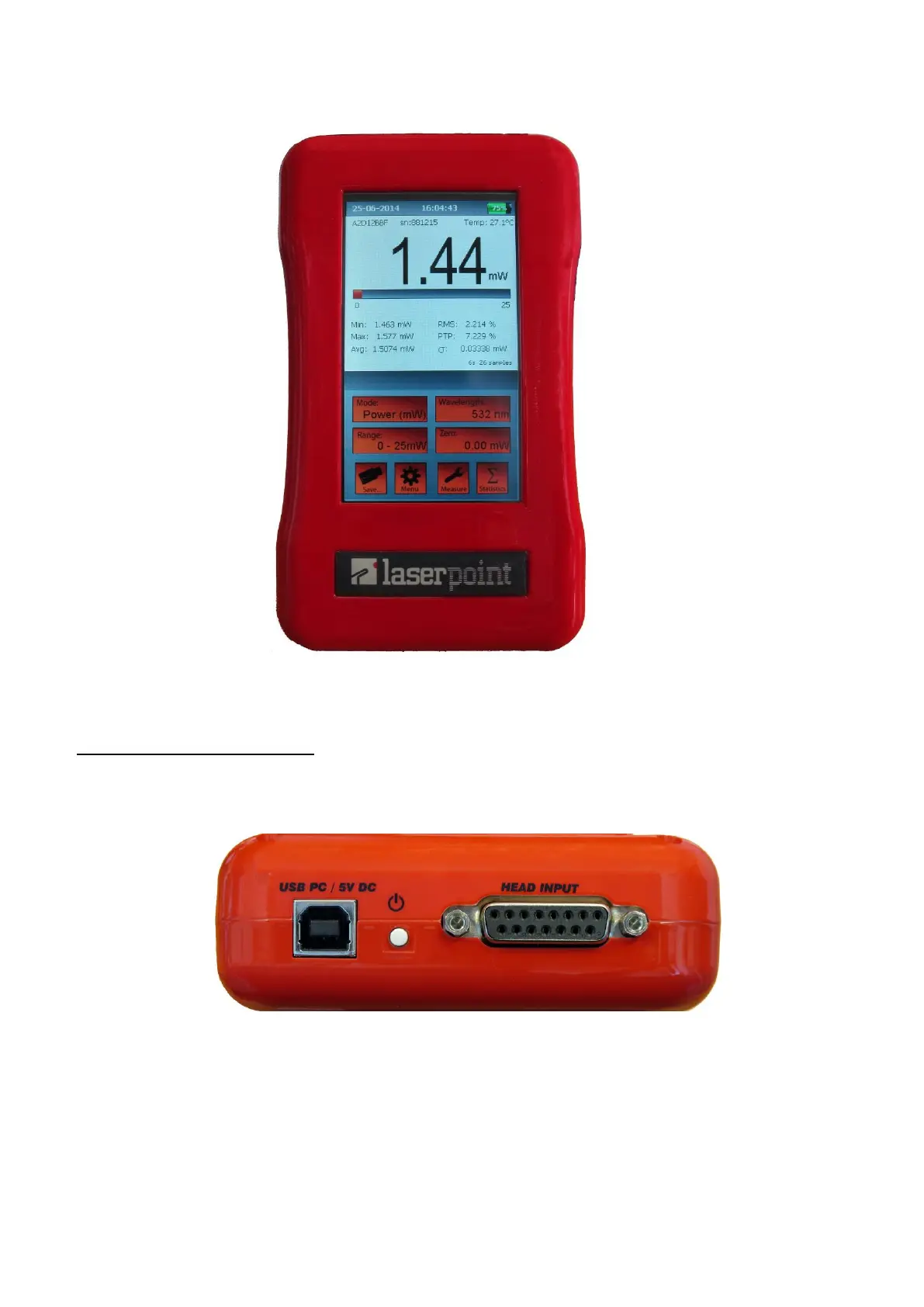

Fig.1 Front view of Plus 2 power/energy meter
Instrument switches and ports- The instrument TOP side, shown in Fig. 2, hosts the white On/Off switch, the
external power supply cable USB plug and one DB 15 pin connector as the input port for all LaserPoint
power/energy head signals.
Fig. 2 Top view of Plus 2 power/energy meter
Ext
Power
supply
On-Off
switch
15 Pin
connector
socket DB15
