The light blue conductor lead of cable (A) is connected to the neutral phase of the electrical system.

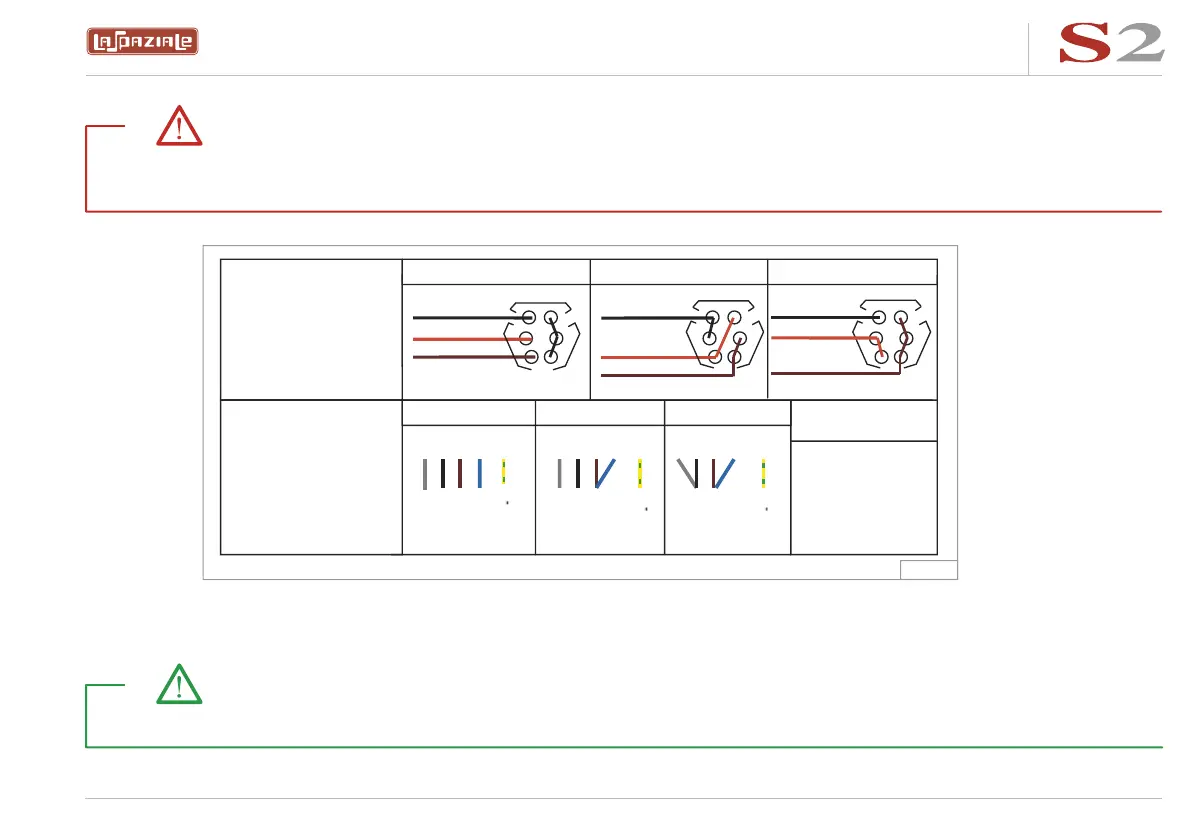

Below the electric diagram for 3 ph machine.
Danger!
230V single-phase connections are only possible with rating plate data of 5000 W or lower.
Take note!
RED
RED
RED
BLACK
HEATING ELEMENT
CONNECTION
V400 / 3 Ph V230/ 3Ph V230/ 1 Ph
BROWN
BROWN
BROWN
BLACK
BLACK
POWER CABLE
CONNECTION
V400/ 3Ph V230/ 3Ph V230/ 1Ph
WIRES OF POWER CABLE
A = GREY
B = BLACK
C = BROWN
D = LIGHT BLUE
E = YELLOW
GREEN
A B
C
D E A B
C
D E A B
C
D E
L1 L2 L3 N L1 L2 L3 1 N
PHASES NEUTRAL GROUND
PHASES
PHASE NEUTRAL
GROUND
GROUND
Fig. 5
