espresso coffee machines
LSI 022 - Rev. 00 - Ed. 12/2015
12

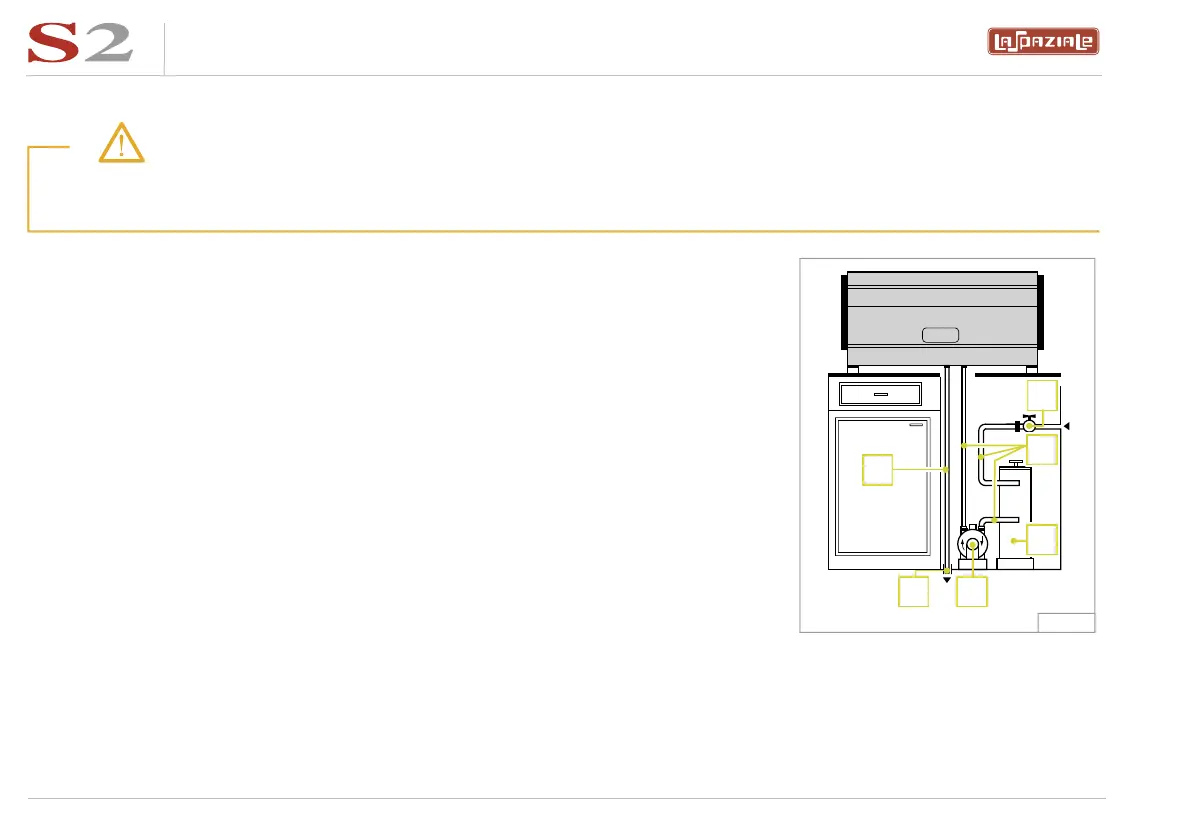

4.2 WATER MAINS INSTALLATION DIAGRAM
Carry out the connections as shown in Fig. 6 and taking into account the following instructions:
• Always use the hoses supplied with the machine to make water mains connections; never use any other hose or pipes
already fitted.
• Make sure that hoses are not kinked, squashed or twisted.
• Fasten the ring nuts of the hoses firmly but without exerting too much pressure.
The machine is supplied without water in the boiler to avoid exposure to temperatures less than 0°C that could cause
irreparable damage.
Attention!
Legend:
1. Water tap (previously installed by the customer)
2. Motor pump (provided with the machine - when not built in)
3. Water softener (optional)
4. Drain siphon (previously installed by the customer)
5. High-pressure (supplied)
6. Water drain pipe (provided with the machine).
3
1
2
4
6
5
Fig. 6
