espresso coffee machines
LSI 022 - Rev. 00 - Ed. 12/2015
15
The appliance does not need an exhaust flue. For correct installation of the gas system, comply with the laws in force.
Attention!
In order to adapt the machine to a different type of gas, replace the nozzle as indicated
below and follow the instructions indicated in the gas table.

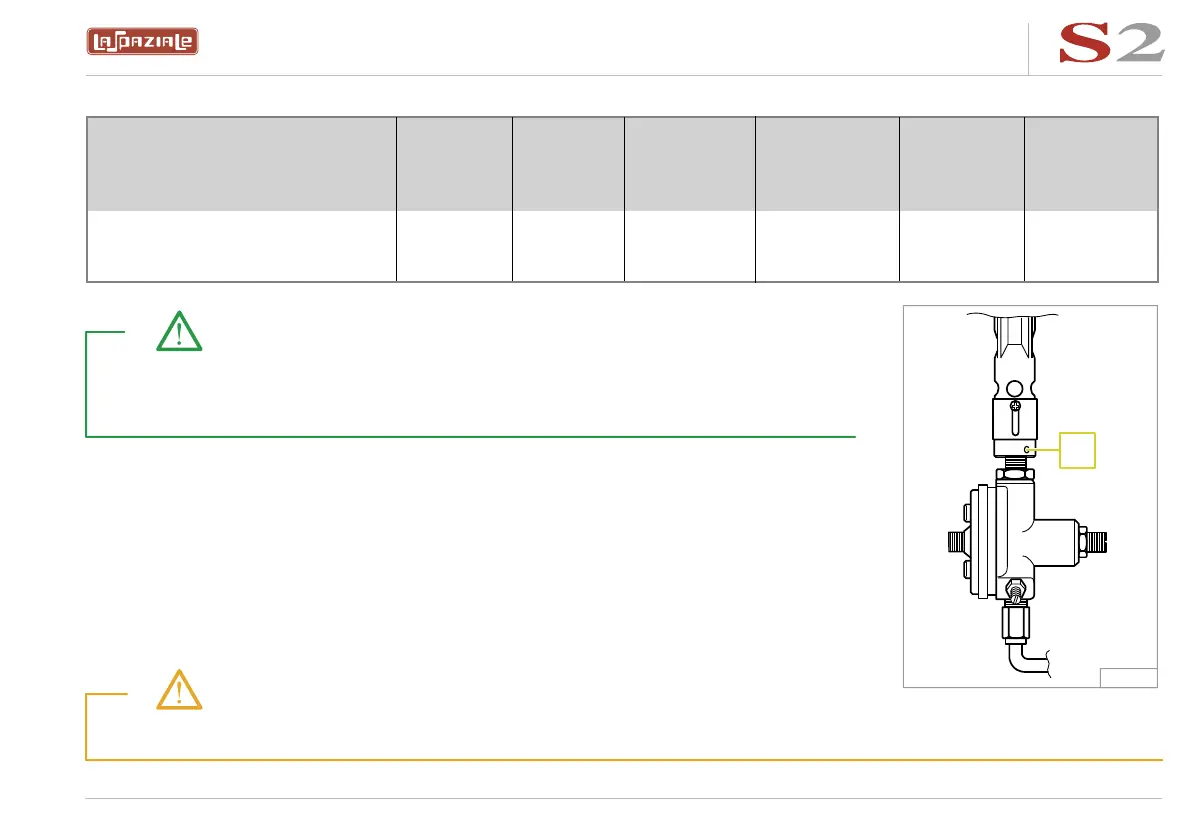

Loosen the attachment screw 1 (Fig. 8) to replace the gas nozzle; then remove the
connection towards the pressure switch in order to reach the gas nozzle.
Loosen the nozzle and replace it with a suitable one, according to the type of gas used.
Place the connection in its previous position and tighten the screw 1 (Fig. 8) again.
GAS TABLE
NOZZLE GAS TYPE
Ø HOLE
G30
Ø HOLE
G20
Rated
G30
gr / h
G20
l / h
POWER
RATING
Watt
POWER
RATING
Kcal / h
Mod. 2 groups
Mod. 3 groups
75 118 182 24 2500 2150
57 95 11 15 160 1376
Consumption
Rated
Consumption
The nozzle hole (Ø) is given in hundredths of a millimeter.
These values refer to the heating phase of the machine, i.e. when the gas pressure
switch is fully open (with maximum flame).
Take note!
1
Fig. 8
