LAUNCH TECH CRT511 - Copy ID by Activation

LAUNCHLAUNCH
36 37
www.x431.com +86 755 8455 7891 www.x431.com +86 755 8455 7891

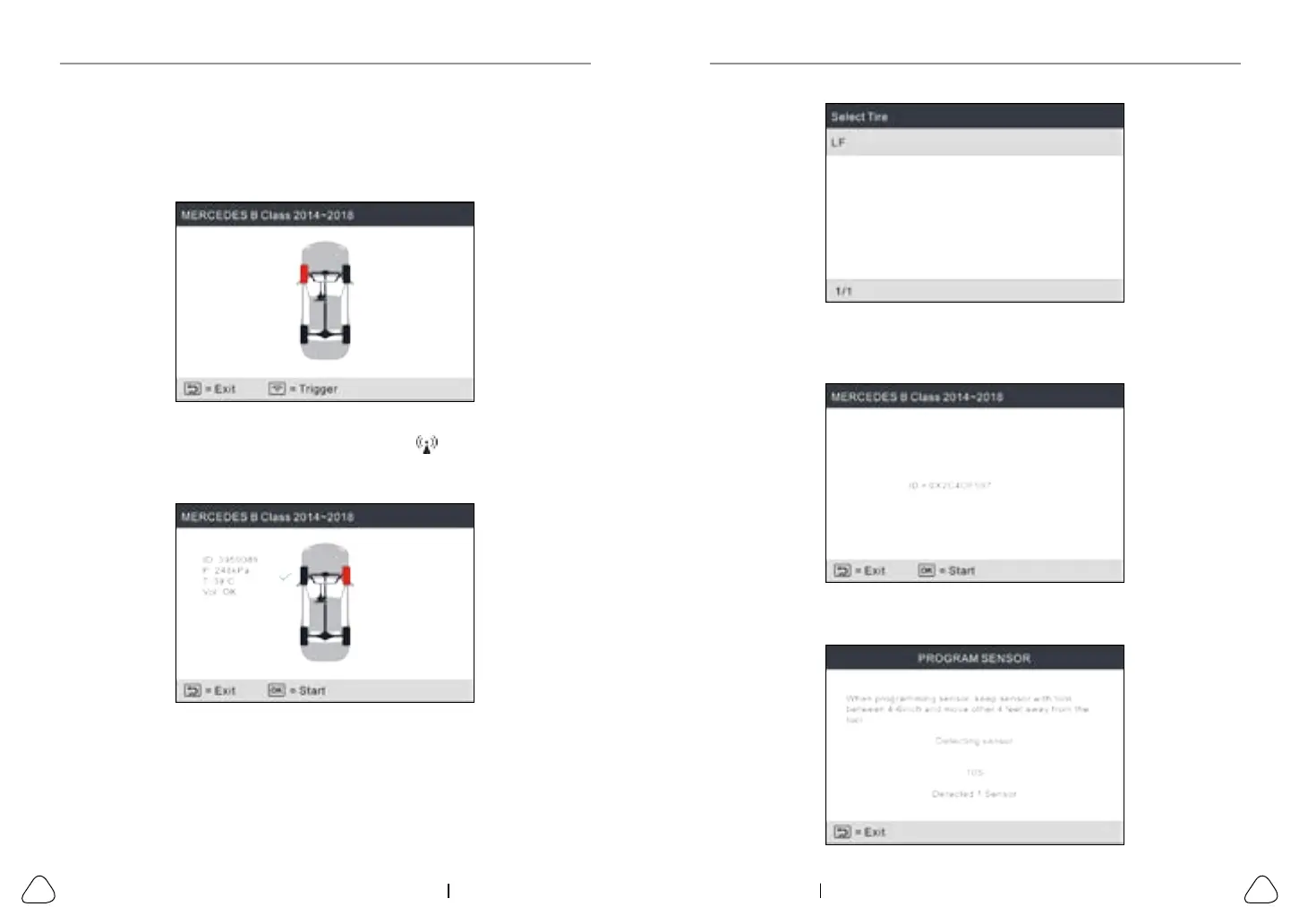

Figure 5-22
Select the specic wheel position and press the OK button to create a sensor
ID.
Figure 5-23
Press the OK button to start writing the new sensor ID to the LAUNCH-sensor.
5.2.3 Copy ID by activation
This function allows users to write in the retrieved original sensor data to the
LAUNCH-sensor. It is used after the original sensor is triggered.
Select COPY ID BY ACTIVATE and press the OK button to enter.
Figure 5-20
Select the specific wheel position and press the
button to trigger the
original sensor. After the information is retrieved, it will be displayed on the
screen.
Figure 5-21
Press the OK button to continue.
