LAUNCH Injector Cleaner & Tester User’s Manual
14
Installation and Adjustment

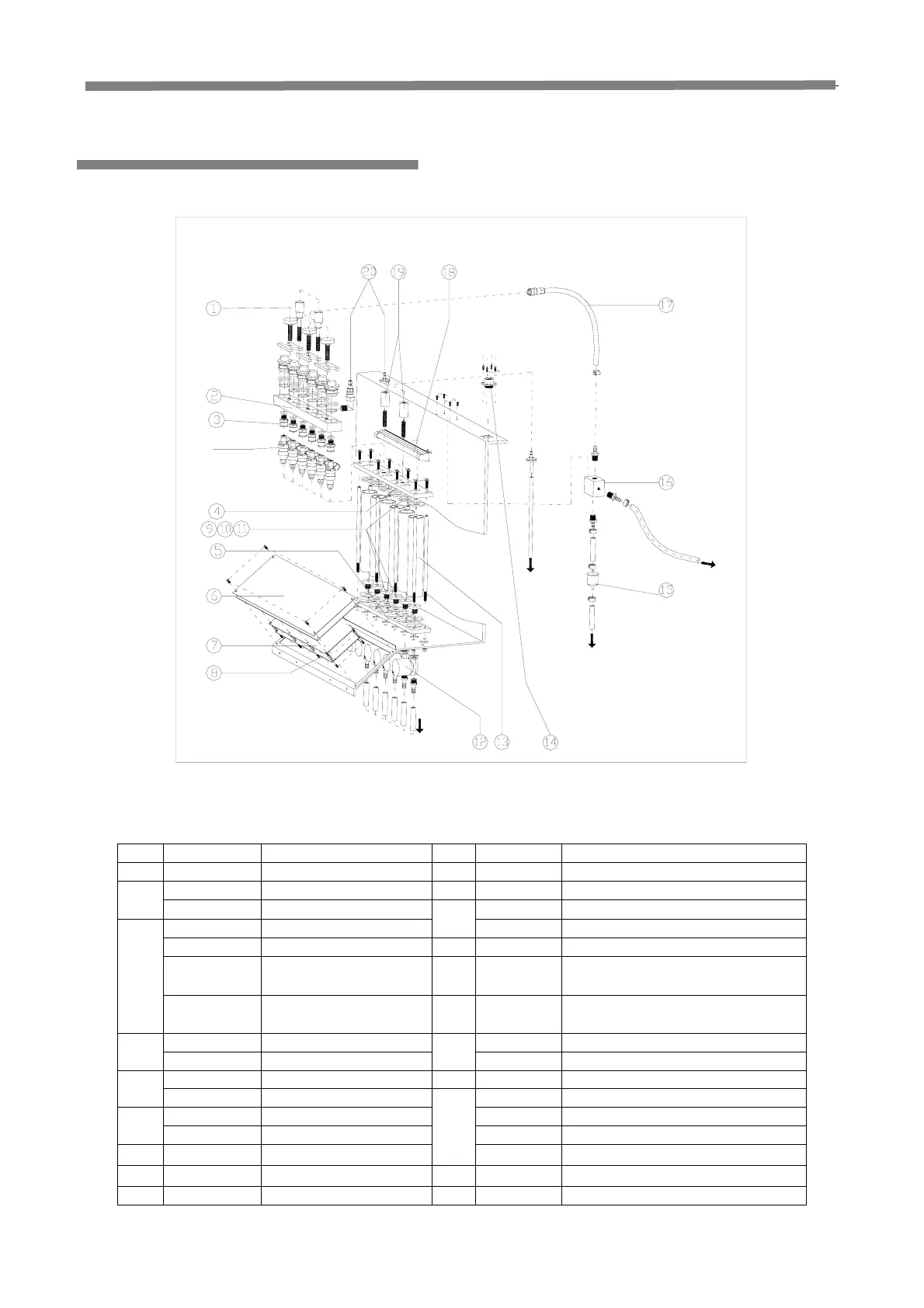

1. Parts List and Structure Diagram of Fuel Path
To fuel tank
Injector
To fuel pump
To fuel gauge
To fuel tank
Fig.14
Parts list of the fuel path
Item Part No. Part name Item Part No. Part name
1 103250008 Pressing screw 2 10 103200350 Inner hexagonal thread sleeve
103250002 6-cylinder distributor 11 104130017 Lower O-ring
2
103250029 8-cylinder fuel distributor
102240040 Solenoid valve,AC220V
103250013 Top-supply connector 1
12
102240041 Solenoid valve,AC110V
103250014 Top-supply connector 2 13 104110009 Glass tube
103250015
Swiss thread adaptor for
fuel top-supply injector
14 105020085 Navigator connector cable
3
103250016
Coarse thread adaptor for
fuel top-supply injector
15 103260003 Gasoline filter
103250003 6-cylinder upper plate 103240284 T-type blocker for CNC-602A
4
103250030 8-cylinder upper plate
16
103200705 T-type blocker for CNC-601A/801A
103250004 6-cylinder lower seat plate 17 202010019 Quickly connect hose
5
103250031 8-cylinder lower seat plate 102990017 Backlight for CNC-602A .AC110V
102040194 CNC-602A keys film 102990023 Backlight for CNC-602A .AC220V
6
107040104 CNC-601a/801a keys film 102990020 Backlight for CNC-601,A/801A AC110V
7 Z205010263 Driving board（PCA）
18
102990021 Backlight for CNC-601,A/801A AC220V
8 Z 205010084 Control board（PCA） 19
103250007 Knurled nut
9 104130016 Upper O-ring 20 103240050 Quick connector(male)
To Next Page
