Product Descriptions
3.1 Outline of Creader Professional 129i, Creader Professional 123i, Creader
Professional 233, Creader Professional 239, Millennium Master, Creader
Professional 129 EVO, Creader Professional 123X, Creader Professional 129X
16
9
8
7
2345

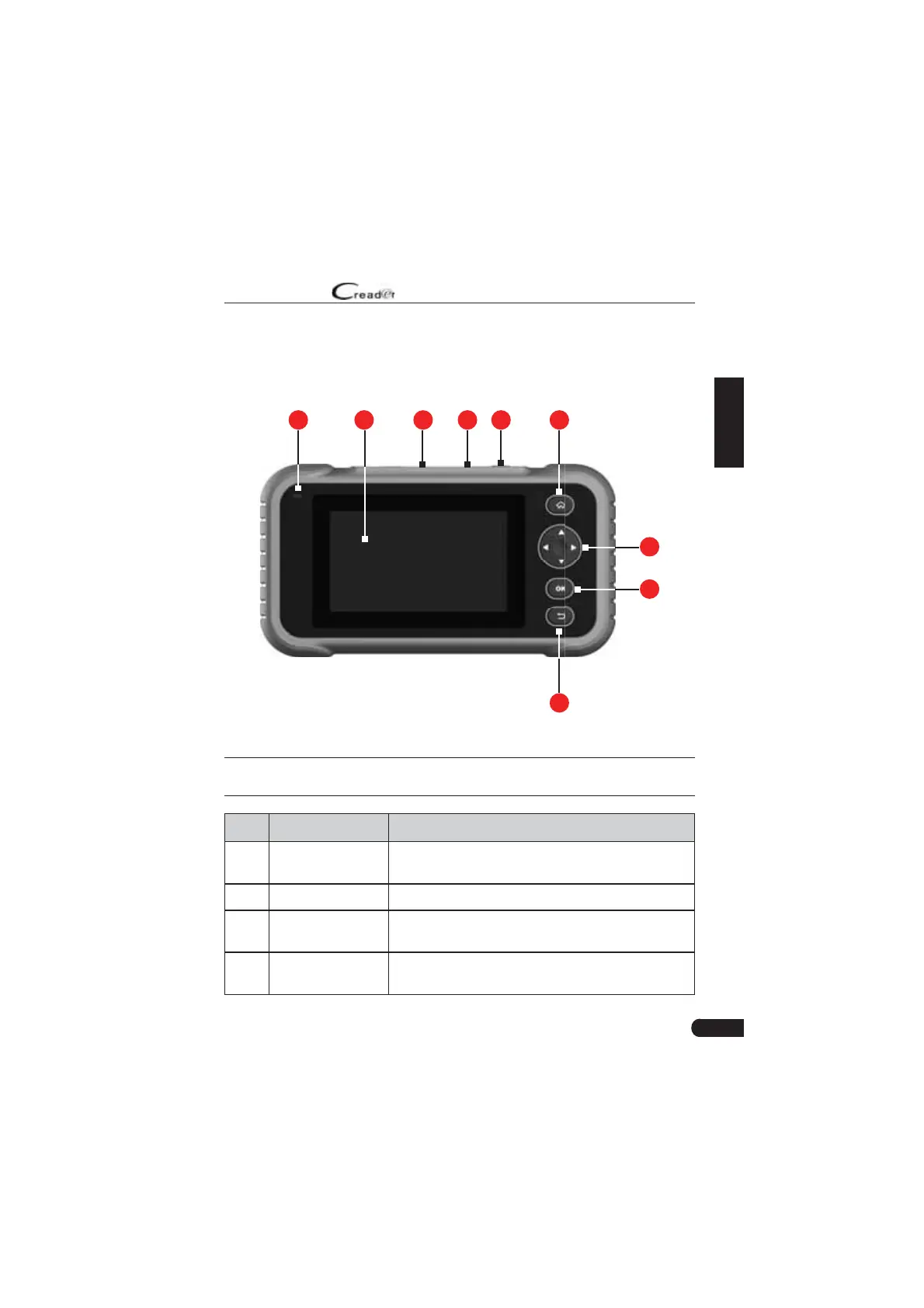

Figure 3-1
*Note: ƌeaĚeƌ Wƌofessional ϭϮϯi featuƌes the saŵe edžteƌnal appeaƌance as ƌeaĚeƌ
Wƌofessional ϭϮϵi
No. Name Descriptions
1 Charging LED
Red means Charging and Green means Fully
charged.
2 LCD Indicates test results.
3
DB-15 diagnostic
connector
To connect to vehicle's DLC (Data Link Connector)
via diagnostic cable.
4 5V Charging port
To connect to external DC power for charging the
tool.
