Launch TLT235、TLT240 Economical Two-post User’s Manual
3

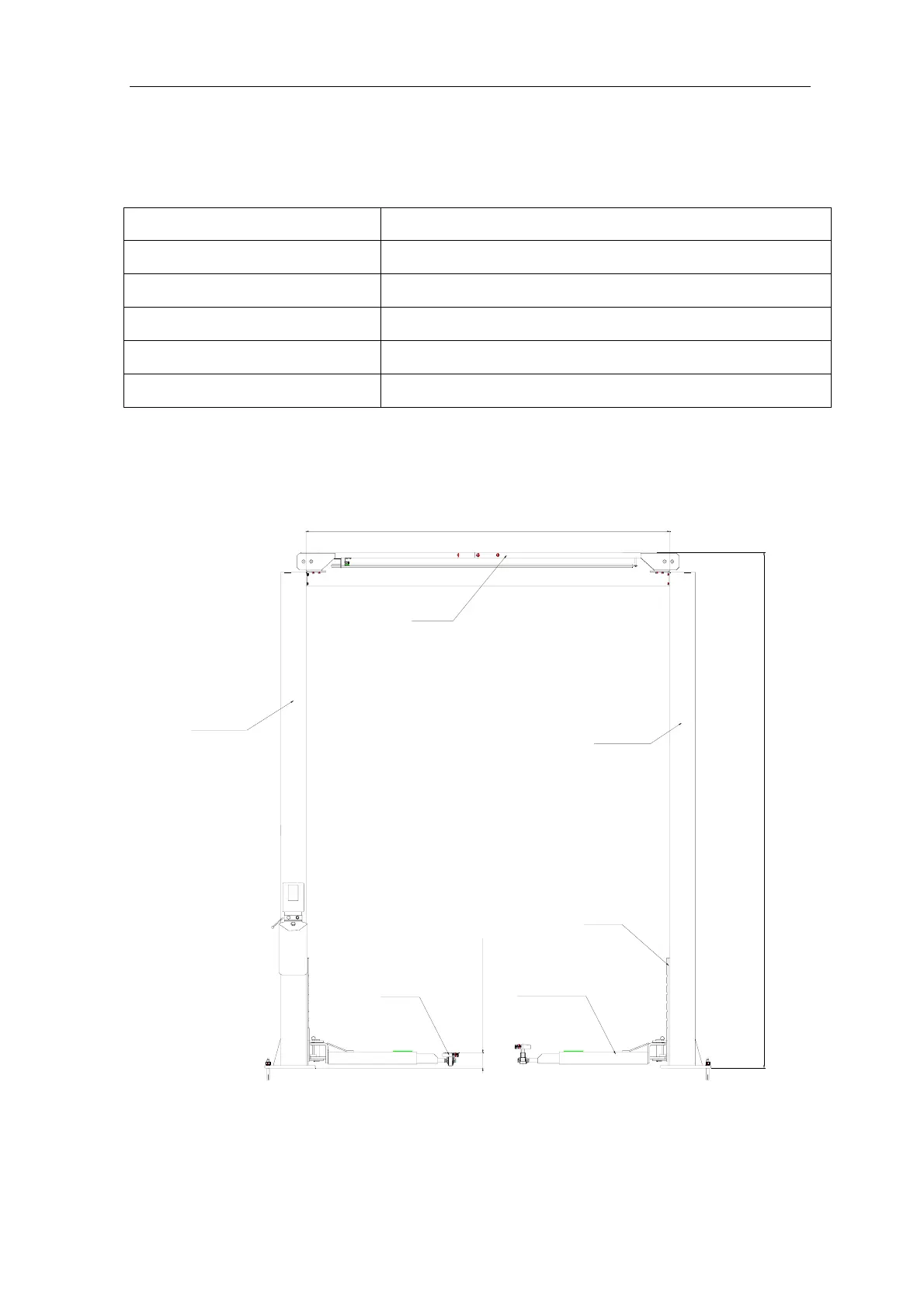

2. Lift Structure
2.1 Lift structures are shown as below：
Model Description
TLT235SC（U）clear-floor 2-post lift 3.5T Economical clear-floor 2-post lift (Fig.1a、Fig.2a、Fig.3a)
TLT235SC clear-floor 2-post lift
3.5T
Economical clear-floor 2-post lift (Fig.1b、Fig.2b、Fig.3b)
TLT240SC clear-floor 2-post lift
4.0T
Economical clear-floor 2-post lift (Fig.1b、Fig.2b、Fig.3b)
TLT235SB floor-plate 2-post lift
3.5T
Economical symmetric floor-plate 2-post lift (Fig.1c、Fig.2c)
TLT240SB floor-plate 2-post lift
4.0T
Economical symmetric floor-plate 2-post lift (Fig.1c、Fig.2c)
3840mm(151.2in)
110mm(4.3in)
Powerside
column
Top beam
Offside column
Lifting pad
Carriage
Arm assembly
2744mm(108in)
Fig.1a
