Launch TLT235 - Install the Swing Arm

Launch TLT235、TLT240 Economical Two-post User’s Manual
24

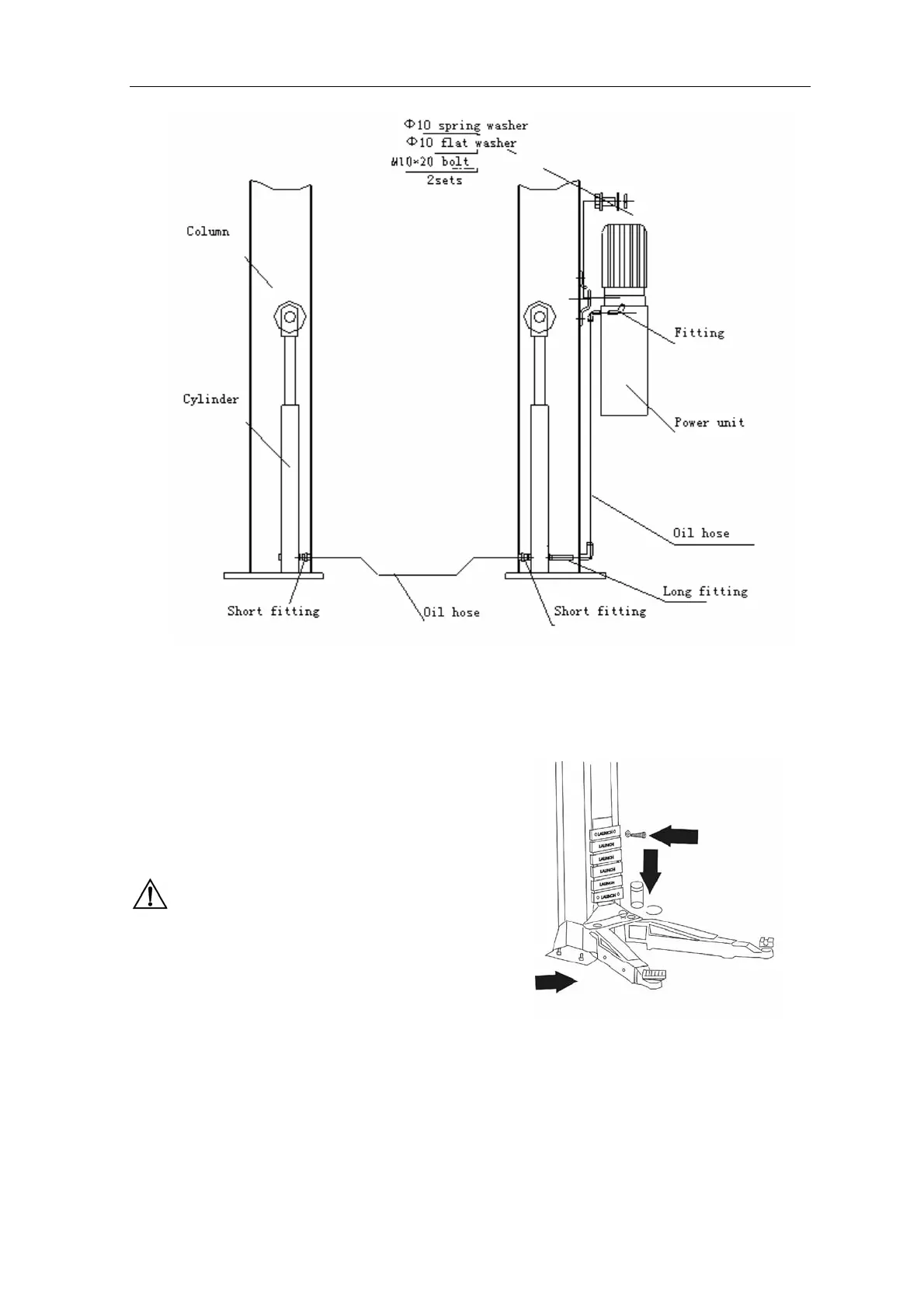

Fig. 14b
10.2.8 Install the swing arm
Install the swing arm as shown In Fig.15
Note:
Before use ,check if the positioning gear mechanism at the
end of arm fits, adjust the Screw s of fixed semi-gear for its
fitness.
During the installation, lubricate the moving parts of swing
arm and carriage if accessory, so that the swing arm can
move freely.
Fig 15
